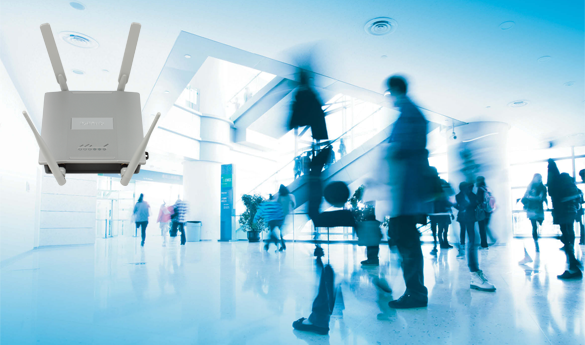

Wireless N600 Dual Band Concurrent PoE Access Point
DAP-2690
Click here to view latest available products
The DAP-2690 allows network administrators to deploy a highly manageable and extremely robust simultaneous dual band wireless network. All four antennas are detachable and can provide optimal wireless coverage in both 2.4GHz (802.11g and 802.11n) and 5GHz (802.11a and 802.11n) bands. Enclosed in a plenum-rated metal chassis, the DAP-2690 adheres to strict fire codes for placement in air passageways. For advanced installations, this new high-speed access point has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.
Enhanced Performance
The DAP-2690 delivers reliable wireless performance with maximum wireless signal rates of up to 300Mbps in both the 2.4GHz and 5GHz wireless band. This, coupled with support for Wi-Fi Multimedia (WMM) Quality of Service feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2690 to automatically prioritize traffic according to the level of interactive streaming, such as VoIP or video streaming. The QoS feature also provides a drop-down menu option to select customized priority rules. Additionally, the DAP-2690 supports load balance features to ensure maximum performance by limiting the maximum number of users per Access Point.
Security
To help maintain a secure wireless network, the DAP-2690 provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for RADIUS server backend and a built-in internal RADIUS server allowing to create user accounts in the AP. This access point also includes MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling to further protect your wireless network. The DAP-2690 includes support for up to 8 VLANs per band for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication.
Multiple Operation Modes
To maximize total return on investment, the DAP-2690 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting) and Wireless Client. With WDS support, network administrators can set up multiple DAP-2690s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. Also included are advanced features such as Load Balancing, which optimizes high network traffic volume, and redundancy for fail-safe wireless connectivity. Additionally, the DAP-2690 offers Spanning Tree Protocol support for greater efficiency and avoids broadcast storms when used in WDS mode.
Network Management
Network administrators have multiple options for managing the DAP-2690 including Web (HTTP), Secure Sockets Layer (SSL, which provides for a secure connection to the Internet), Secure Shell (SSH, which provides for a secure channel between local and remote computers) and Telnet. For advanced network management, administrators can use the D-Link Central WiFi Manager or D-View to configure and manage multiple access points from a single location. In addition to a streamlined management process, the Central WiFi Manager or D-View software provides network administrators with the means of verifying and conducting regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.
| Management Options : | Standalone|Array|Software Managed |
| Wi-Fi Bands : | Dual Band 2.4 and 5 GHz |
| AP Design : | Indoor|Detachable Antennas|PoE |
| Wi-Fi Type : | Wireless N600 |
| Antenna Type : | 4 x detachable|4 x detachable |
| Auto Channel Selection : | Yes |
| Dimensions (Size) : | 272 x 204 x 114 mm |
| LAN Interface : | 1 x Gigabit |
| Operation Modes : | AP|WDS (Site-to-Multisite)|WDS+AP|AP Client |
| PoE Injector Included : | Yes |
| PoE Standard : | PoE 802.3af |
| Security : | 802.1x|WPA/WPA2-EAP| WPA/WPA2-PSK|WEP|MAC filtering |
| Number of SSIDs : | 16 |
| Warranty : | Limited Lifetime |
| Indoor or Outdoor : | Indoor |
| Wi-Fi Configuration : | 2.4 GHz / 5 GHz Dual Band|Wireless N600 |
