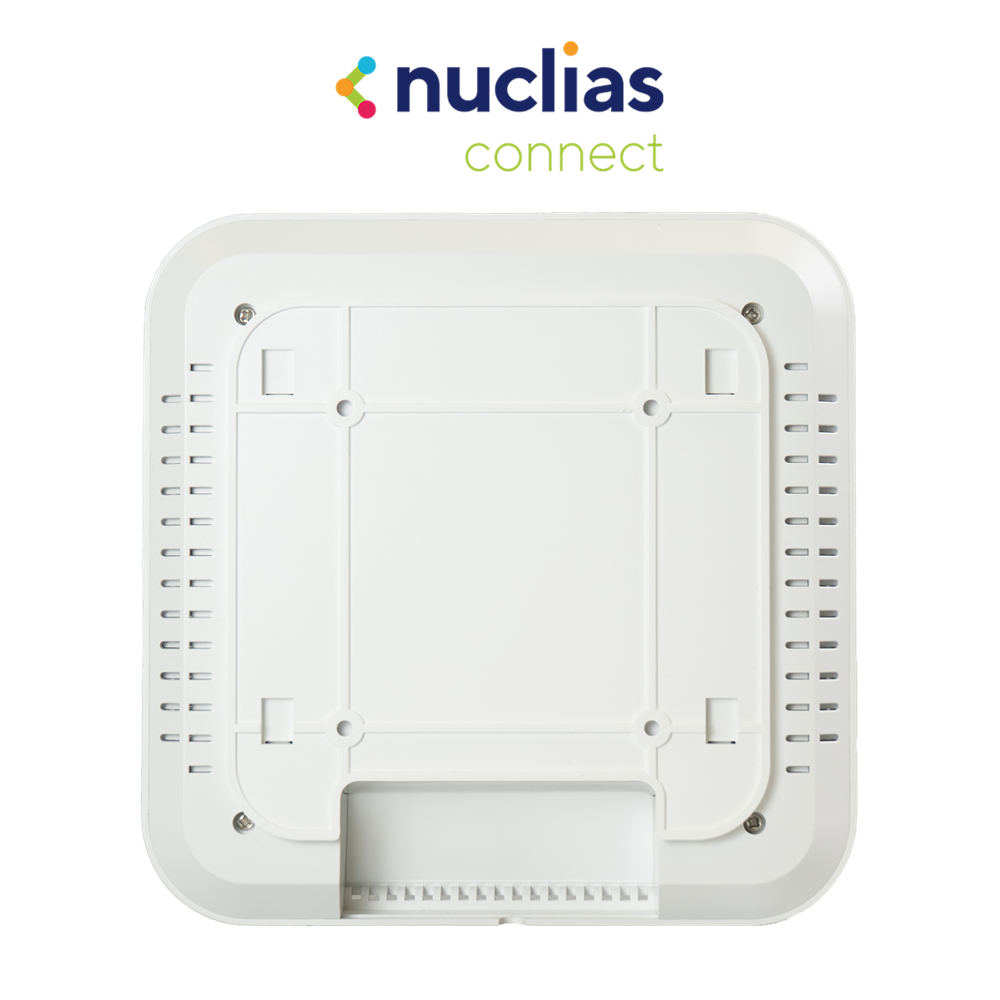

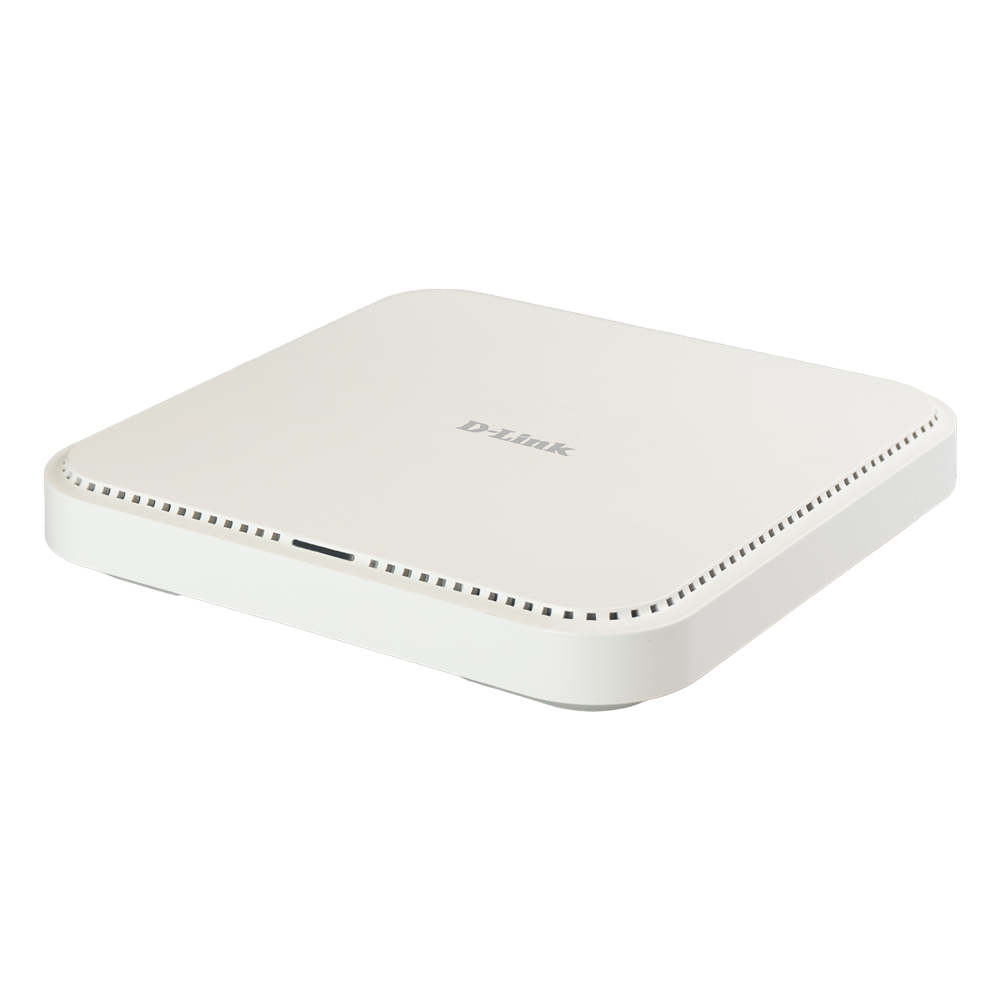

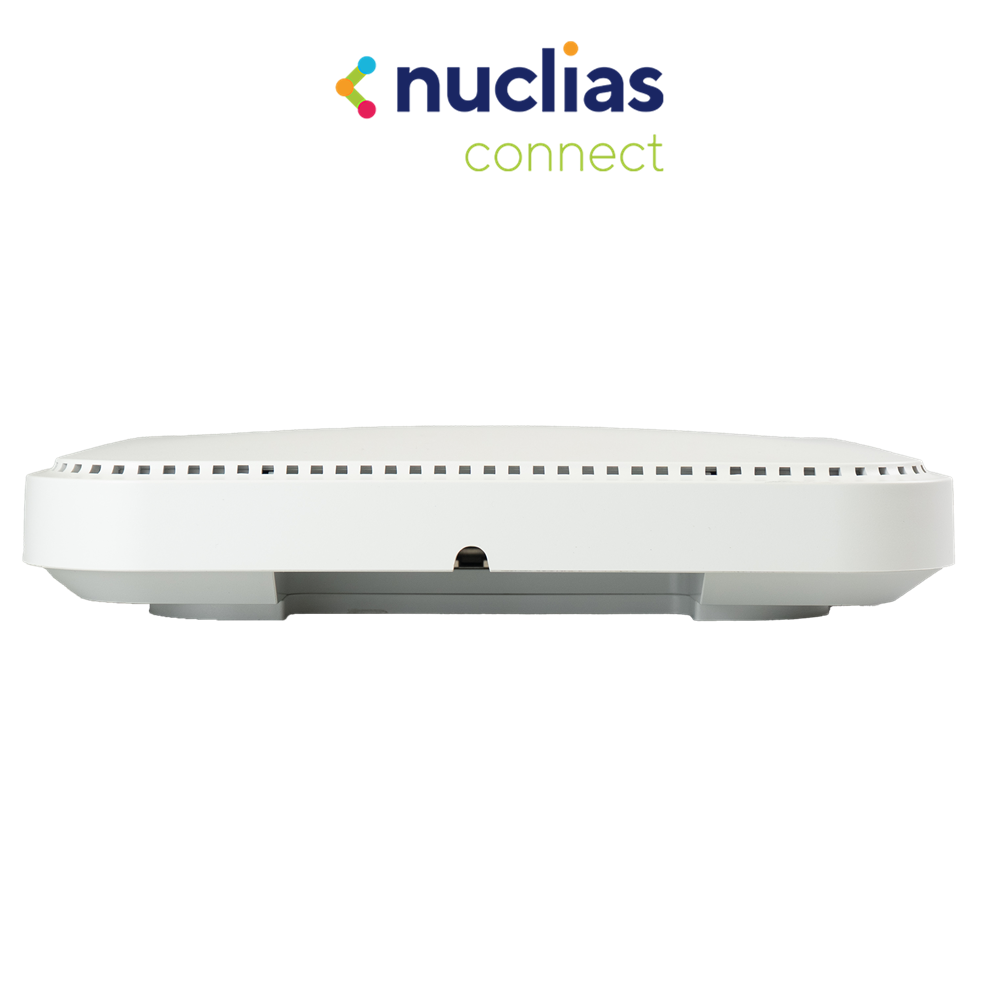

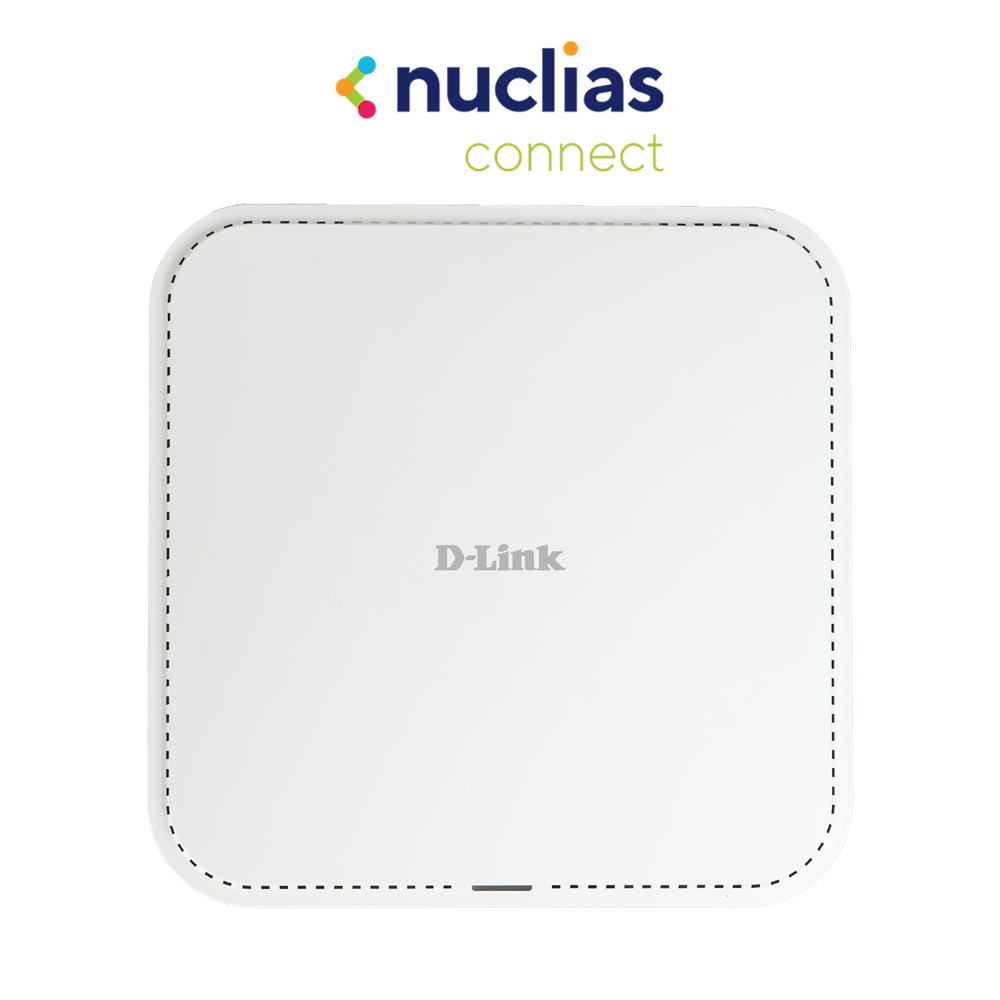

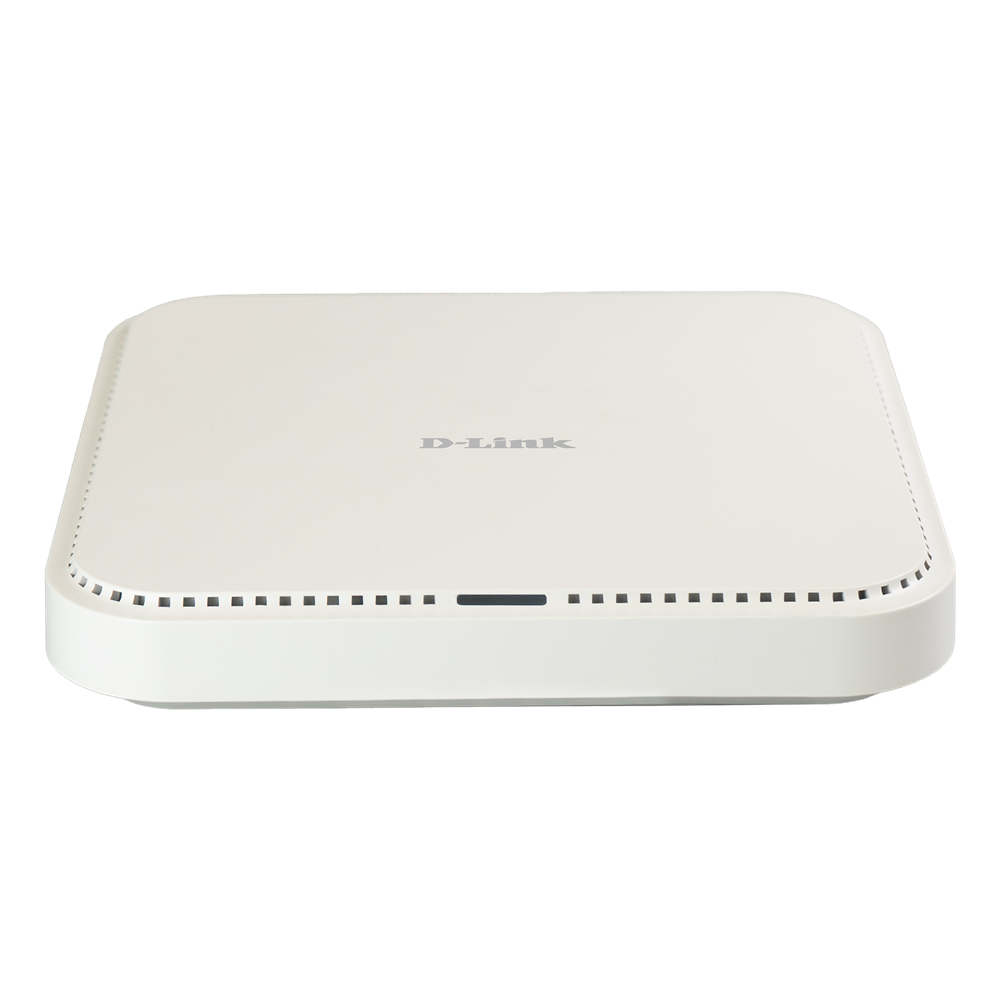

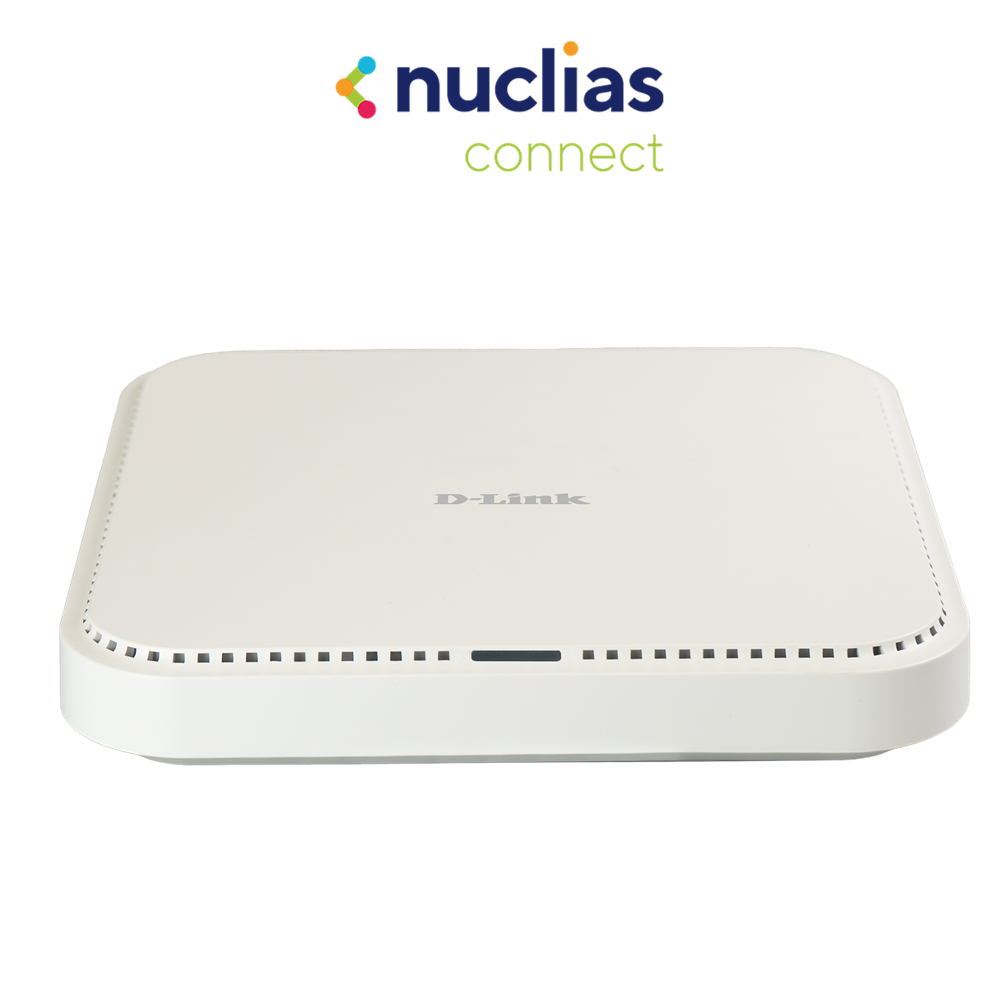

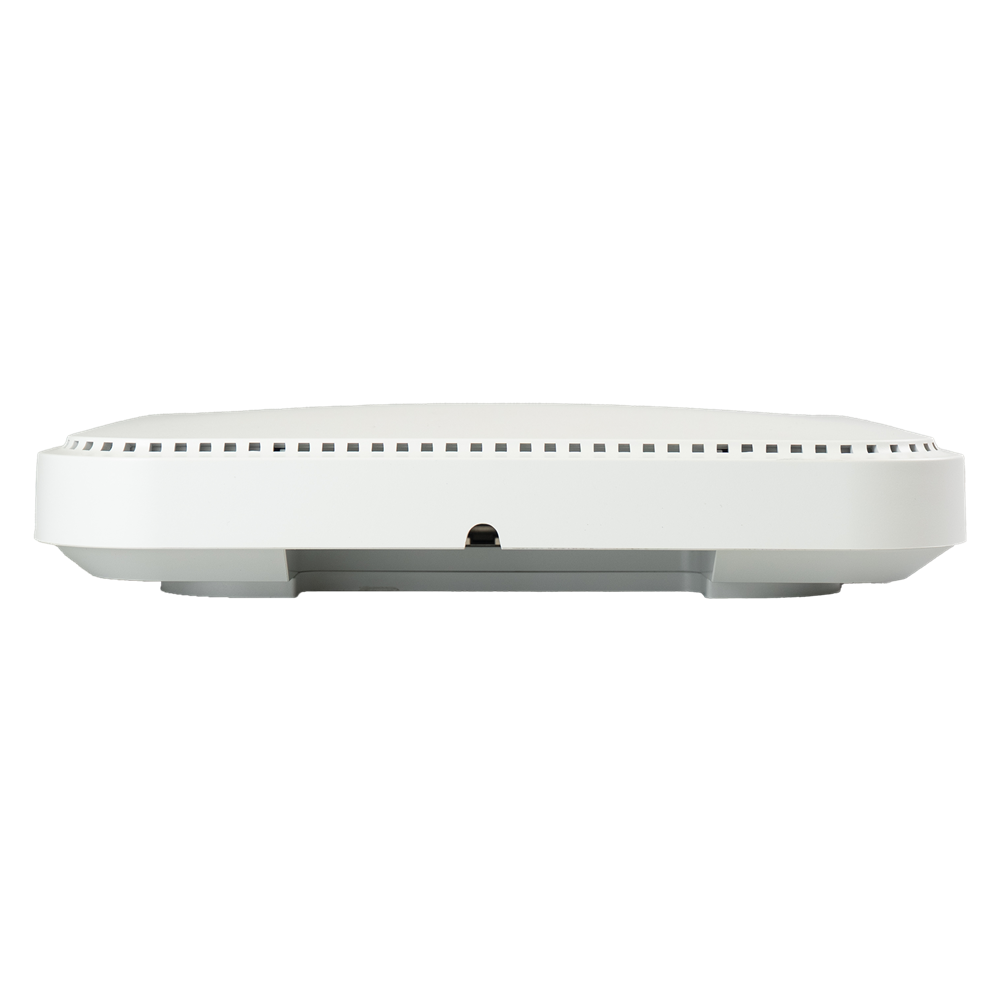

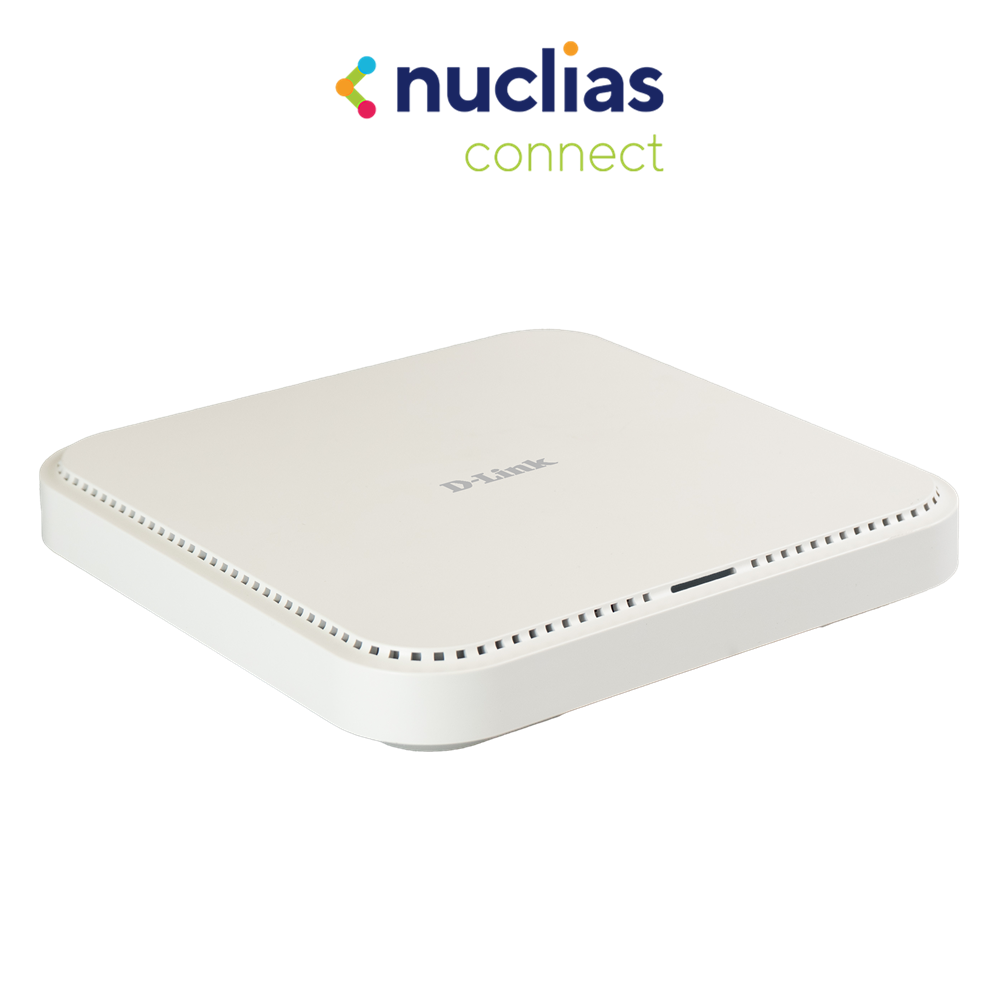

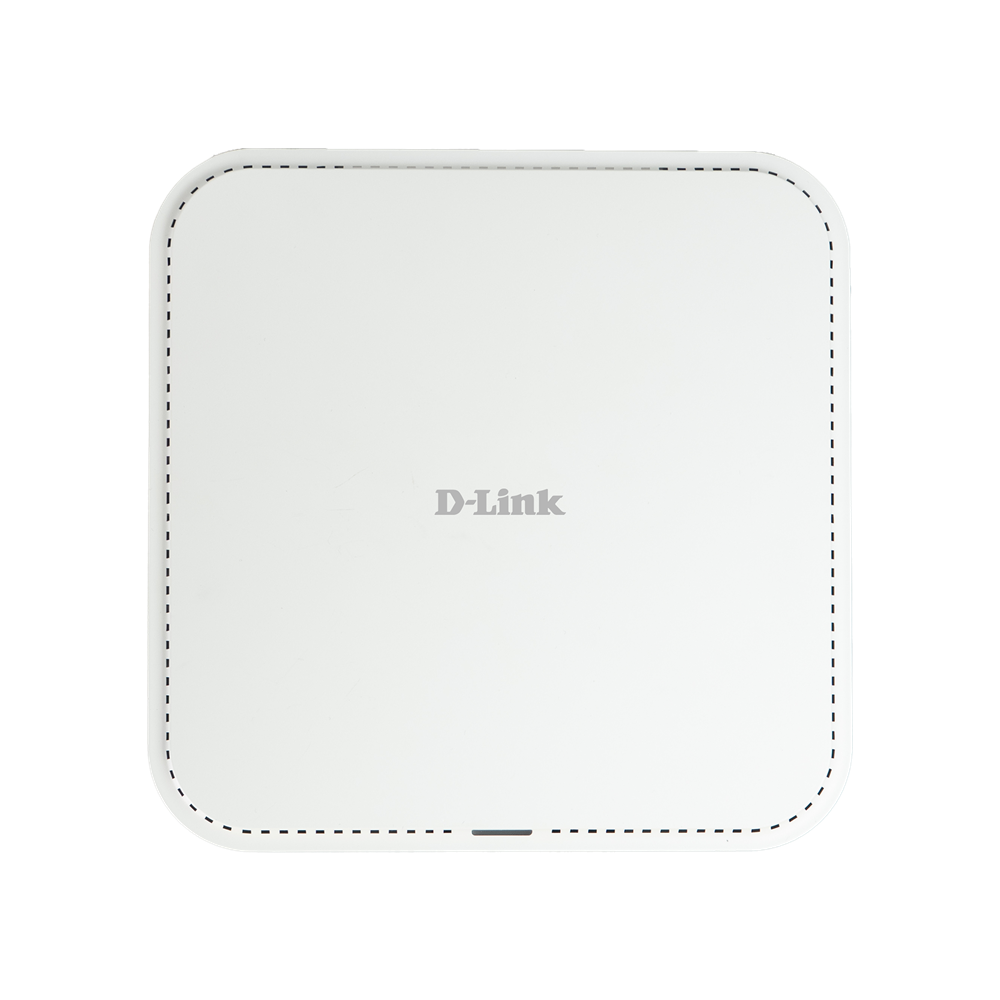

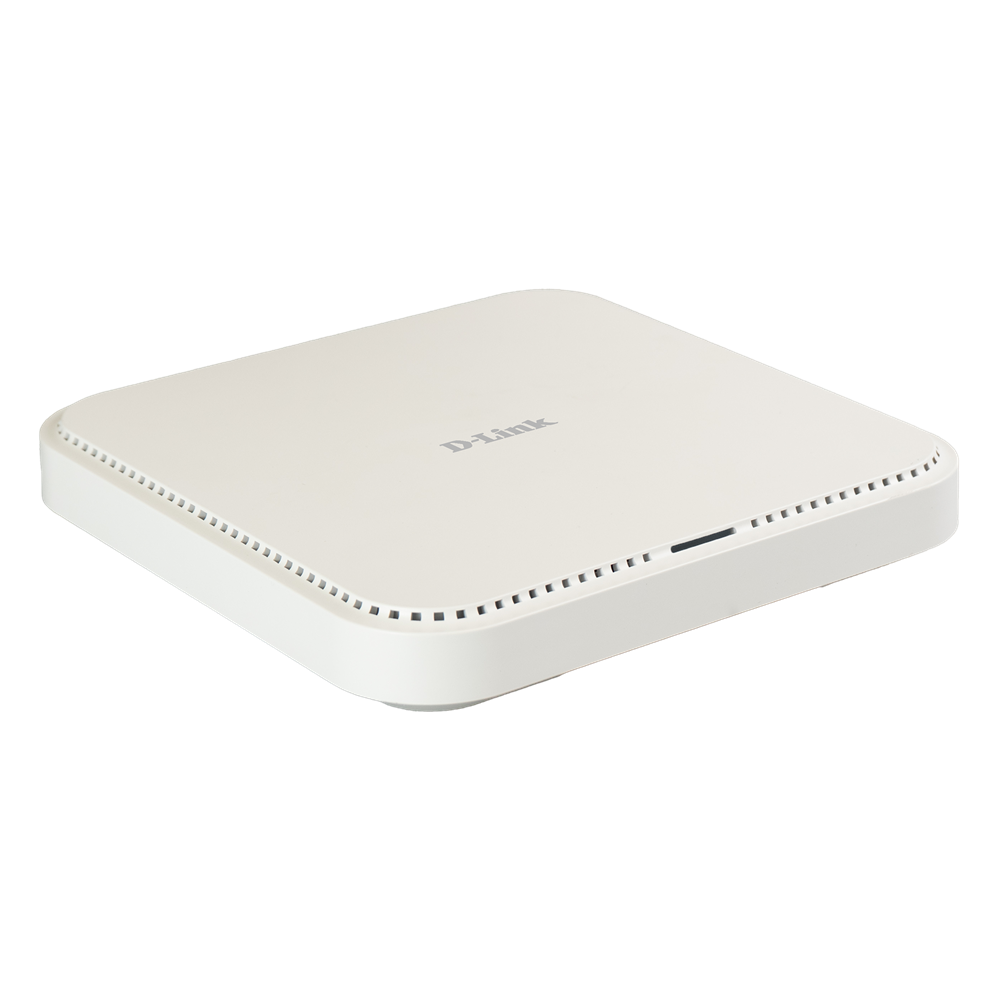

Wireless BE3600 Wi-Fi 7 PoE Access Point
DAP-E3620
- Wi-Fi 7 BE3600 dual-band high-speed connectivity

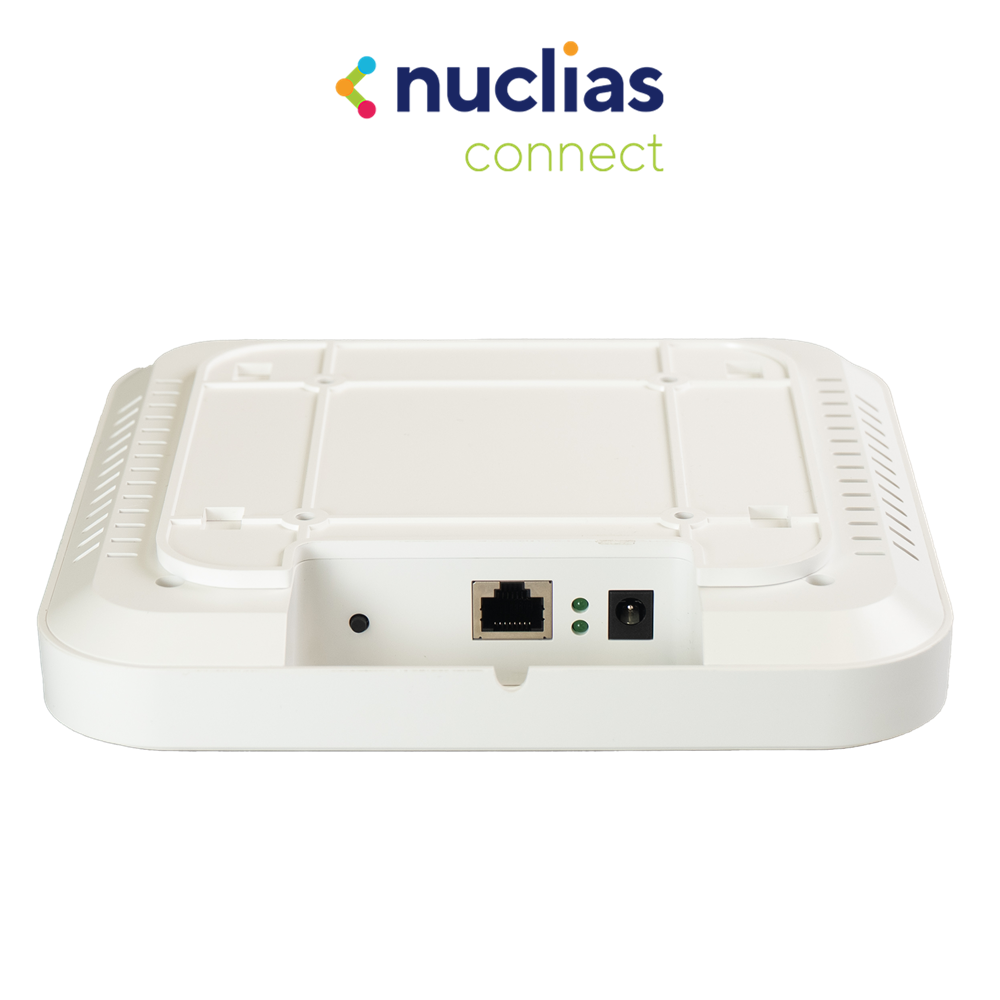

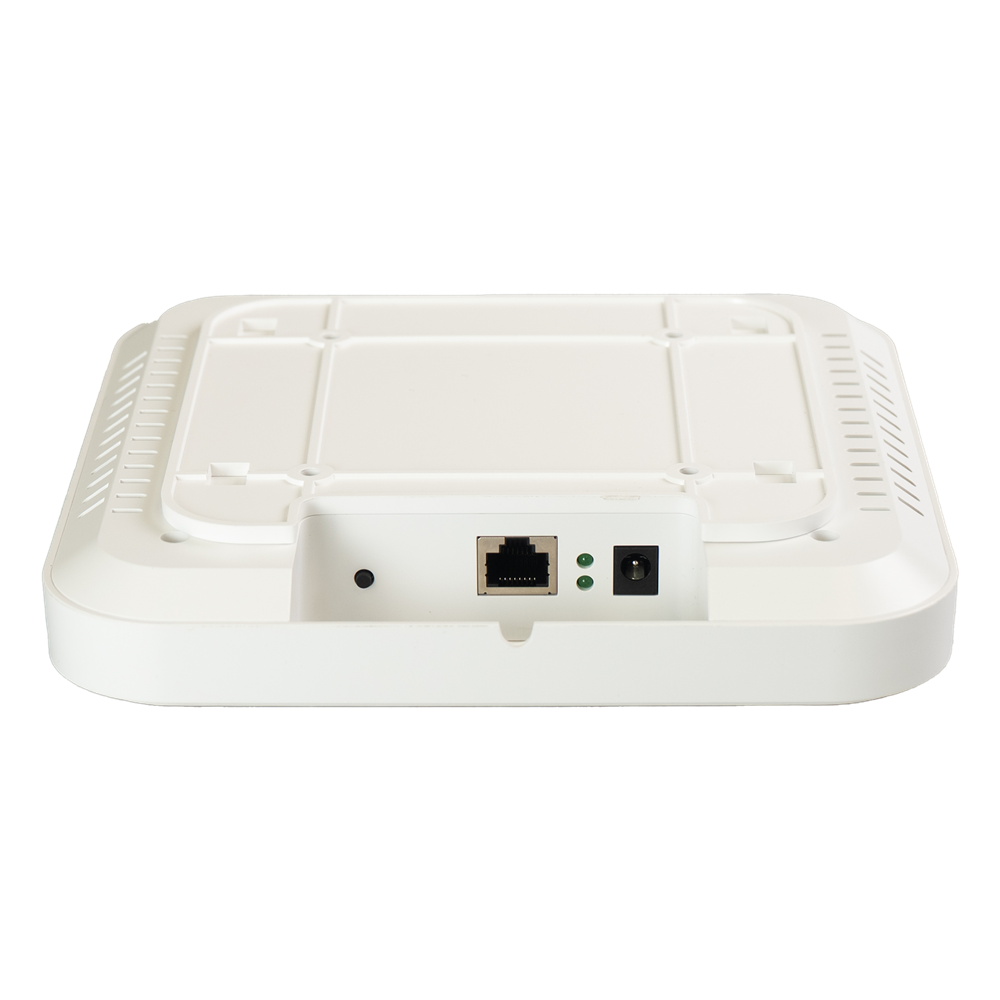

- 1 × 2.5 Gigabit Ethernet (PoE) LAN port
- Powered by 802.3at PoE or 12V DC adapter
- Multi-Link Operation (MLO) improves connection stability
- 4096-QAM for higher throughput and spectrum efficiency
- Flexible AP, WDS, and WDS+AP operating modes
- WPA3 Enterprise/Personal with 802.1X and MAC/IP ACL
- Customisable Captive Portal for guest access
- Multiple SSIDs with VLAN per SSID support
- Centrally managed via Nuclias Unity and Nuclias Connect Controllers
User Benefits
Wi-Fi 7 Technology
Dual-band Wi-Fi 7 (802.11be), BE3600 class (2×2 + 2×2), delivering lower latency and higher efficiency for multi-user traffic

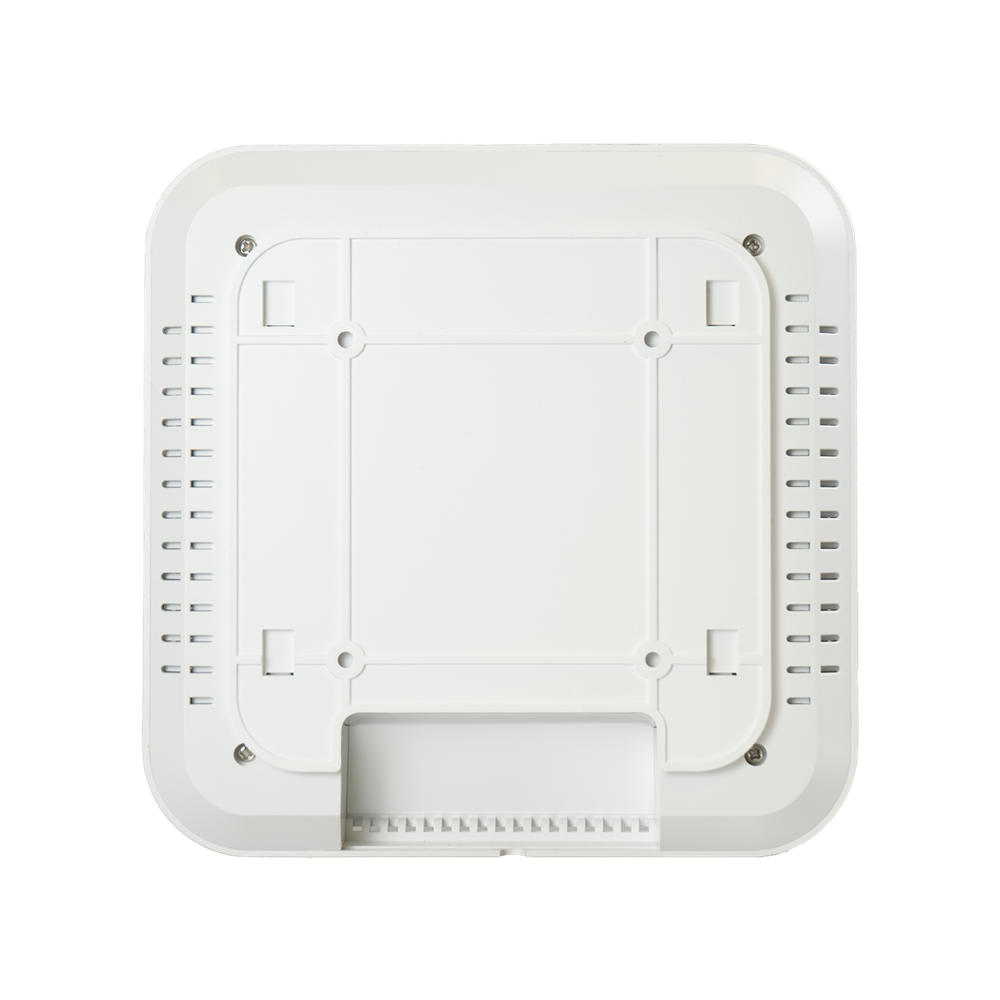

Easy Installation
Flexible ceiling or wall mounting for SMB deployments, while PoE+ simplifies cabling and accelerates installation
Customisable Captive Portal
Per-SSID captive portal support enables branded guest access, promotions, and flexible login workflow
VLAN per SSID
Each SSID to a dedicated VLAN for traffic segmentation, enabling simple separation of networks through policy-based control
Advanced Security
Supports WPA3-Personal/WPA3-Enterprise, 802.1X, and ACL-based access control to help reduce unauthorised access
Centralised Management​
Centralised management through Nuclias Unity or Nuclias hardware/software controllers (DNH-1000, DNC-5000)
Faster Wi-Fi 7 for Better Business Experiences
Dual-band Wi-Fi 7 (802.11be, BE3600 class) built for business environments — more speed, less latency, more devices.
- 5 GHz up to 2882 Mbps + 2.4 GHz up to 688 Mbps — combined throughput for demanding workloads, video collaboration, and dense device environments.
- Multi-Link Operation (MLO) uses both bands simultaneously, cutting latency and keeping connections stable when one band is congested.
- 4096-QAM enables faster data transmission for smoother streaming, gaming, and downloads.
- Designed for offices, hospitality, retail, and SMB deployments, it provides stable, scalable wireless performance for staff, guests, and connected devices— helping improve productivity, user experience, and operational efficiency.

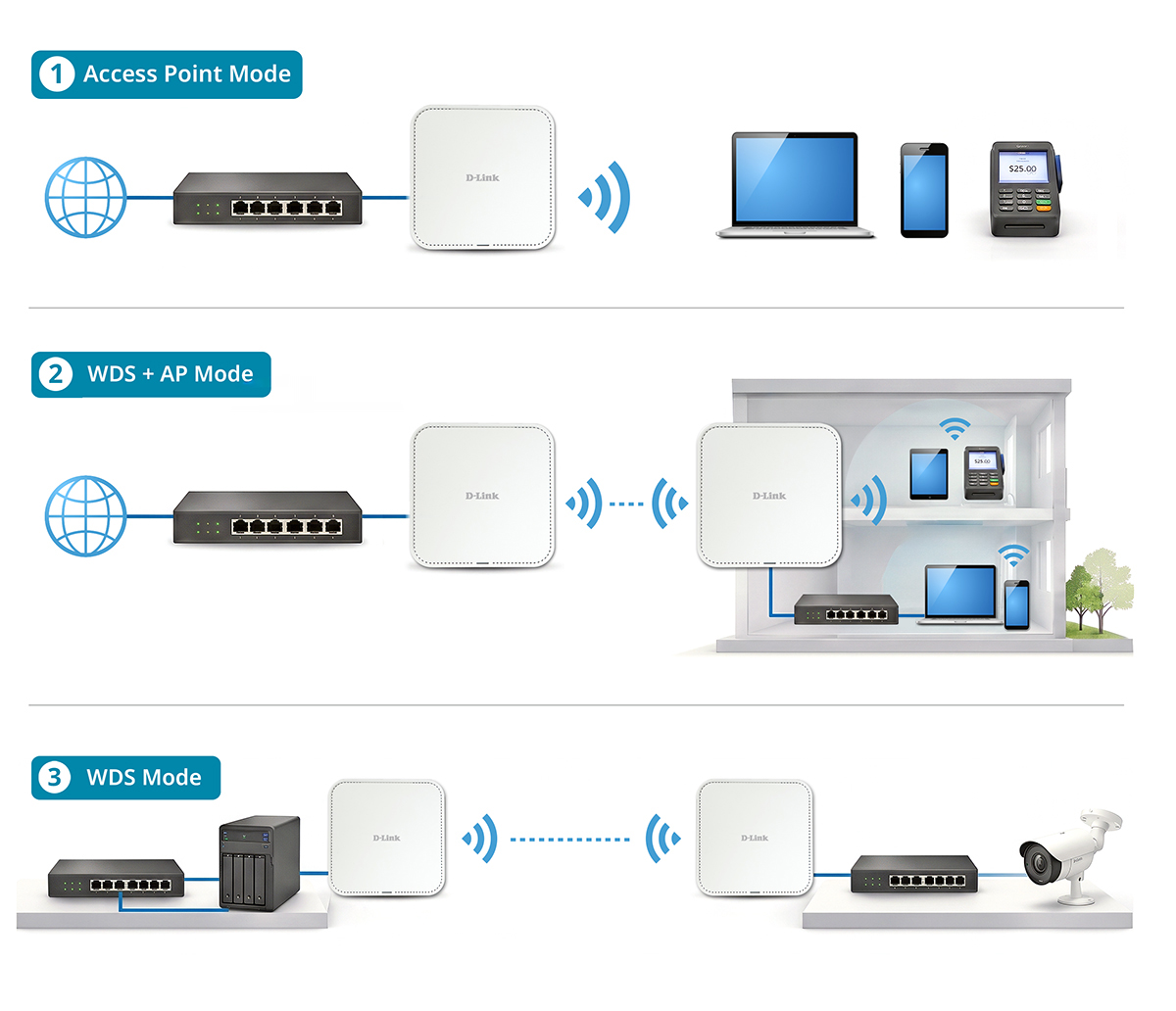

Flexible Deployment for Any Network Need
Deploy in the mode that fits your infrastructure. Switch between access point, wireless bridge, or hybrid coverage without additional hardware.
Access Point Mode (Wireless bridging + local coverage)
Standard Wi-Fi coverage for wired networks — offices, classrooms, and public hotspots.
WDS with Access Point Mode (Wireless bridging + local coverage)
Extends coverage wirelessly while broadcasting a local SSID — connects floors or buildings without new cabling.
WDS Mode (No AP Broadcasting)
Pure wireless backhaul between two wired networks — no local SSID. Ideal for linking switches, cameras, or servers across sites.

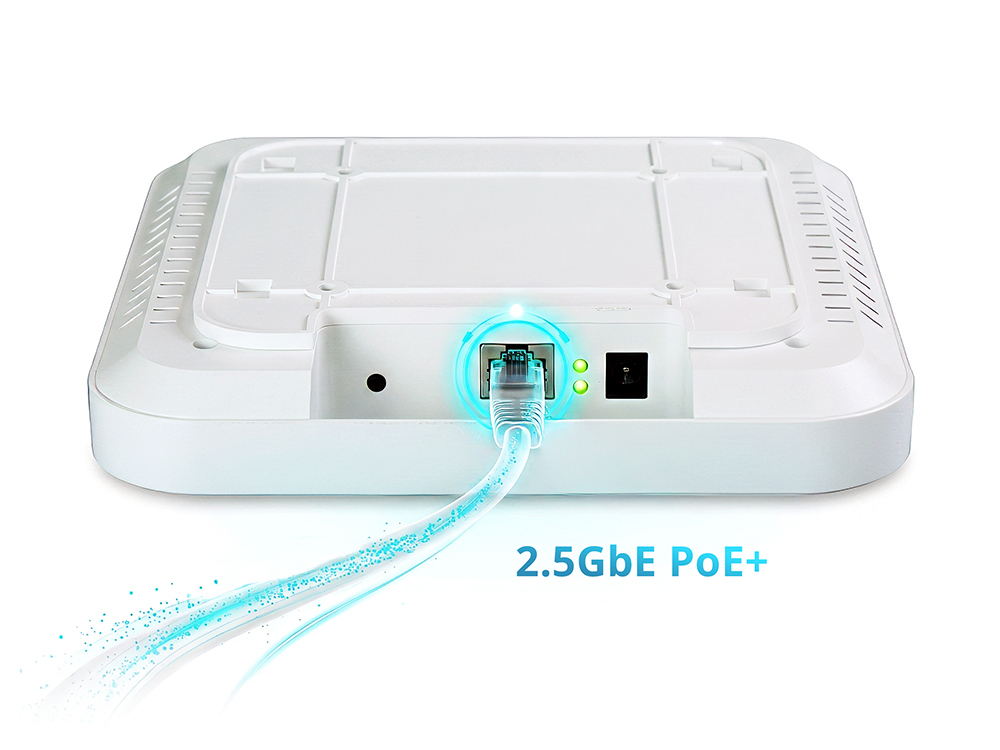

High-Speed 2.5 GbE PoE+
Uplink — No Wired Bottleneck
- Full Wi-Fi 7 throughput — the 2.5 GbE uplink matches wireless capacity so your wired network never limits wireless performance.
- Single cable for power and data — IEEE 802.3at PoE+ eliminates the need for a separate power adapter, simplifying installation anywhere a switch port can reach.
Simplified Centralised Network Management
The DAP-E3620 integrates seamlessly with D-Link Nuclias Unity and Nuclias hardware and software controllers, including the DNH-1000 and DNC-5000, to streamline Wi-Fi management for growing business networks.
- Provision, update, and troubleshoot remotely — enforce SSID and VLAN policies, push firmware, and health monitoring without visiting each site.
- Scale from one AP to multi-site deployments through a single intuitive dashboard with consistent performance and security.
Applications
SME
Department Store
University

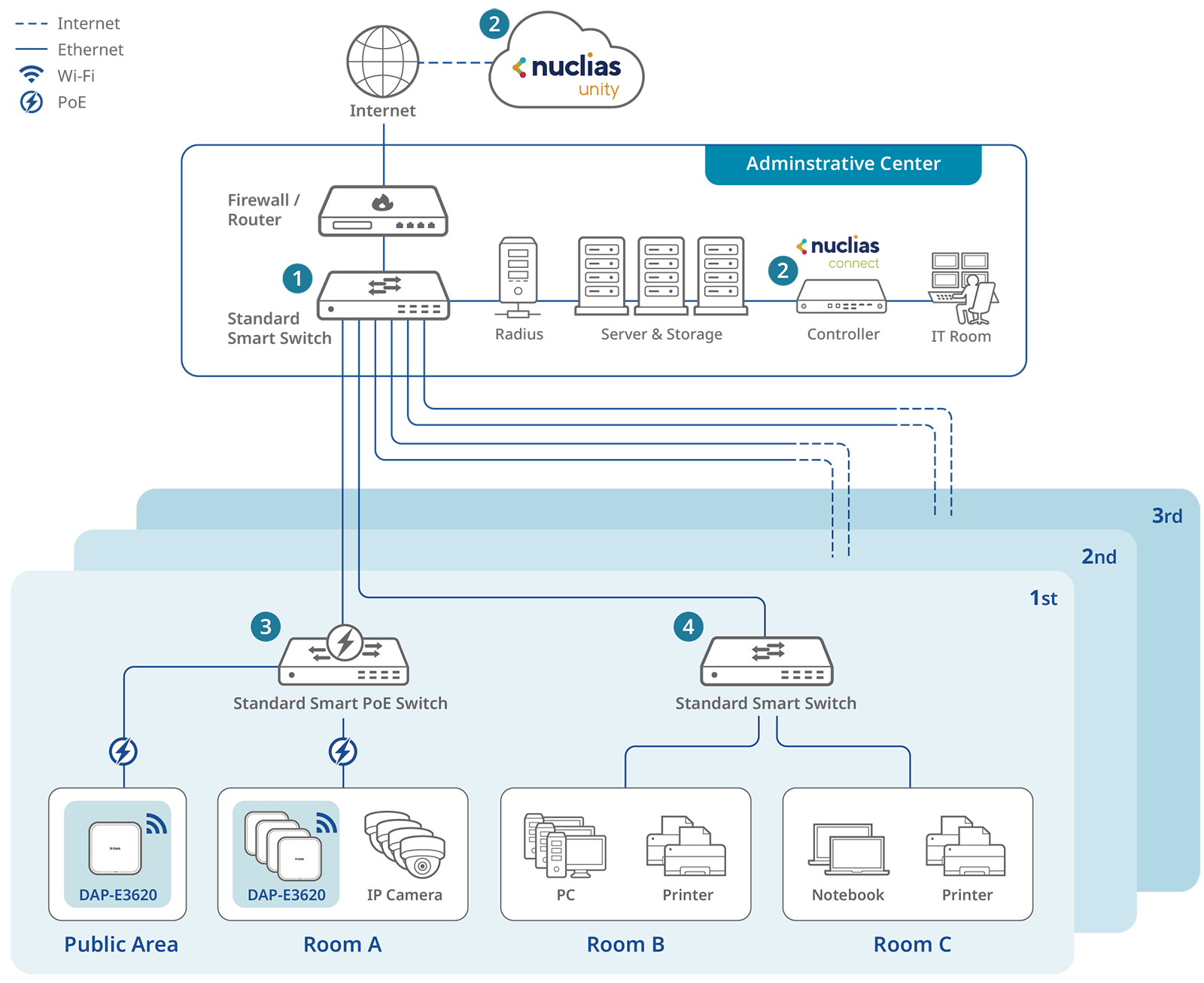

SME
User benefits:
- Wi-Fi 7 BE3600 speed for higher productivity
- Smoother video calls and real-time collaboration
- Handles more connected devices with stable performance
- Lower latency and better interference resilience in busy areas
- Future-ready network for Wi-Fi 7 clients
- Stronger security with WPA3 and SSID/VLAN segmentation
Learn more:
- Standard Smart Switch: DXS-1210-12SC
- Management Platform: DNH-1000
- Standard Smart PoE Switch: DMS-1250-18P
- Management Platform: DGS-1250-28X

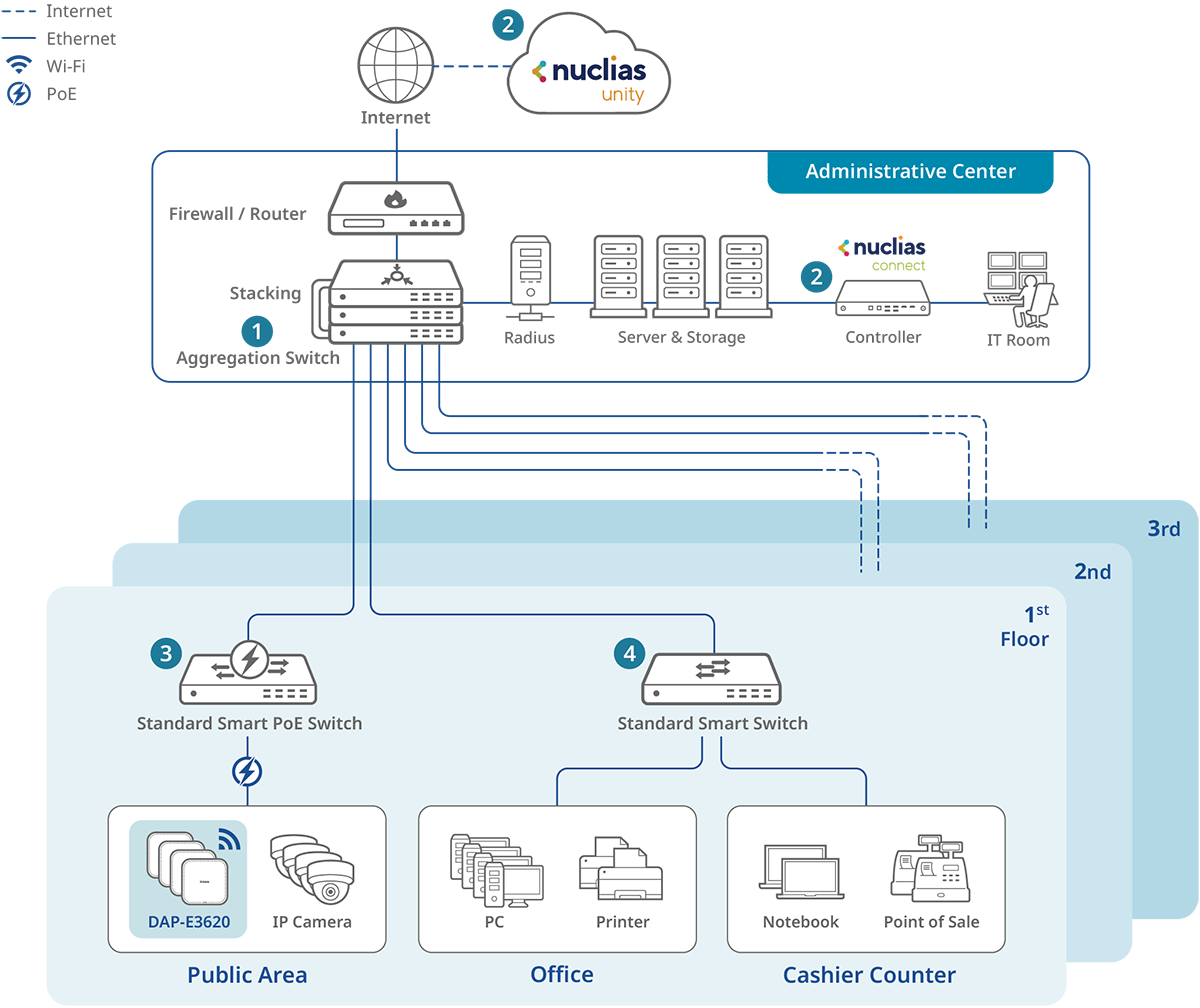

Department Store
User benefits:
- Stable connectivity in areas
- Smooth mobile payments and POS transactions
- Supports digital signage, apps, and location-based services
- Consistent coverage across floors with reduced interference
- Secure guest and internal networks with WPA3 + SSID/VLAN segmentation
Learn more:
- Aggregation Switch: DXS-3130-32S
- Management Platform: DNH-1000
- Standard Smart PoE Switch: DMS-1250-28P
- Stackable Smart Switch: DGS-1250-52X
University
User benefits:
- High-speed campus-wide Wi-Fi for students, faculty, and visitors
- Reliable performance in areas (lecture halls, libraries, dorms)
- Low-latency experience for e-learning, cloud apps, and research workloads
- Fast roaming across buildings for uninterrupted study sessions
- Stable connectivity for exams and peak-hour traffic with more simultaneous users
- Secure access for all user groups with WPA3 + SSID/VLAN segmentation
Learn more:
- Core Switch: DXS-3610-54S
- Management Platform: Nuclias Unity or Nuclias Hyper
- Aggregation Switch: DXS-3130-32S
- Standard Smart PoE Switch: DMS-1250-28P
| Management Options : | Standalone|Software Managed|Controller Managed |
| Wi-Fi Bands : | Dual Band 2.4 and 5 GHz |
| AP Design : | Indoor|Built-in Antennas|PoE+ |
| Central Management : | Nuclias Connect|Nuclias Connect Controller |
| Wi-Fi Type : | Wireless BE3600 |
| Antenna Type : | Built-in |
| Auto Channel Selection : | Yes |
| Dimensions (Size) : | 186 x 186 x 37 mm |
| LAN Interface : | 1 x 2.5Gb |
| Operation Modes : | AP|WDS (Site-to-Multisite)|WDS+AP |
| PoE Standard : | PoE+ 802.3at |
| Security : | 802.1x|WPA/WPA2-EAP| WPA/WPA2-PSK|WEP|MAC filtering|WPA3 |
| Number of SSIDs : | 16 |
| Warranty : | Limited Lifetime |
| Indoor or Outdoor : | Indoor Deployment |
| Wi-Fi Configuration : | 2.4 GHz / 5 GHz Dual Band|Wi-Fi 7|Wireless BE3600 |
