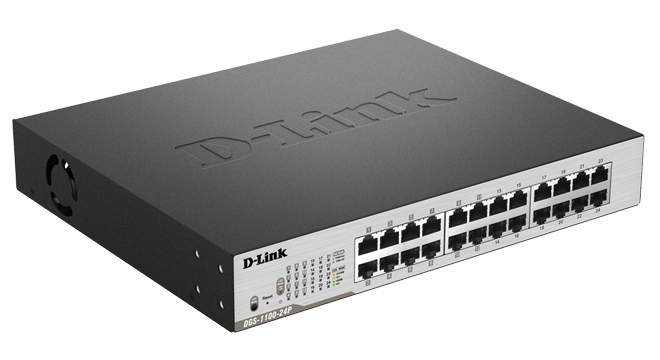

24-Port Gigabit Smart Managed PoE Switch with 12 PoE ports

DGS-1100-24P

This product is not available for purchase and has been discontinued.

Click here to view latest available products
Business Solutions / Switching / Smart Switches / 24-Port Gigabit Smart Managed PoE Switch with 12 PoE ports

D-Link's DGS-1100-24P is the newest addition to Smart Managed Switches featuring D-Link Green Technology. The DGS-1100-24P offers 24 10/100/1000 Mbps ports with twelve ports offering PoE technology. Switch management can be performed through a web management interface or through the SmartConsole Utility. The DGS-1100-24P provides an affordable solution for Small and Medium Business, and for communities without IT staff. They are also suitable for enterprise deployment, such as in branch offices and meeting rooms that require simple network management.

Surveillance VLAN and Bandwidth Control

The DGS-1100-24P supports Surveillance VLAN, which is best suited for video surveillance deployment. Surveillance VLAN is a new, industry leading technology that consolidates data and surveillance video transmission through a single DGS-1100 switch, thus sparing businesses the expense of dedicated hardware and facilities. Surveillance VLAN also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might have high priority.

PoE Support

The DGS-1100-24P delivers Power over Ethernet (PoE) capabilities on 12 ports, making deployment with IP cameras, VoIP phones, and access points much easier. Power cords will become a thing of the past, as the DGS-1100-24P complies with the 802.3af (PoE) and 802.3at (PoE+) standards and supports a 100 Watt power budget. The 10/100/1000Base-T Ethernet ports mean that even high-quality video is no problem.

Easy to deploy

The DGS-1100 Smart Managed Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole allows customers to discover multiple D-Link Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user's PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.

Easy Troubleshooting

Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and also determine the type of cable error. In addition, Static MAC can disable Auto Learning on selected ports and can set static MAC addresses for designated ports, helping administrators limit network access to authorized devices only.

D-Link Green and Power Saving

Compliant with IEEE802.3az Energy Efficient Ethernet, this switch consumes less energy by cutting down on power consumption when the traffic volume is low. By deploying EEE devices, users can cut operating costs and even cut down on necessary cooling equipment. The DGS-1100 Series also features D-Link Green Technology that helps in automatically saving energy. This switch can automatically detect the length of the connected cables and can adjust power usage for shorter cable connections. In addition, this switch monitors link status of every port and drastically reduces power consumption when a port is without a link.

HIGHLIGHTS
  • 12 Gigabit PoE ports
  • Auto Voice and Surveillance VLANs
  • D-Link Green power saving features
  • User friendly Web interface
  • Advanced networking features for SMB

Switch Type :Layer 2
Type of Port Required :Gigabit Copper
Number of Ports :24 - 28
PoE Type Required :PoE|PoE+
High Speed Stacking :No
Design :Desktop|Rackmountable
1000Base-T ports :24 Ports
PoE ports :12 Ports
PoE Budget :100 Watts
Switching Capacity :48 Gbps
QoS :Yes
Spanning Tree Protocol :Yes
Link Aggregation :Yes
VLAN :128 Groups
Surveillance VLAN :Yes
Jumbo Frame :9216 bytes
Voice VLAN :Yes
IGMP Snooping :Yes
SNMP :Yes
Cable Diagnostics :Yes
Energy Saving Technology :EEE Compliant|D-Link Green
19" Rack Mountable :Yes
Fans :1
Built-in PSU :Yes
Dimensions (Size) :358 x 329 x 102 mm
Web-based GUI :Yes
Command Line Interface :No
Types of ports :Gigabit Ports
Static Routing :No
Switch Series :DGS-1100 Series
