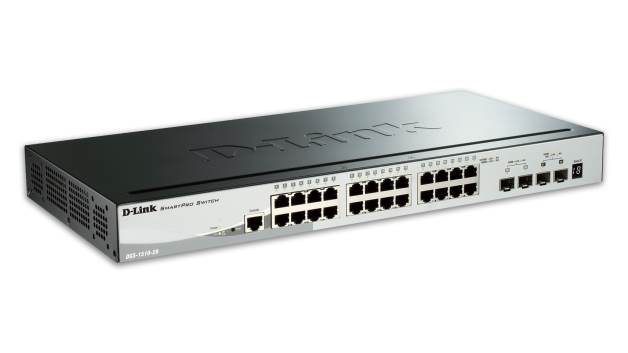

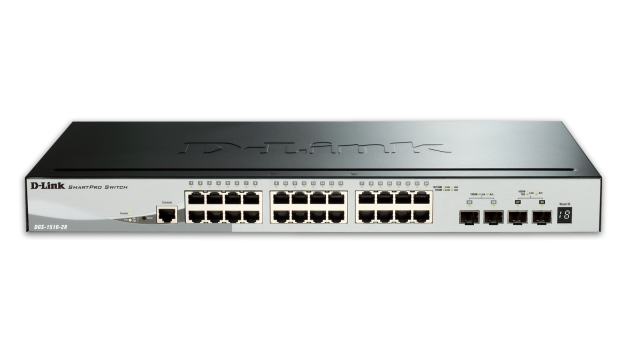

28-Port Gigabit SmartPro Switch with 24 UTP, 2 SFP and 2 SFP+ 10G Ports

DGS-1510-28

  • High performance switches with 10Gig uplinks
  • Physical stacking up to 6 switches
  • Virtual stacking up to 32 switches
  • PoE and PoE+ support (PoE models)
  • Easy to configure with rich set of SMB features
  • Automatic Voice and Surveillance VLANs
  • Advanced security features
  • Static routing support, IPv6 ready
  • Latest energy saving features: EEE and D-Link Green
This product is not available for purchase and has been discontinued.

Click here to view latest available products
Business Solutions / Switching / Smart Switches / 28-Port Gigabit SmartPro Switch with 24 UTP, 2 SFP and 2 SFP+ 10G Ports

Smart Managed Switches

The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in medium business environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 and 48 10/100/1000 Mbps port models, these switches also include four optical ports – including 2 Gigabit SFP and 2 10G SFP+ ports.  The 24 and 48 port versions are also available with 4 10G SFP+ ports instead of the 2 Gigabit plus 2 10G configuration.

Outperforming the competition

The DGS-1510-28X was benchmarked against a market leading competitor's device. It had a significantly lower purchase price and much lower power consumption.

Download full report

10 Gigabit Stacking/ Uplink Ports

Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. Six units or 288 Gigabit ports can be configured as a stack using optional direct attach cables to provide high bandwidth on the DGS-1510 Series with cost efficiency.

Versatile Management

The DGS-1510 Series provides:

  • Network Assistant Utility
  • Industry-standard CLI
  • Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

Extensive Layer 2 Features

The DGS-1510 Series switches are equipped with a complete lineup of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics.

Layer 3 Traffic Management

The DGS-1510 Series supports advanced traffic management features, including static routing. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently.

HIGHLIGHTS
  • High performance switches with 10Gig uplinks
  • Physical stacking up to 6 switches
  • Virtual stacking up to 32 switches
  • PoE and PoE+ support (PoE models)
  • Easy to configure with rich set of SMB features
  • Automatic Voice and Surveillance VLANs
  • Advanced security features
  • Static routing support, IPv6 ready
  • Latest energy saving features: EEE and D-Link Green

Switch Type :Layer2+ IP Routing
Type of Port Required :Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre
Number of Ports :24 - 28
PoE Type Required :None
High Speed Stacking :Yes
Design :Desktop|Rackmountable
1000Base-T ports :24 Ports
SFP ports :2 Ports
Switching Capacity :92 Gbps
QoS :Yes
Spanning Tree Protocol :Yes
Link Aggregation :Yes
VLAN :4K Groups
Surveillance VLAN :Yes
Jumbo Frame :9216 bytes
Voice VLAN :Yes
IGMP Snooping :Yes
802.1X Access Control :Yes
DHCP Server Screening :Yes
SNMP :Yes
Cable Diagnostics :Yes
Energy Saving Technology :EEE Compliant|D-Link Green
19" Rack Mountable :Yes
Fans :1
Built-in PSU :Yes
Dimensions (Size) :511 x 348 x 91 mm
Web-based GUI :Yes
Command Line Interface :Yes
Types of ports :10Gb SFP+ Ports|SFP Ports|Gigabit Ports
10Gb SFP+ ports :2 ports
Static Routing :Yes
