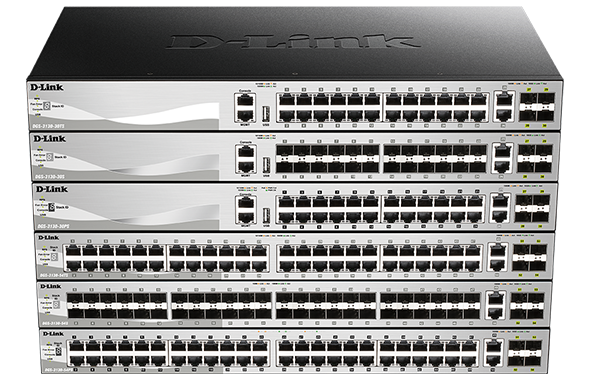

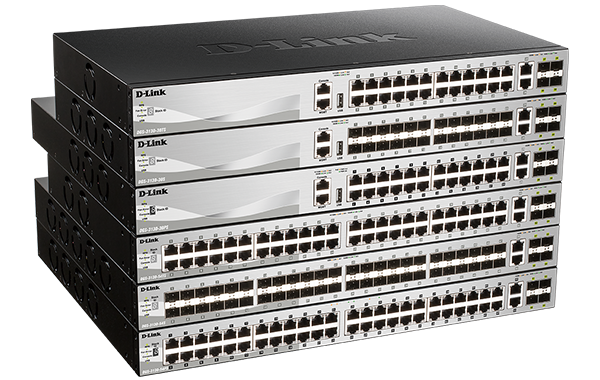

The DGS-3130 Series is a highly versatile Lite Layer 3 stackable switch. Including powerful L2 & L3 features, as well as support for multiple software images, it is highly pliant, capable of accommodating different network deployments.
With network bottlenecks on the rise, the DGS-3130 Series’ six 10 Gigabit uplink ports are an ideal solution. Business can flexibly increase their bandwidth with flexibility to incrementally meet growing bandwidth demands.
with Redundant power supply (RPS) support and 6 kV surge protection on all Gigabit Ethernet ports
Powerful L2 and L3 features such as Static Route, RIP/RIPng and OSPFv2/v3
with physical stacking and fault tolerant topologies
with support for 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC)

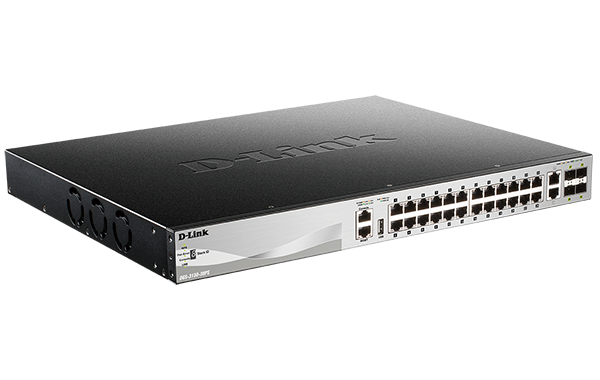

The DGS-3130-30PS model features Power over Ethernet, which compatible devices to be powered by the switch through a standard Ethernet cable. It supports the IEEEE 802.3at PoE and IEEE 802.3at PoE+ standards, providing up to 30W of power per port. PoE effectively reduces deployment time for PoE devices such as IP cameras, VoIP phones, and access points, and eliminates the cost for additional electrical cabling. The 370W PoE power budget, which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allow the switches to power even more devices. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages the power feed to IEEE 802.3at PoE+ powered devices for optimal power distribution.
The DGS-3130 Series features built-in 6 kV surge protection on all PoE and non-PoE Gigabit Ethernet access ports without needing external surge protection. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. This significantly reduces the chances of equipment being damaged, effectively lowering maintenance costs by minimizing the need for expensive repairs or replacement.
The D-Link DGS-3130 Lite Layer 3 Stackable Managed Switches are a Gigabit access layer solution specifically designed to connect end-users in a secure enterprise or metro Ethernet access network.
The switches support high bandwidth, long distance stacking, with physical stacking of up to 9 units over fiber, increasing available Gigabit ports on demand. This makes them ideal for network administrators who demand agile expansion functionality without having to sacrifice network reliability.
The DGS-3130 Series gives enterprises and organisations a highly reliable network, allowing for maximum business continuity. It has built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms.

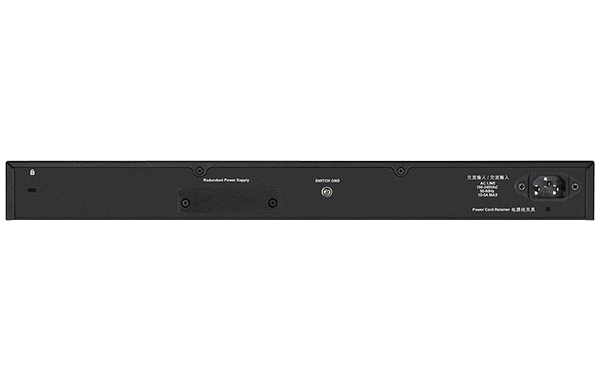

Along with a host of essential network reliability features, all switches in the series support an external redundant power supply to ensure your operations continue unimpeded.
The DGS-3130 Series gives your network the protection it deserves with leading-edge security features that handle threats effectively. With built-in IP-MAC-Port Binding, the switches allow administrators to enhance user access control.
Other advanced features like DHCP Snooping let the switches automatically learn and save IP/MAC pairs to the IMPB white list.
Powerful L2 and L3 features come together in an integrated software image. This allows the switches to satisfy a wide range of requirements for different applications – perfect for building the most solid and robust networks.
The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to prioritise critical network services such as VoIP, video conferences, IPTV, and IP surveillance. With robust features including Traffic Shaping, L2 Multicast, Host-based IGMP/MLD Snooping and ISM VLAN, administrators get a whole new way to manage their traffic that fits their needs.
Strict access control and deployment are made easy with the DGS-3130 switches. All support authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC), and allow individual policies to be assigned to each host after authentication. In addition, the switch also supports Microsoft® NAP (Network Access Protection).
Health & Family Welfare Department
D-link Upgrade Helps Cultivate Young Minds Throughout French Schools
10G Switching Solution Builds the Case for India's police
|802.1X Access Control :||Yes|
|Guest VLAN :||Yes|
|IP Interfaces :||Yes|
|Layer 3 Switching :||Yes|
|Redundant PSU :||DPS-700|
|Routing Table Size :||512|
|Stacking :||Physical and Virtual|
|Stacking Capacity :||Physical (9), Virtual (32)|
|Number of Ports :||24 - 32|
|PoE Type Required :||PoE|PoE+|Extended PoE Budget|
|Type of Port Required :||Gigabit Copper|Gigabit Fibre|10 Gigabit Copper|10 Gigabit Fibre|
|Redundant Power Supply Option :||Yes|
|Stacking Bandwidth :||80 Gbps|
|Switch Type :||Layer 3 Lite|
|Switch Series :||DGS-3130 Series|
|10 Gig ports :||Yes|
|10GBase-T ports :||2|
|Layer :||Layer 3|
|SFP+ ports :||4|
|Cable Diagnostics :||Yes|
|Command Line Interface :||Yes|
|DHCP Server Screening :||Yes|
|Dimensions (Size) :||440 x 350 x 44 mm|
|Energy Saving Technology :||EEE Compliant|D-Link Green|
|IGMP Snooping :||Yes|
|Jumbo Frame :||9K|
|Link Aggregation :||Yes|
|PoE Budget :||370 Watts (740 w RPS)|
|PoE ports :||24 Ports|
|19" Rack Mountable :||Yes|
|Warranty :||Limited Lifetime|
|Spanning Tree Protocol :||Yes|
|Switching Capacity :||168 Gbps|
|1000Base-T ports :||24 Ports|
|VLAN :||4K Groups|
|Voice VLAN :||Yes|
|Web-based GUI :||Yes|
