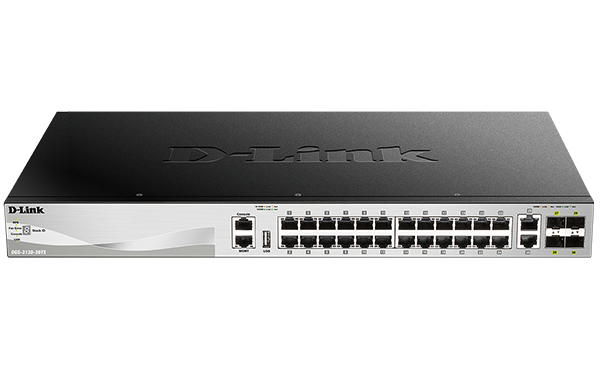

30 port Stackable Gigabit Switch with 6 10GbE ports


Availability: In Stock

RRP AU$ 1719.95

Buy From Other Stores Buy now
Business Solutions / Switching / Managed Switches / 30 port Stackable Gigabit Switch with 6 10GbE ports

Stackable Managed Switches

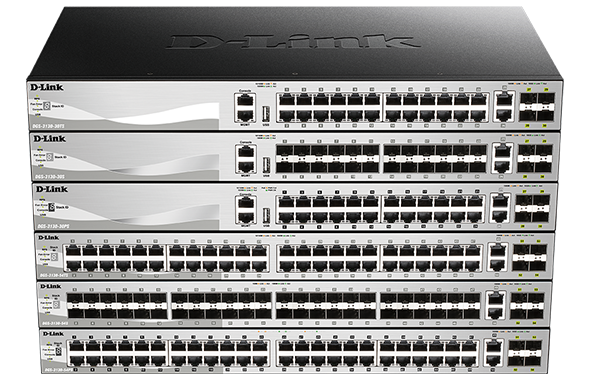

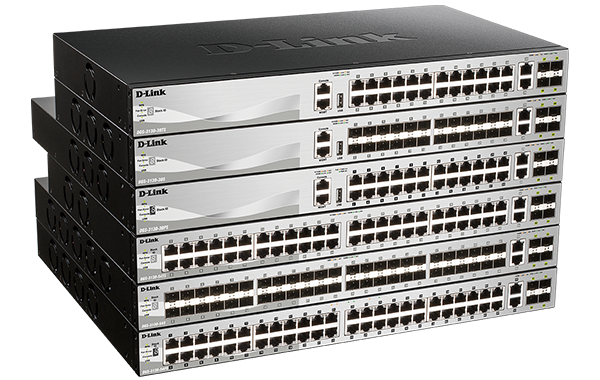

The DGS-3130 Series switches are Lite Layer 3 Stackable Managed Switches designed to offer fast and secure connectivity on enterprise or metro Ethernet access network. These switches support high speed stacking, multicast management and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130 Series switches offer six 10Gb ports: 2 copper and 4 SFP+, which can be used for stacking and as high bandwidth uplinks. In addition each copper port in DGS-3130 Series switches has 6 kV surge protection buit-in for higher network reliability.

Seamless Integration

The DGS-3130 Series switches include a wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps SFP ports, 10GBASE-T RJ-45 copper 10Gb ports and 10Gb SFP+ ports, allowing you to choose the most suitable media type for your requirements. SFP ports can be used in conjunction with fibre optic transceivers to provide connectivity over longer distances. The 10GBASE-T RJ-45 ports offer high speed 10Gbps connectivity which can be used to connect server, network storage or to other switches. The SFP+ ports can also be used with fibre optic transceivers or for shorter distances can be connected via Direct Attach Cables (DEM-CB100S, DEM-CB300S, DEM-CB700S).

Enhanced Network Reliability

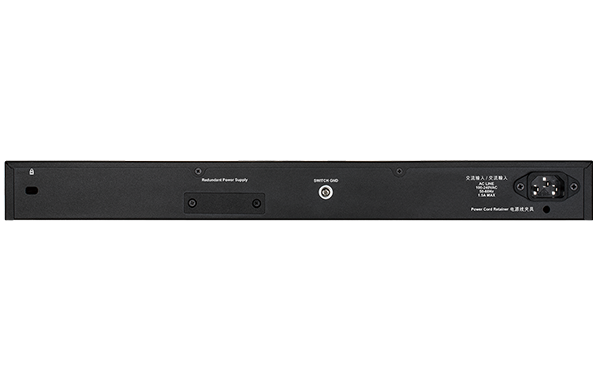

All the models in the DGS-3130 Series support an external redundant power supply to ensure continued operation. They also include reliability features, such as 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control, that enhances network resilience. G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. In addition each copper port in DGS-3130 Series switches has 6 kV surge protection buit-in for higher network reliability.

Comprehensive Security

The DGS-3130 Series switches provide users with the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and also defne the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.

Versatile Management

The DGS-3130 Series switches provide:

  • Out-of-band management port
  • Console port
  • Intuitive web-based management interface
  • Industry-standard CLI

Support for SNMP in the DGS-3130 Series switches allows centralized management of critical network characteristics such as availability, reliability, resilience, and security.

Warranty :Limited Lifetime
1000Base-T ports :24 Ports
Switching Capacity :168 Gbps
QoS :Yes
Spanning Tree Protocol :Yes
Link Aggregation :Yes
VLAN :4K Groups
Jumbo Frame :9K
DHCP Server Screening :Yes
Cable Diagnostics :Yes
Voice VLAN :Yes
Energy Saving Technology :EEE Compliant|D-Link Green
19" Rack Mountable :Yes
Fans :1
Dimensions (Size) :440 x 250 x 44 mm
Web-based GUI :Yes
Layer :Layer 3
10 Gig ports :Yes
SFP+ ports :4
10GBase-T ports :2
Guest VLAN :Yes
Layer 3 Switching :Yes
IP Interfaces :Yes
Routing Table Size :512
Redundant PSU :DPS-500
Stacking :Physical and Virtual
Stacking Capacity :Physical (9), Virtual (32)
Switch Type :Layer 3 Lite
Type of Port Required :Gigabit Copper|Gigabit Fibre|10 Gigabit Copper|10 Gigabit Fibre
IGMP Snooping :Yes
Redundant Power Supply Option :Yes
Command Line Interface :Yes
Switch Series :DGS-3130 Series
802.1X Access Control :Yes
Number of Ports :24 - 32
PoE Type Required :None
Stacking Bandwidth :80 Gbps
