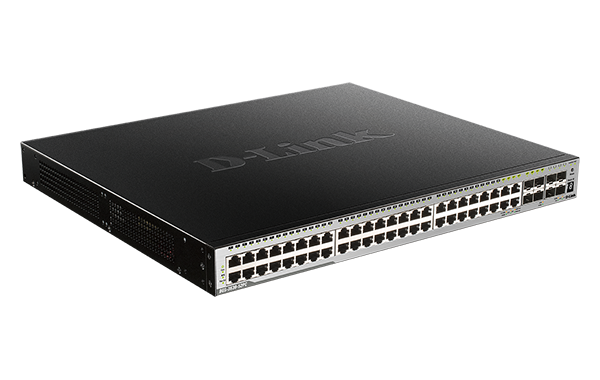

The DGS-3630-28PC and DGS-3630-52PC switches support the IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, which provide up to 30 W of power per port to power devices such as IP phones, Access Points, or security cameras.
Both models feature a 370W PoE power budget which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allowing the switches to power even more devices.
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
The DGS-3630 Series provides:
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

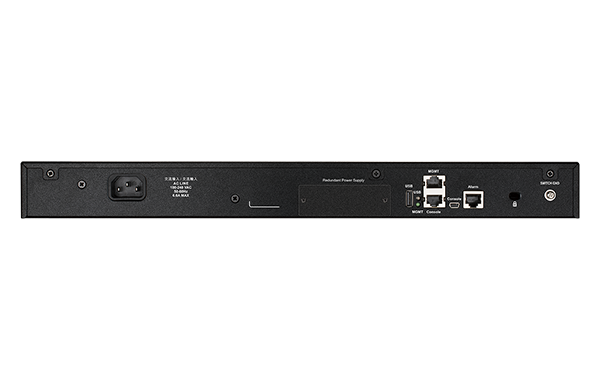

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
The DGS-3630 Series is designed for use with three different software images:
Please refer to the Specifications tab or download the product datasheet for more information.
|Link Aggregation :||Yes|
|VLAN :||4K Groups|
|Jumbo Frame :||12K bytes|
|DHCP Server Screening :||Yes|
|Cable Diagnostics :||Yes|
|Voice VLAN :||Yes|
|Energy Saving Technology :||EEE Compliant|D-Link Green|
|SFP ports :||4 Ports (Combo)|
|PoE ports :||48 Ports|
|PoE Budget :||370 Watts (740 w RPS)|
|Switching Capacity :||176 Gbps|
|Routing Table Size :||16000|
|Redundant PSU :||DPS-700|
|Stacking :||Physical and Virtual|
|Stacking Capacity :||Physical (9), Virtual (32)|
|Switch Type :||Layer 3+ IP Routing|
|Type of Port Required :||Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre|
|19" Rack Mountable :||Yes|
|Spanning Tree Protocol :||Yes|
|Dimensions (Size) :||441 x 259.8 x 44 mm|
|Web-based GUI :||Yes|
|Layer :||Layer 3|
|10 Gig ports :||Yes|
|SFP+ ports :||4|
|Guest VLAN :||Yes|
|Layer 3 Switching :||Yes|
|IP Interfaces :||Yes|
|IGMP Snooping :||Yes|
|Number of Ports :||48 - 52|
|PoE Type Required :||PoE|PoE+|
|Stacking Bandwidth :||80 Gbps|
|Redundant Power Supply Option :||Yes|
|Command Line Interface :||Yes|
|Switch Series :||DGS-3630 Series|
|802.1X Access Control :||Yes|
|Warranty :||Limited Lifetime|
|1000Base-T ports :||48 Ports|
