14-Port Gigabit Industrial Managed PoE Switch with 10 1000BASE-T (8 PoE+) ports and 4 SFP ports

DIS-300G-14PSW

Availability: In Stock


RRP AU$ 3299.95

Buy now Buy From Other Stores
Business Solutions / Switching / Industrial Switches / 14-Port Gigabit Industrial Managed PoE Switch with 10 1000BASE-T (8 PoE+) ports and 4 SFP ports

The DIS-300G-14PSW Gigabit Industrial Managed Switch is equipped with ten 10/100/1000BASE-T ports, 8 of which are PoE+ capable and 2 SFP ports. The DGS-300G Series switches feature a robust design making them ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-300G Series furthermore integrate advanced management and security functions to provide a complete solution.

Features

Easy Management
Easy to manage with user friendly Web-based management and industry-standard CLI.
Gigabit Connectivity with PoE and SFP
Designed with 10 x Gigabit ports (8 PoE+) and 4 x SFPs slot to suit a range of network layouts.
PoE Support
With its 240 W PoE power budget, it’s been designed to supply data and PoE power.
Fast Deployment

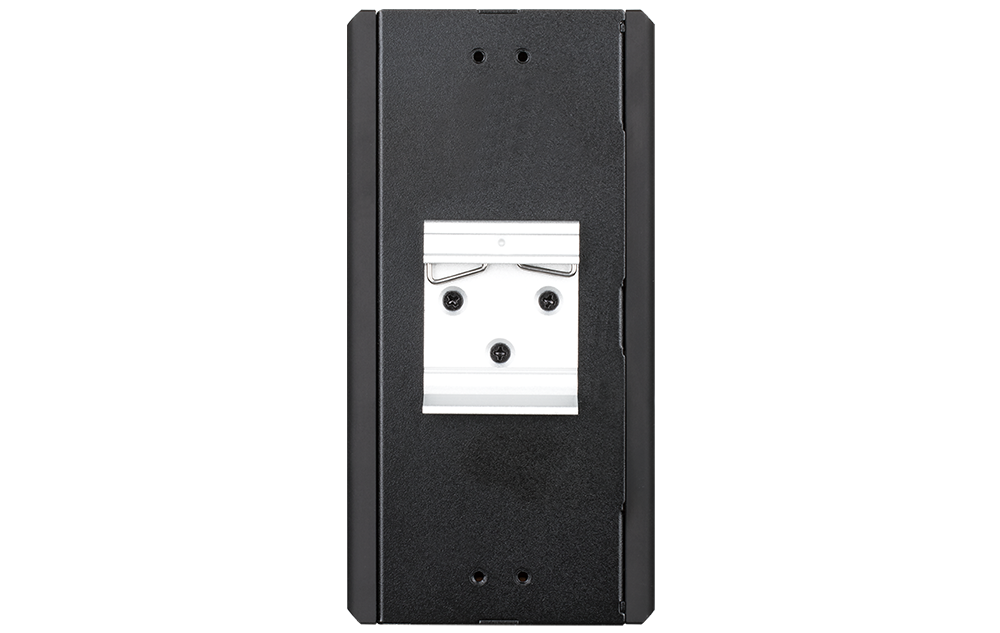

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
High Availability
Fast Ring failover recovery time of < 20ms.


Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility.
Withstands Extreme Temperatures
Operates in harsh environments with temperatures from -40°C to +75°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.



Durable and Reliable Design

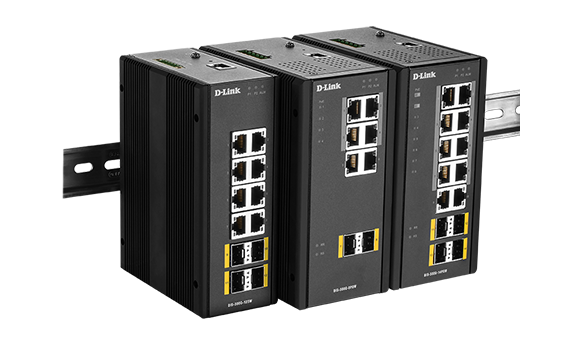

The DIS-300G Series switches are housed in a highly resistant metal casing to protect the switches from harsh environments. The high electromagnetic compatibility (EMC) protects the DIS-300G Series from unwanted electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-300G Series while also being able to operate in a wider temperature range of up to 75 °C. For increased flexibility, the DIS-300G Series can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack.

High Redundancy and Reliability

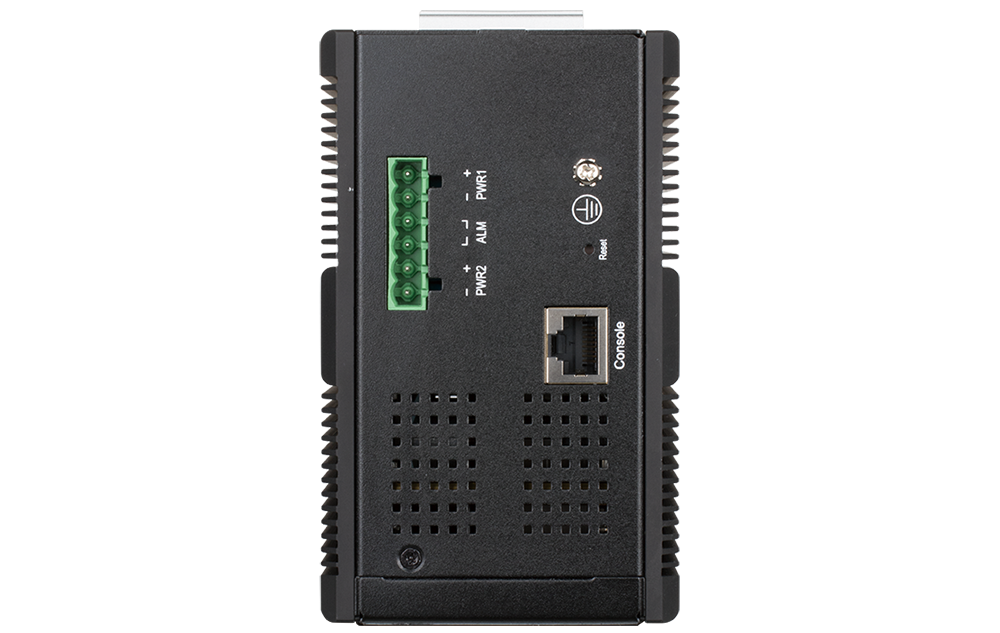

The DIS-300G Series support Fast Ring Failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.

Power over Ethernet Support

The DIS-300G-14PSW is a PoE-ready switch with a total PoE budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.

Easy Troubleshooting

The DIS-300G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.


PoE Budget :240 Watts
Switching Capacity :28 Gbps
DIN Rail Mountable :Yes
Fans :Fanless
Metal Housing :Yes
MAC Address Table Size :8K
Management Options :Managed
PoE Type Required :PoE+
PoE Ports :8
PoE+ (802.3at) Supported :Yes
Power Input :12 to 58V DC terminal block dual input
SFP Ports :4
Operating Temperature :From -40° to 75°C
1000BASE-T Ports :10
Switch Series :DIS Industrial Series
Surge Protection :None
