54-Port 10 Gigabit Layer 3 Managed Stackable Switch with 48 10GBASE-T Ports and 6 40/100Gb QSFP+/QSFP28 Ports
DXS-3610-54T
Switching that Stacks Above the Competition
The DXS-3610 Layer 3 Stackable 10G/100G Managed Switches are compatible with SDN-enabled network architecture for deployment in high-performance data centre, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
Why You Want It
Highly Scalable
Licence upgradable to MPLS,
supports Switch Resource Management
High Performance
Powerful 100G uplink speed,
48 x 10G ports and Mac Table up to 288K
Hot-Swappable Redundancy
Multiple Fan Modules
with Load-Sharing PSUs
SDN Compatible
OpenFlow v1.3 compliance for
SDN environments
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet Switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.

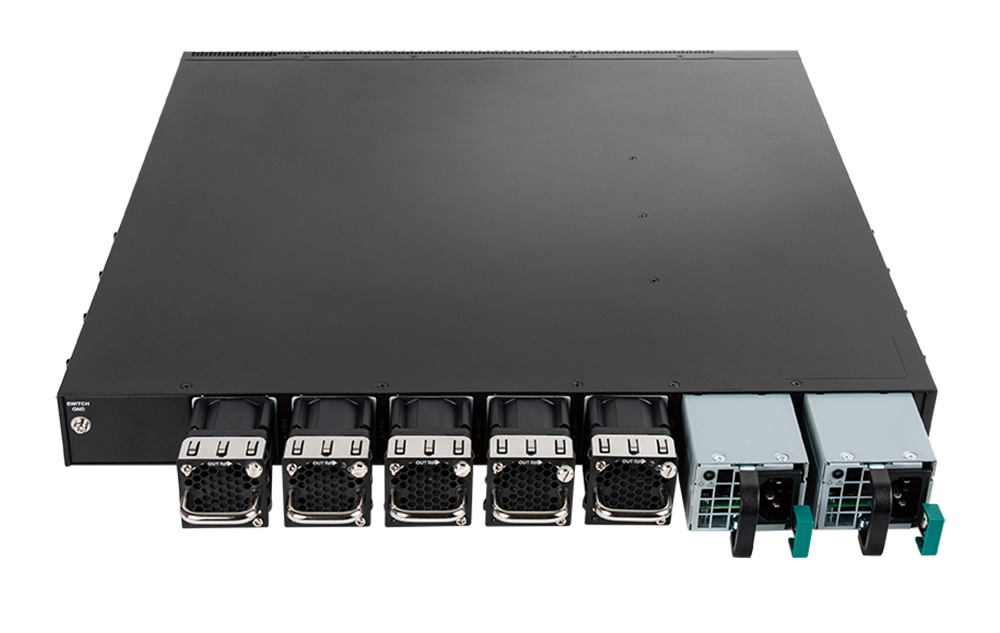

Hot-Swappable Redundancy
The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.

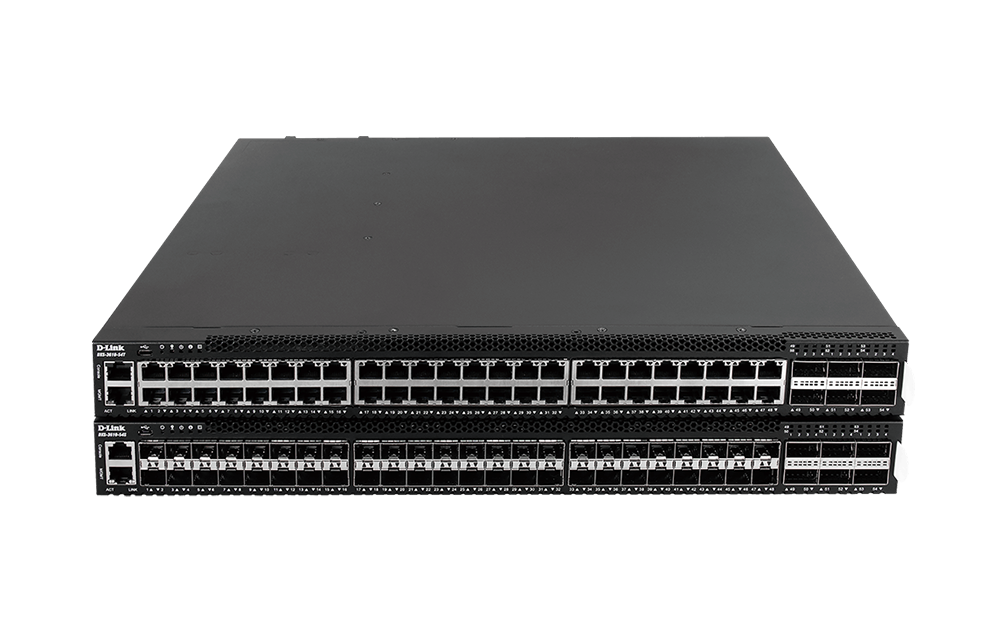

Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 Switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centres in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Simplified Deployment
Remotely activate the front panel LED indicator to rapidly locate the DXS-3610 in your data centre or server room that requires extra attention.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralised management platform, can be installed for in-depth network management and maintenance to optimise network availability, reliability, security, and resilience.
Learn More
| 802.1X Access Control : | Yes |
| Guest VLAN : | Yes |
| IP Interfaces : | Yes |
| Layer 3 Switching : | Yes |
| Redundant PSU : | Yes |
| Routing Table Size : | 32K |
| Stacking : | Physical and Virtual |
| Stacking Capacity : | Physical (12), Virtual (32) |
| Number of Ports : | 48 - 52 |
| PoE Type Required : | None |
| Type of Port Required : | 10 Gigabit Copper|40 Gigabit QSFP+|100 Gigabit QSFP28 |
| Redundant Power Supply Option : | Yes |
| Stacking Bandwidth : | 1200 Gbps |
| Switch Type : | Layer 3+ IP Routing |
| Switch Series : | DXS-3600 Series |
| 10 Gig ports : | Yes |
| 10GBase-T ports : | 48 |
| Layer : | Layer 3 |
| Cable Diagnostics : | Yes |
| Command Line Interface : | Yes |
| DHCP Server Screening : | Yes |
| Dimensions (Size) : | 441 x 487 x 44 mm |
| Energy Saving Technology : | EEE Compliant|D-Link Green|RoHS 6 Compliant |
| Fans : | 5 |
| IGMP Snooping : | Yes |
| Jumbo Frame : | 9416 bytes |
| Link Aggregation : | Yes |
| QoS : | Yes |
| 19" Rack Mountable : | Yes |
| Warranty : | Limited Lifetime |
| SNMP : | Yes |
| Spanning Tree Protocol : | Yes |
| Switching Capacity : | 2.16 Tbps |
| VLAN : | 4K Groups |
| Voice VLAN : | Yes |
| Web-based GUI : | Yes |
