Wireless BE9500 Wi-Fi 7 Tri-Band PoE Access Point
DAP-E9560
- Wi-Fi 7 BE9500 Tri-band high-speed connectivity
- 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN
- Powered by 802.3bt PoE, USB-C adapter
- Max. channel bandwidth support (320MHz)
- 4096-QAM – Up to 20% faster than Wi-Fi 6
- Flexible use of multiple operating modes
- WPA3 encryption for enhanced Wi-Fi security
- Customizable Captive Portal for user access
- Multi-Link Operation boosts connection stability
- Centrally managed via Nuclias Network Controller
User Benefits
Wi-Fi 7 Connectivity
Enables faster speeds, lower latency, and greater capacity for high-performance, future-ready networks
10G Ready for Wi-Fi 7
Equipped with 10G PoE and 2.5G ports, delivering wired backhaul and flexible uplink options to unleash the potential of Wi-Fi 7
Customizable Network Access
Supports Multi-SSID and Captive Portal for secure, customizable network access for different user groups
Flexible Installation Options
Supports PoE (802.3bt), USB-C, and comes with ceiling grid and wall/ceiling mounts for easy deployment in any environment
Smart Segmentation
Enhanced security with VLANs per SSID and MAC control for precise segmentation and restricted access
Centralized Management
Easily automate, monitor, and scale your network with centralized management via Nuclias Network Controller
Enhanced Performance for All Applications
Double the bandwidth from 160 MHz to 320 MHz
4096 QAM Modulation - 20 % data transmission increase than Wi-Fi 6
Multi-Link Operation (MLO) - Improves speed and stability
Multi-RUs and Puncturing – Channel bandwidth can be used more efficiently

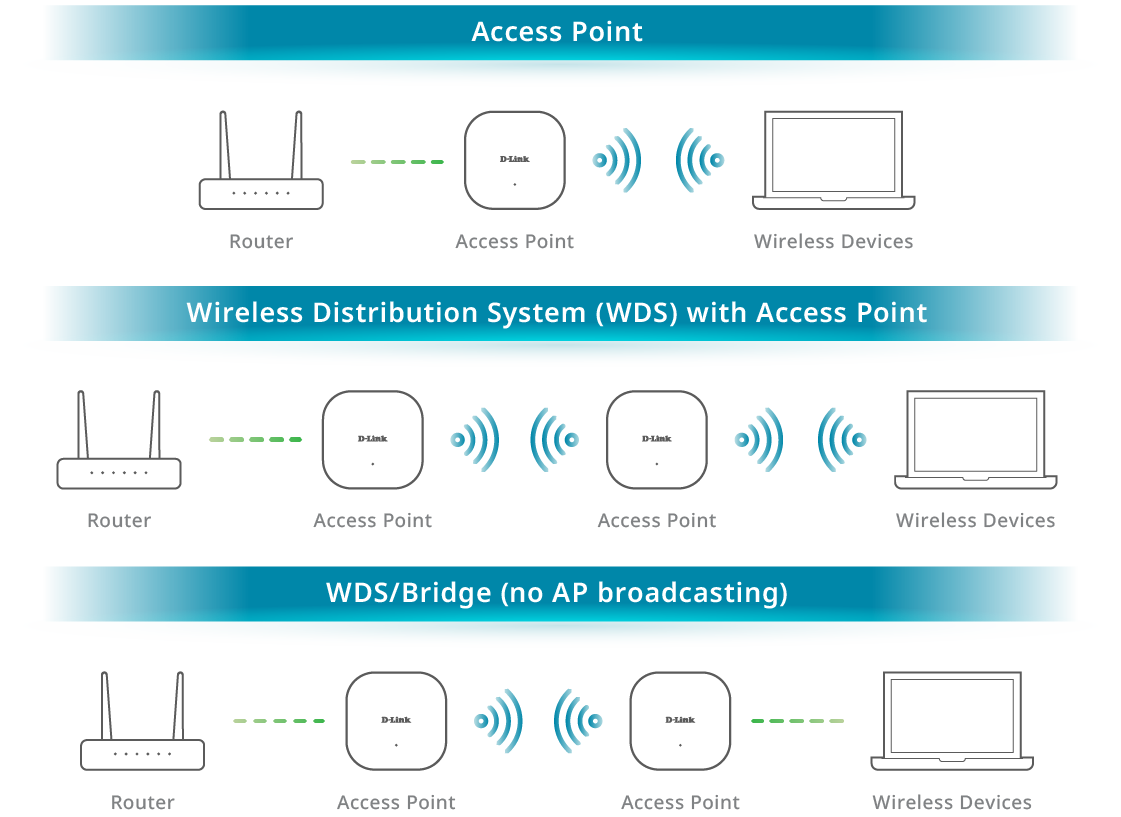

Multiple Operation Modes
The DAP-E9560 can be configured to fit the needs of your network and optimize performance.
- Access Point
- Wireless Distribution System (WDS) with Access Point
- WDS/Bridge (no AP broadcasting)
Optimized Wired Performance with 10G PoE and 2.5G Ports
Equipped with both a high-speed 10G PoE Ethernet port and an additional 2.5G Ethernet port, the DAP-E9560 ensures exceptional wired backhaul and flexible uplink options. This advanced design maximizes wired throughput for demanding enterprise environments, fully unleashing the ultra-fast potential of Wi-Fi 7 and supporting high-density, high-performance deployments.

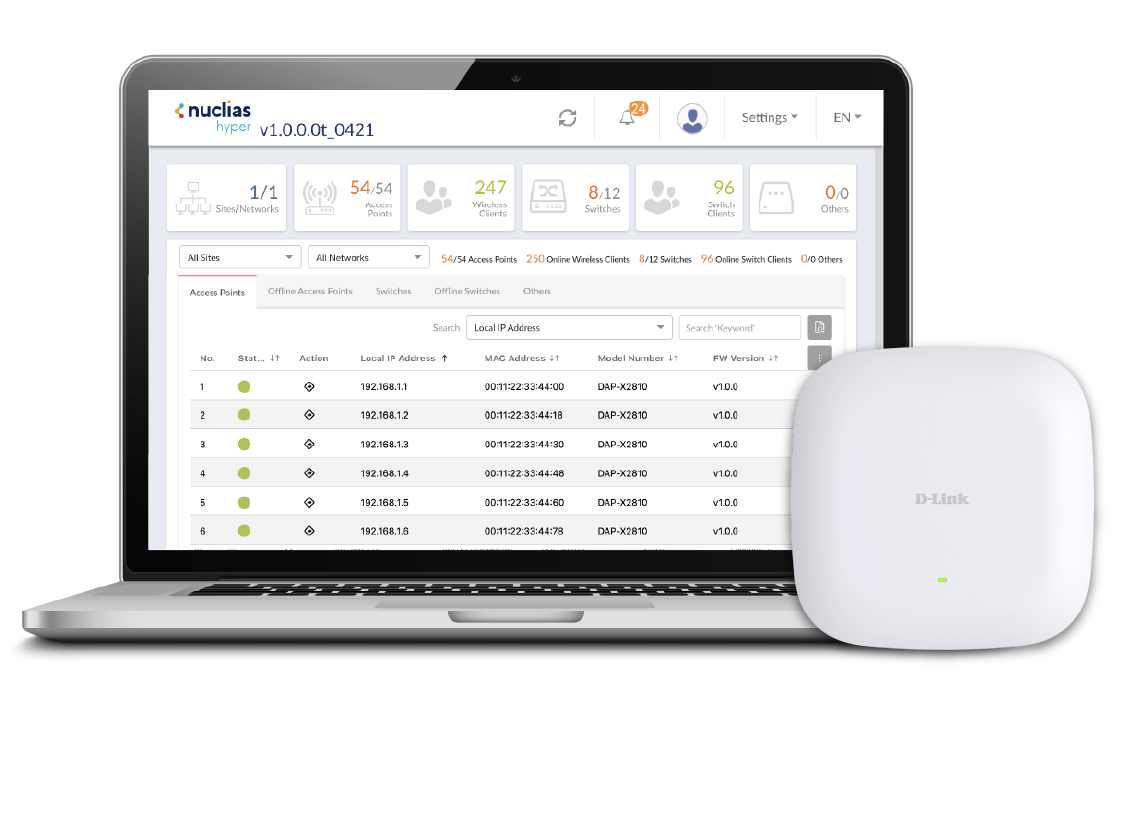

Centralized Network Control Made Simple
The DAP-E9560 integrates seamlessly with D-Link’s Nuclias Network Controller and software-based management platform, empowering businesses with centralized, remote management capabilities. Accessible from anywhere via an internet connection, this solution enables streamlined network control, automation, and effortless scalability. With built-in analytics and reporting, it delivers actionable insights across your network down to each access point for smarter decision-making.

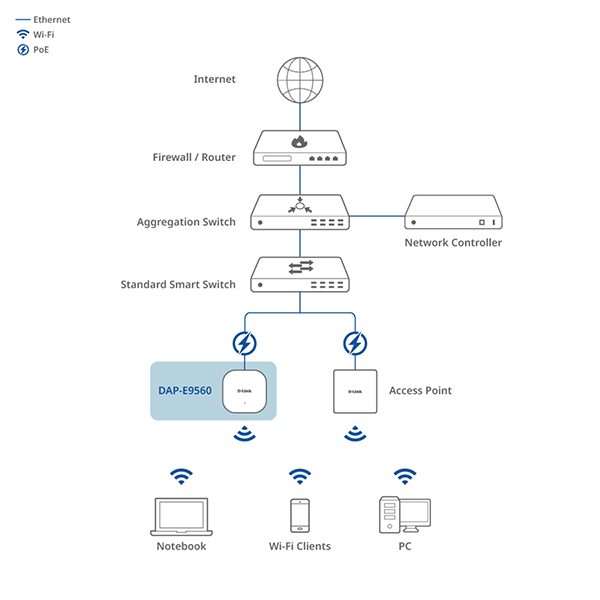

Connection Diagram
DAP-E9560 is designed for ultra-fast, secure, and efficient wireless connectivity to meet the demands of modern high-density environments. With Tri-band support, 320 MHz channels, 4096-QAM, and 10G Ethernet, it delivers exceptional performance for latency-sensitive applications like video conferencing, cloud access, and real-time collaboration.
Applications
SME
Department Store
University

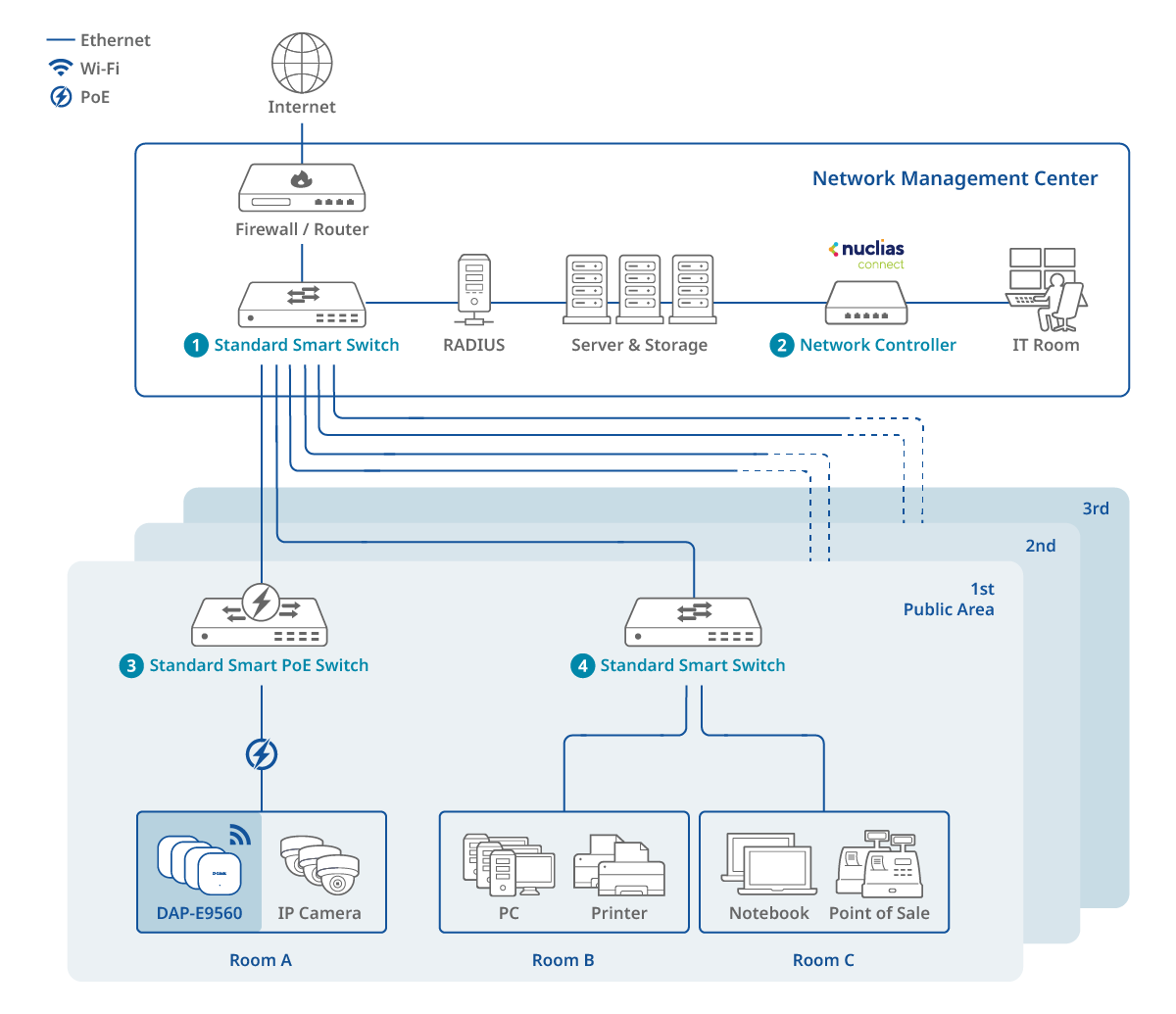

SME
User benefits:
- High-speed data for better productivity
- Smooth video calls and collaboration
- Stable performance for many devices
- Fast roaming across floors
- Enhanced your productivity
- Secure access with WPA3 and VLANs
Learn more:
- Standard Smart Switch: DXS-1210-12SC
- Network Controller: DNH-1000
- Standard Smart PoE Switch: DMS-1250-18P
- Standard Smart Switch: DMS-1250-28

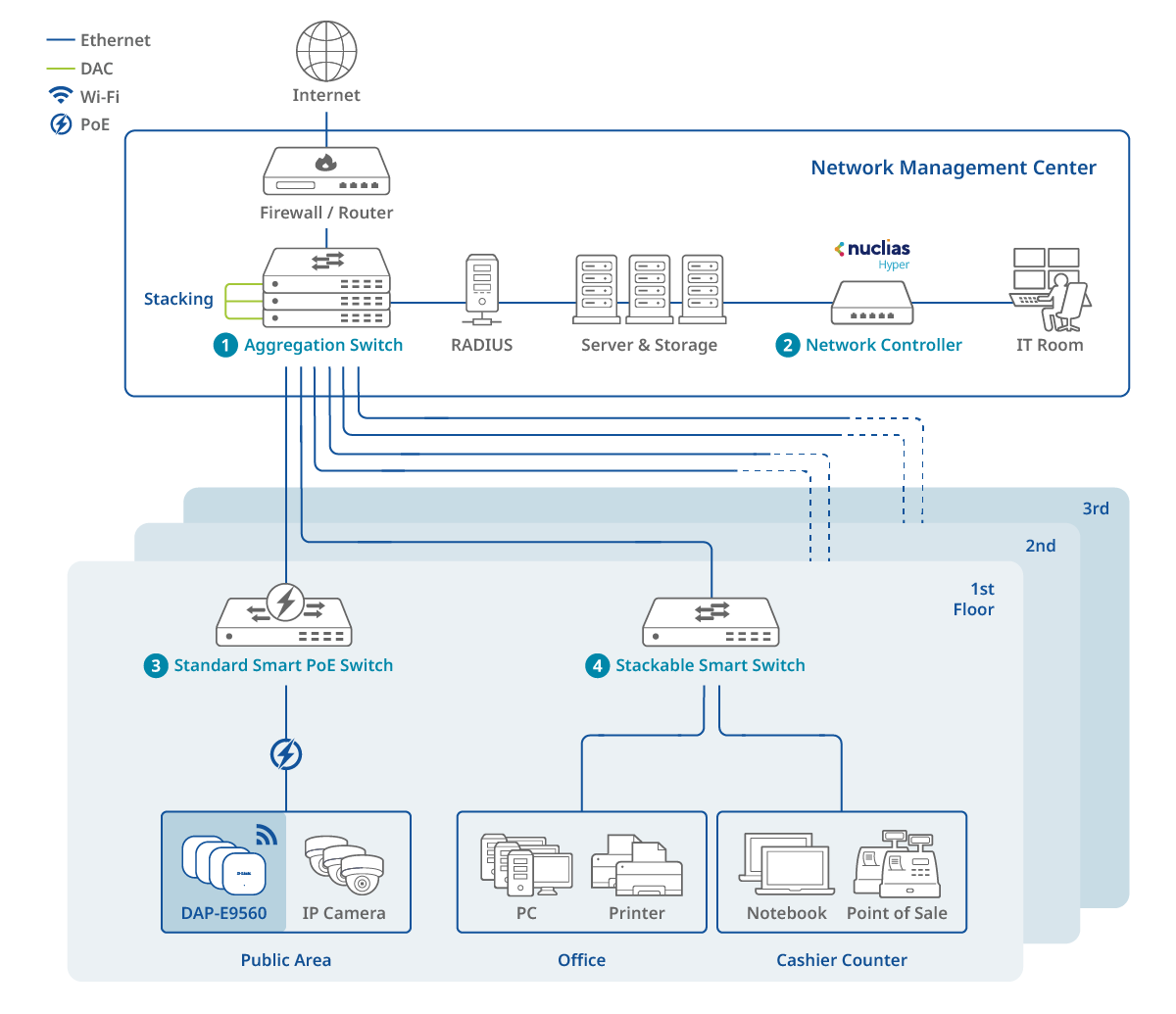

Department Store
User benefits:
- Rapid fault recovery for reliable performance
- Comprehensive security to protect critical data
- Supports long-distance connectivity
- VLAN and QoS to optimize the learning experience
Learn more:
- Aggregation Switch: DXS-3130-32SY
- Network Controller: DNC-5000
- Standard Smart PoE Switch: DMS-1250-28P
- Stackable Smart Switch: DGS-1530 Series

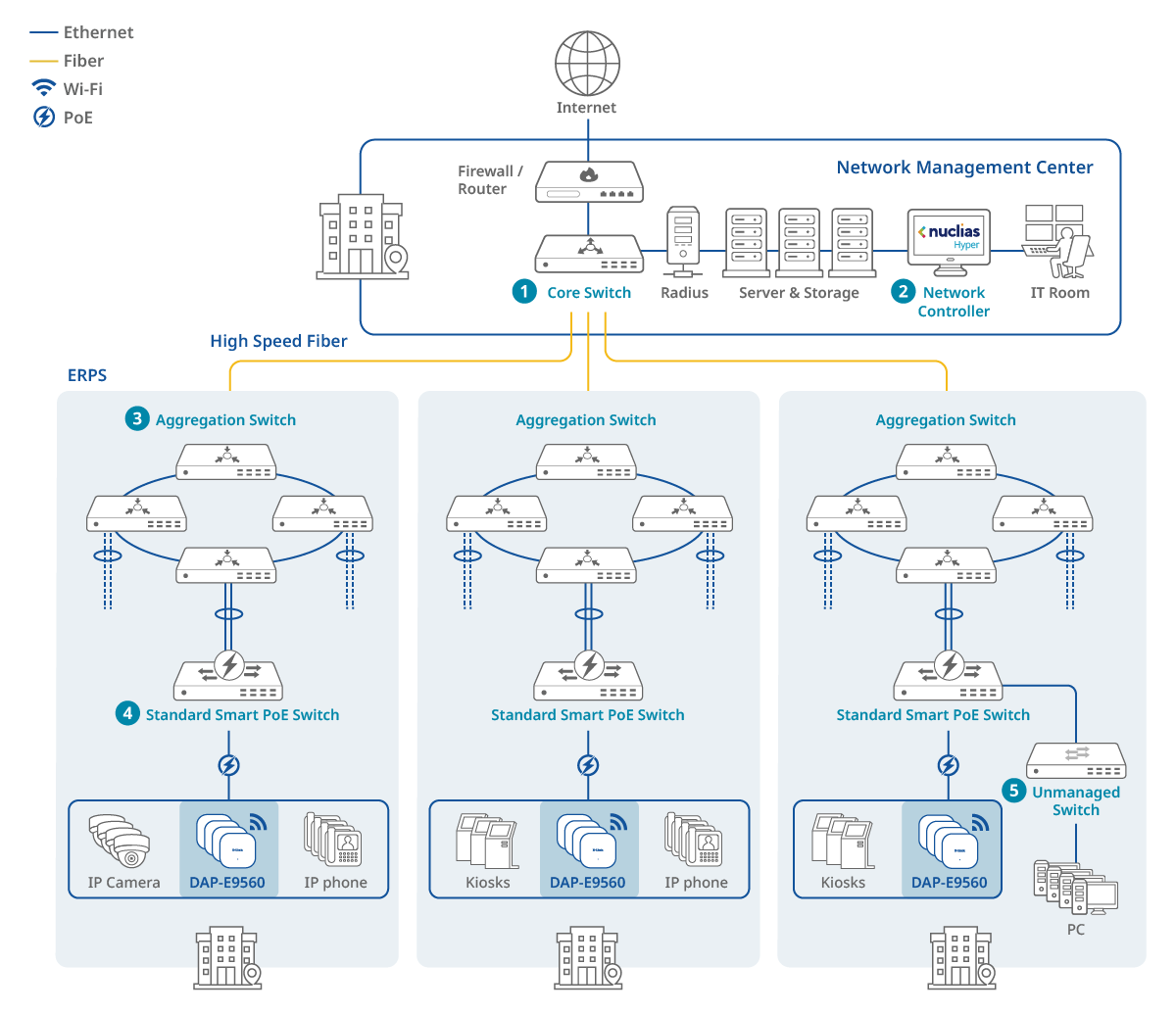

University
User benefits:
- Reliable performance in high-density areas
- Low latency for online learning and research
- Fast roaming between buildings
- Supports AR/VR and 4K applications
- Secure access for all user groups
Learn more:
- Core Switch: DXS-3610-54S
- Network Controller: DNC-5000
- Aggregation Switch: DXS-3130-32SY
- Standard Smart PoE Switch: DMS-1250-28P
- Unmanaged Switch: DMS-1024
| Management Options : | Standalone|Controller Managed |
| Wi-Fi Bands : | Tri-Band 2.4, 5 and 6 GHz |
| AP Design : | Indoor|Built-in Antennas|PoE++ |
| Central Management : | Nuclias Connect Controller |
| Wi-Fi Type : | Wireless BE9500 |
| Antenna Type : | Built-in |
| Auto Channel Selection : | Yes |
| Dimensions (Size) : | 223 x 223 x 47 mm |
| LAN Interface : | 1x 10Gbps PoE + 1x 2.5Gbps |
| Operation Modes : | AP|WDS (Site-to-Multisite)|WDS+AP |
| PoE Standard : | PoE++ 802.3bt |
| Security : | 802.1x|WPA/WPA2-EAP| WPA/WPA2-PSK|MAC filtering|WPA3 |
| Number of SSIDs : | 8 |
| Warranty : | Limited Lifetime |
| Indoor or Outdoor : | Indoor Deployment |
| Wi-Fi Configuration : | Wi-Fi 7|Wireless BE9500|2.4 GHz / 5 GHz / 6 GHz Tri-Band |
