10-Port 10Gb Multi-Gigabit Smart Managed PoE++ Switch with 8 10GBASE-T Ports and 2 SFP+ ports
DXS-1210-10MP
- 8 x Multi-Gigabit 10GBASE-T PoE++ ports with up to 60W power per port and 6kV surge protection
- 2 x high-speed 10G SFP+ uplink ports for flexible fiber connectivity
- PoE power budget of 370W with support for Perpetual PoE and Fast PoE
- Enables Layer 3 inter-VLAN routing to improve network efficiency and reduce router load
- Offers Auto Surveillance VLAN and Auto Voice VLAN for optimised video and voice traffic
- Incorporates energy-saving features like smart fans, LED shut-off, and system hibernation
- Provides robust security with ACLs, 802.1X authentication, DHCP screening, and D-Link Safeguard Engine
- Supports multiple management options including Web GUI, CLI, Telnet, SNMP, and Nuclias Connect
- Includes diagnostic tools like cable testing, loopback detection, and PoE monitoring via LEDs and MIB
- Built with a compact, rack-mountable design and operates reliably across a wide temperature range
Alleviate Network Congestion
Reduce traffic bottlenecks with a high-speed DXS-1210-10MP 10-Port 10Gb Multi-Gigabit Smart Managed PoE++ Switch. Ideal for IP surveillance and telephony, it streamlines device provisioning, while robust Layer 2 and Layer 3 Lite features ensure smooth, prioritised data flow to enhance performance across growing networks.

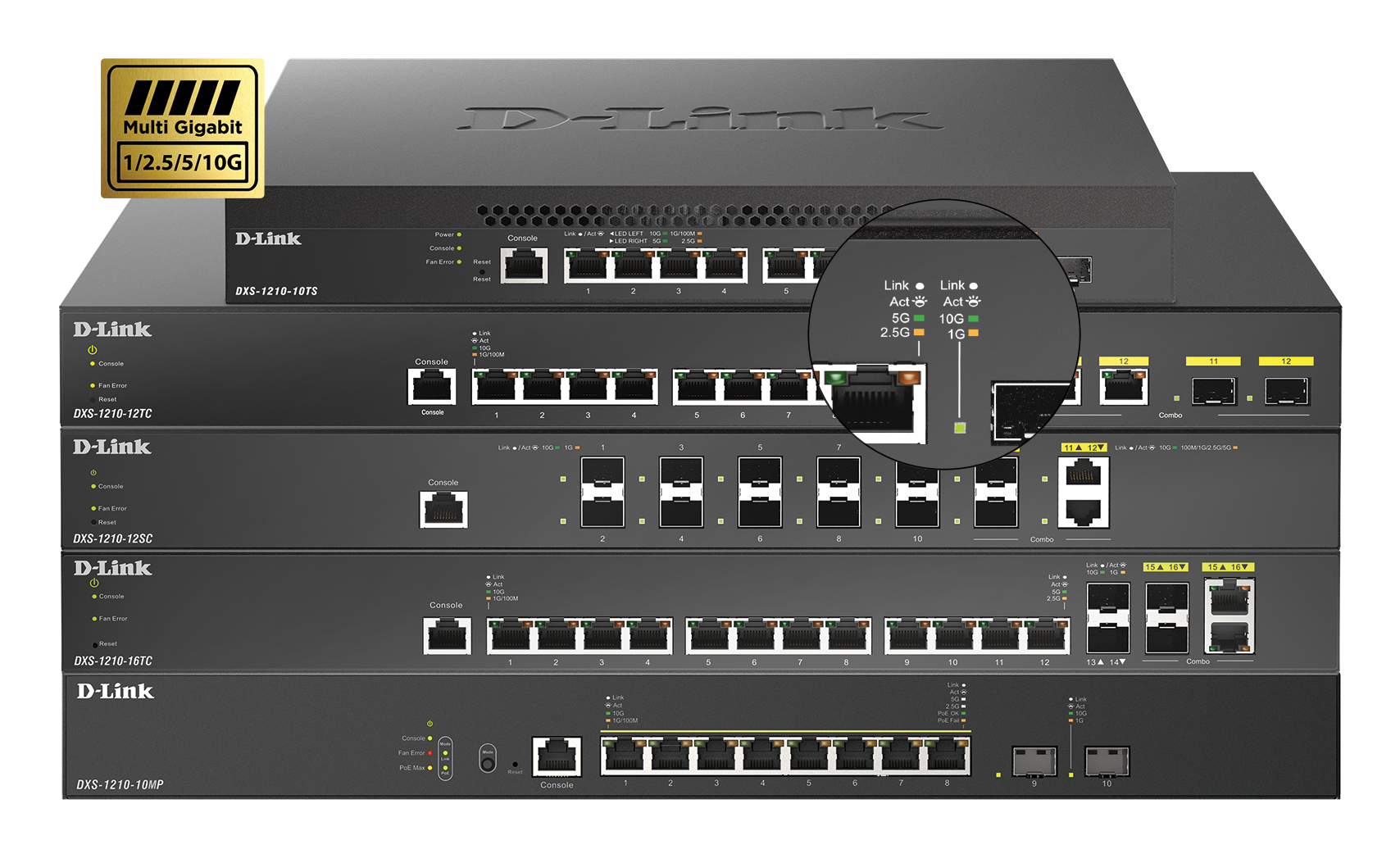

10G Multi-Gigabit
10G Multi-Gigabit Ethernet connections for low-latency, to easily meet high-bandwidth demands, and device flexibility across the network.
Web-based GUI
Intuitive remote management interface makes setups and configurations easier, and reduces switch deployment times.
Layer 2 Features
Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).
Layer 3 Lite Features
Such as IP Interfaces, ARP, IPv6 Neighbor Discovery (ND), Default Routing and Static Routing.
Energy Saving Technology
Powers down any unused ports, and includes LED shut-off, port shut-off, port standby.
Quality of Service (QoS)
Rich QoS controls, including bandwidth control, and Auto Surveillance VLAN.
Network Security
D-Link’s Safeguard Engine™ helps protect against traffic flooding from malicious attacks.
Uninterrupted PoE
Delivers up to 60W per port with PoE++, featuring Perpetual and Fast PoE for uninterrupted, efficient power to connected devices.
Affordable 10G Capabilities, for a Reliable High-Speed Network.
Add 10-Gigabit Ethernet connectivity to your network with these cost-effective switches. Designed to work as the network core for Small to Medium Businesses (SMBs) or as an aggregation switch in a larger Enterprise.
Extensive L2 & L3 Lite Feature Set
The DXS-1210 Series includes Layer 2 features such as Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). They also support IP interfaces, ARP, IPv6 Neighbor Discovery (ND), default routing, IPv4/IPv6 static routing, IGMP and MLD Snooping, Auto Voice and Surveillance VLAN, LLDP and LLDP-MED.
Improved Intranet Performance
Inter-VLAN routing allows traffic to be routed between VLANs without passing through the router, reducing the load on the router as well as the wider network.
Security and QoS Controls for Priorities
Security controls for protection of the network, and QoS ensures essential traffic reaches its destination.

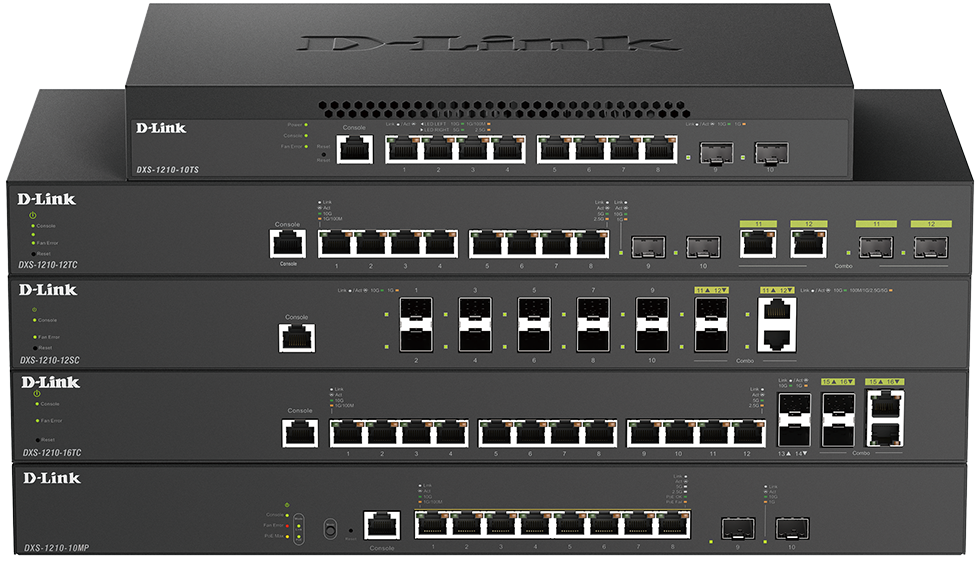

Seamless Integration with PoE++
The DXS-1210 Series comes with both RJ45 and SFP+ ports capable of connecting to Cat. 6 and Fibre for 10G Ethernet. The MP models support PoE++ IEEE 802.3bt, providing 60W power and 6kV surge protection on each port. This means the DXS-1210 Series can provide a flexible solution for upstream or downstream server connections, making network deployment easier.
Security on every Port
The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.
These switches also feature Address Resolution Protocol (ARP) spoofing prevention which further protects the network from cyber attacks. They also use packet control ACLs to block invalid packets that contain fake ARP messages.
The Access Control List (ACL) helps protect the internal IT network through permission-based network access.
The DHCP Server Screen feature filters DHCP replies on unauthorised ports to prevent them from being assigned an IP address.
And support for 802.1X port-based and host-based authentication allows the network to be authenticated through external RADIUS servers.
QoS and Bandwidth Control for network priorities.
The DXS-1210 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, to make faster VoIP and Video Surveillance deployments.
If you need Surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as Surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN and Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.
Auto Surveillance VLAN
Automatically detects and assigns video surveillance traffic to a high-priority VLAN by creating distinct broadcast domains to guarantee that quality real-time video is transferred.
Auto Voice VLAN
Enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN, this feature guarantees quality and security of VoIP traffic.
As a result, the voice and video packets take precedence over other packets. And with bandwidth control, more bandwidth can be reserved for important functions.
Energy efficient, without sacrifices.
With D-Link Green technology included, DXS-1210 Series saves power without any loss of operational performance or functionality.
Auto-adjusting fans with heat sensors
Built-in smart fans with internal heat sensors monitor and detect temperature changes and react by utilising different fan speeds to keep systems at optimal temperature.
Sleep mode
Link status drastically reduces power consumption by automatically putting ports without a link into sleep mode.
Advanced Chipset
Utilises silicon technology to make energy use more efficient.
| Switch Type : | Layer2+ IP Routing |
| Type of Port Required : | 10 Gigabit Copper |
| Number of Ports : | 5 - 16 |
| PoE Type Required : | PoE++ |
| High Speed Stacking : | No |
| Design : | Desktop|Rackmountable |
| PoE ports : | 8 Ports |
| PoE Budget : | 370 Watts |
| Switching Capacity : | 200 Gbps |
| QoS : | Yes |
| Spanning Tree Protocol : | Yes |
| Link Aggregation : | Yes |
| VLAN : | 4K Groups |
| Surveillance VLAN : | Yes |
| Jumbo Frame : | 10000 bytes |
| Voice VLAN : | Yes |
| IGMP Snooping : | Yes |
| 802.1X Access Control : | Yes |
| DHCP Server Screening : | Yes |
| SNMP : | Yes |
| Cable Diagnostics : | Yes |
| Energy Saving Technology : | EEE Compliant|D-Link Green|RoHS 6 Compliant |
| 19" Rack Mountable : | Yes |
| Fans : | 2 |
| Built-in PSU : | Yes |
| Dimensions (Size) : | 440 x 250 x 44 mm |
| Web-based GUI : | Yes |
| Command Line Interface : | Yes |
| Types of ports : | 10Gb Copper Ports |
| 10Gb SFP+ ports : | 2 ports |
| Static Routing : | Yes |
| 10GBase-T ports : | 8 ports |
| Switch Series : | DXS-1210 Series |
