2.4GHz Indoor 5dBi Gain Omni-Directional Antenna

ANT24-0501

This product is not available for purchase and has been discontinued.

Click here to view latest available products
Business Solutions / Wireless / Antennas / 2.4GHz Indoor 5dBi Gain Omni-Directional Antenna

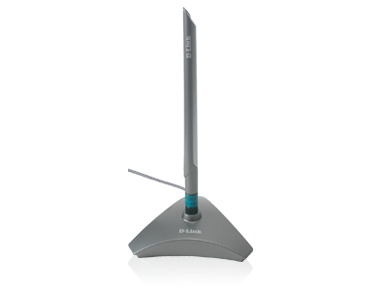

The D-Link ANT24-0501 is a high-Gain omni-directional antenna designed for 2.4GHz ISM band indoor use. This antenna provides high transmission/reception rates for wireless LAN devices operating on the 2.4GHz public industrial, scientific and medical (ISM) frequency band.


It can be used with 802.11b, 802.11g and 802.11n wireless LAN devices such as access points and routers.


This antenna can be used to replace the default antenna of your wireless device to expand its operation range. It can be connected to your wireless device through an extension cable (provided with the antenna), or directly attached to your wireless device.


Cable Included :1.5m Cable RP-SMA
Connector type :RP SMA
dBi Rating :5
Frequency :2.4GHz
Horizontal Spread, deg :360
Indoor / Outdoor :Indoor
Mounting Kit Included :No
Theoretical Max Distance :100m
Type :Omni-directional
Vertical Spread, deg :36
Dimension (Size) :15 x 15 x 26.4 cm
Warranty :1-Year Limited Warranty
