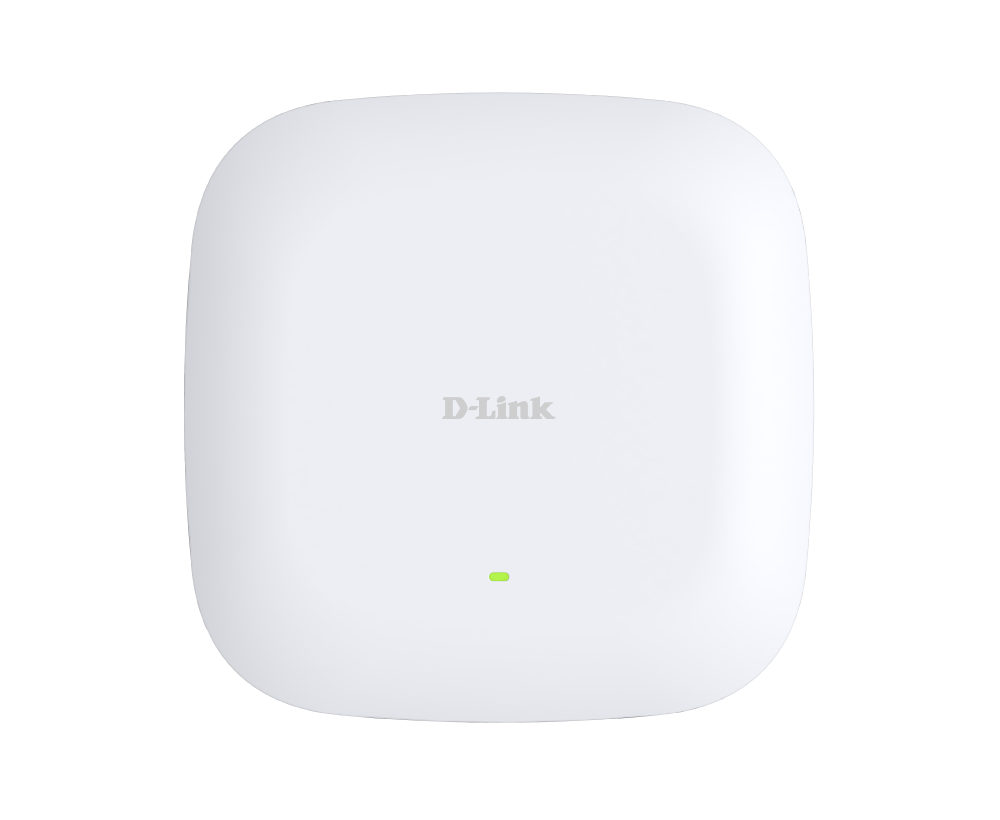

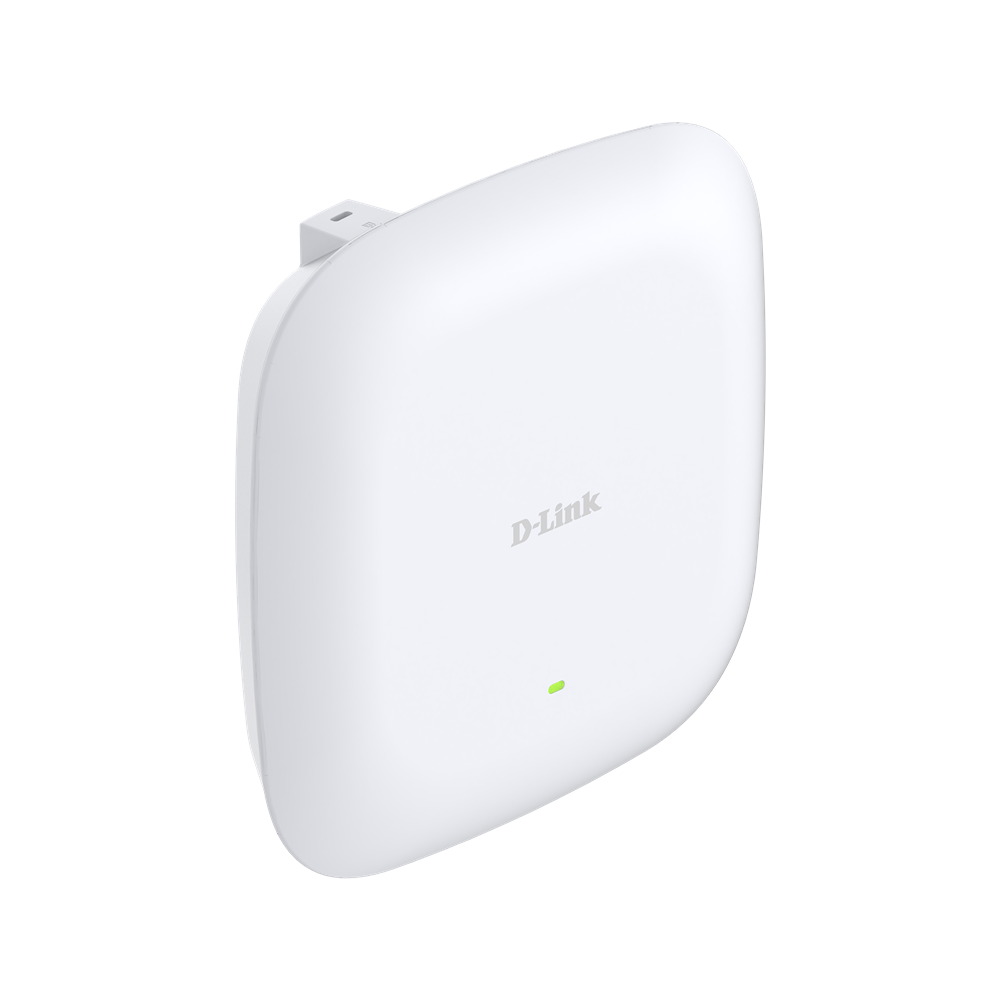

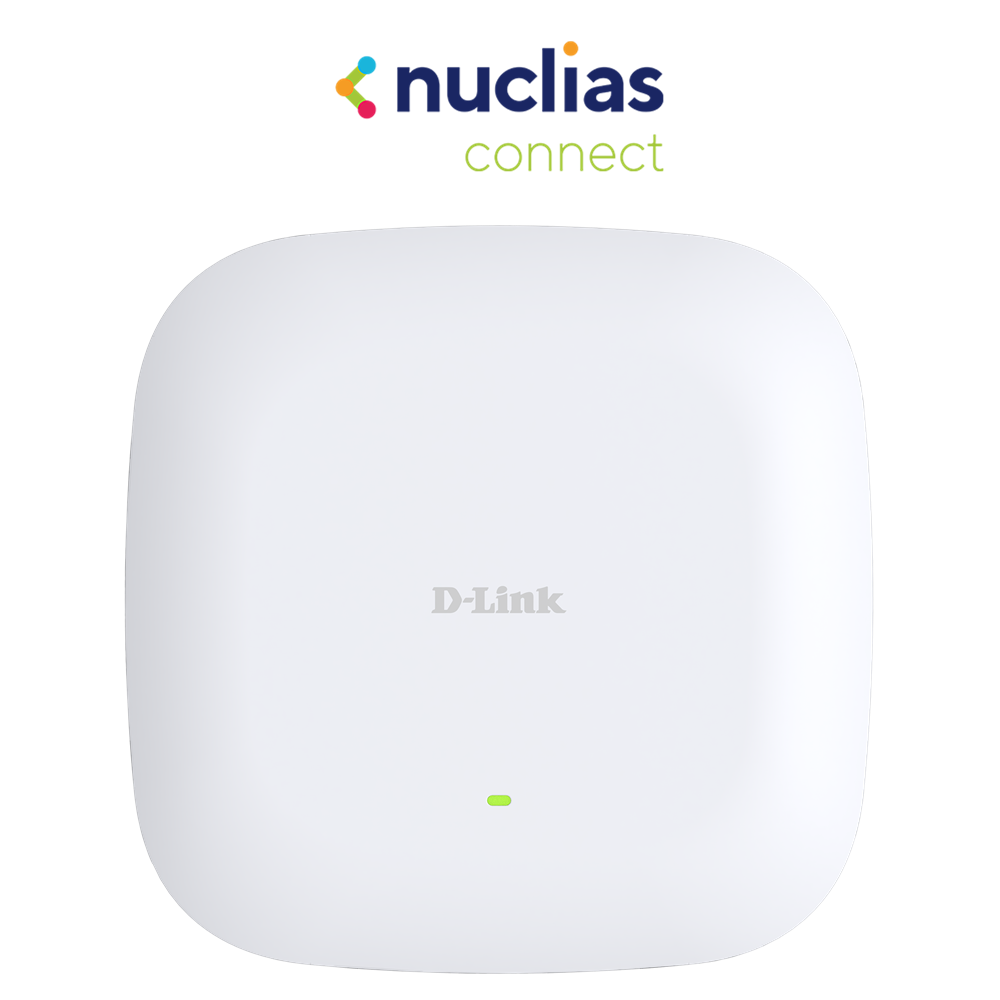

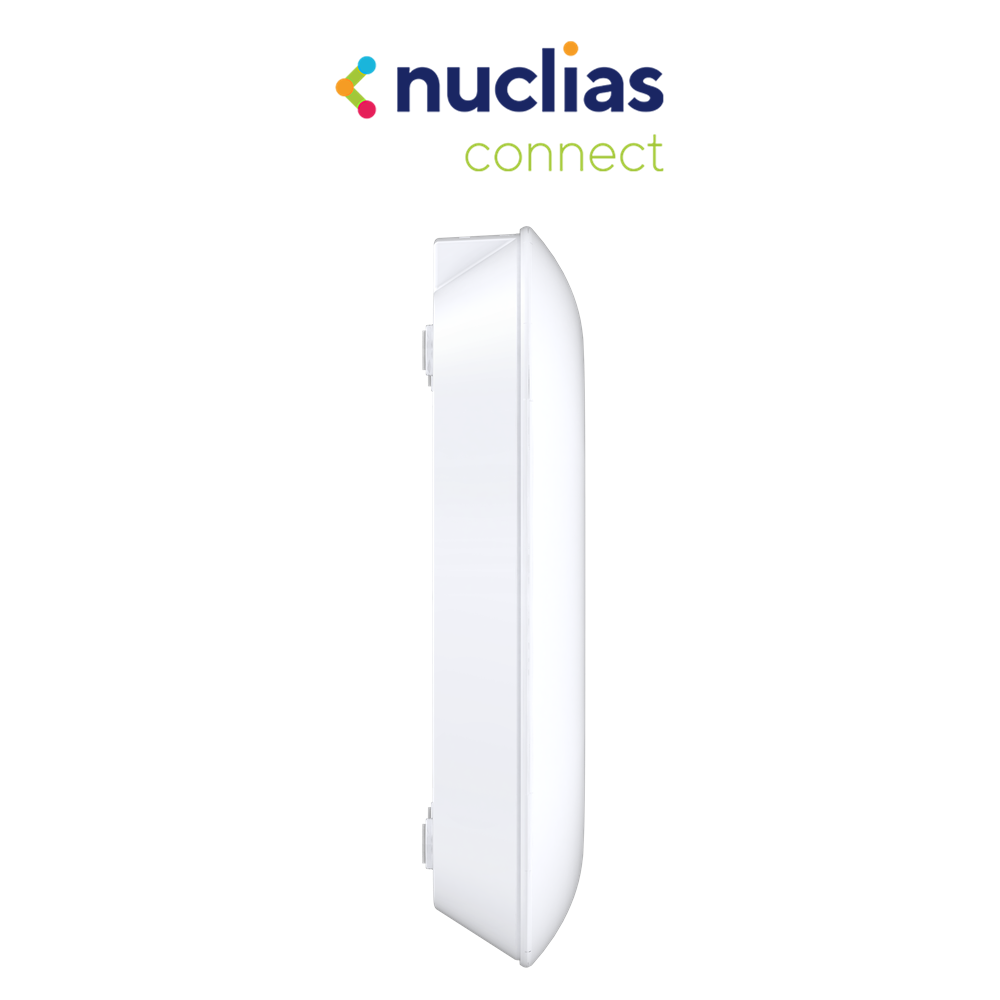

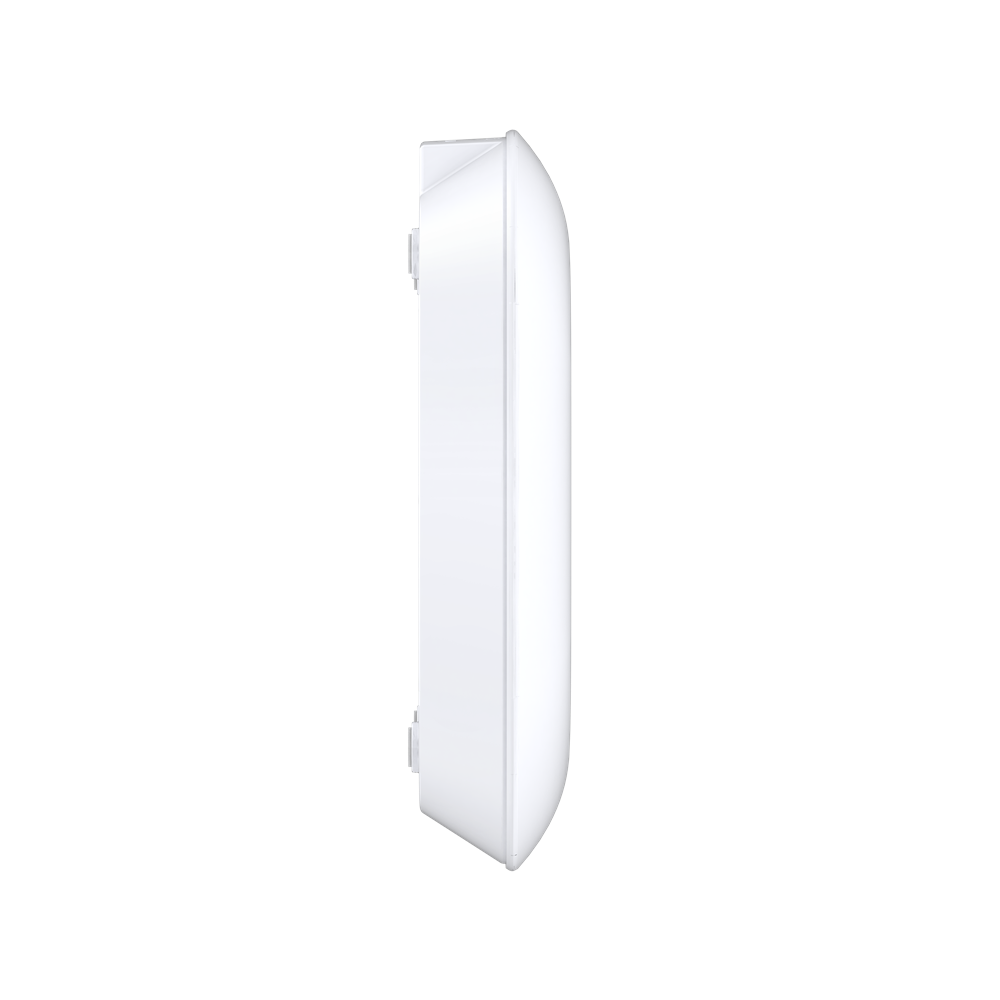

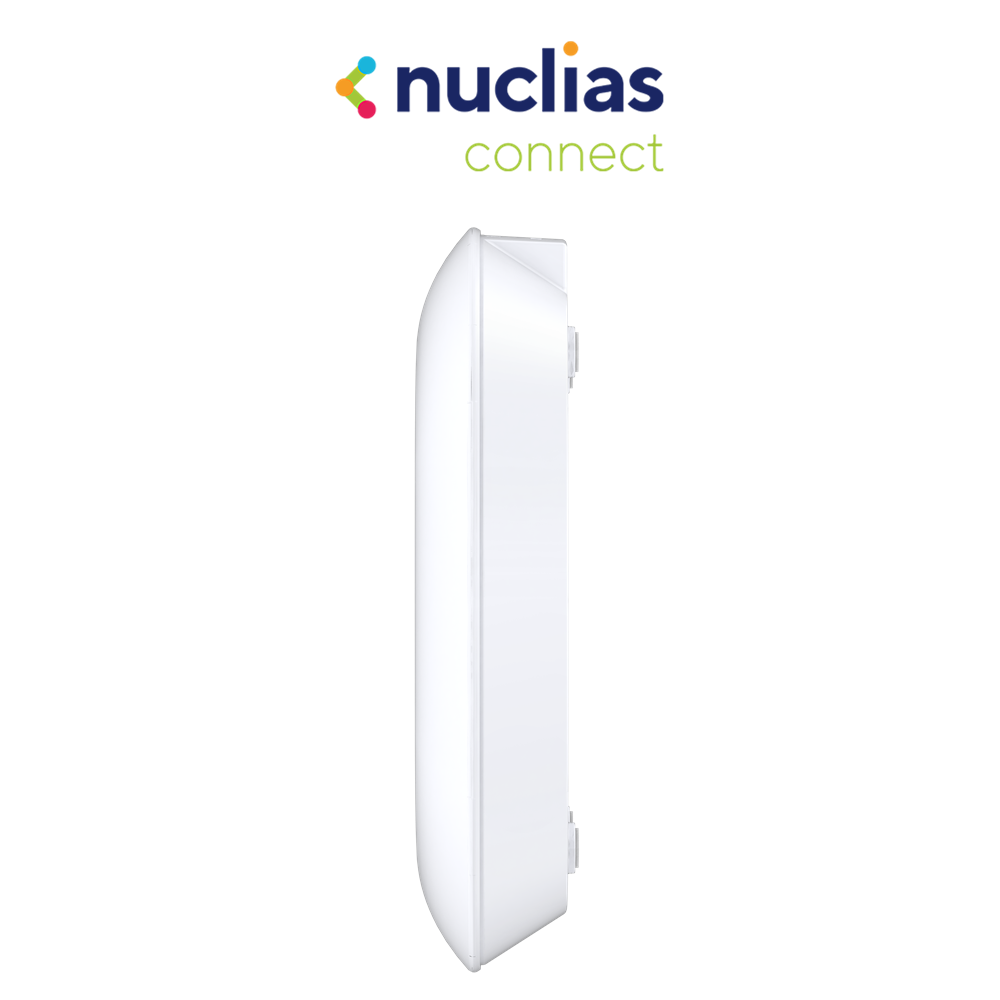

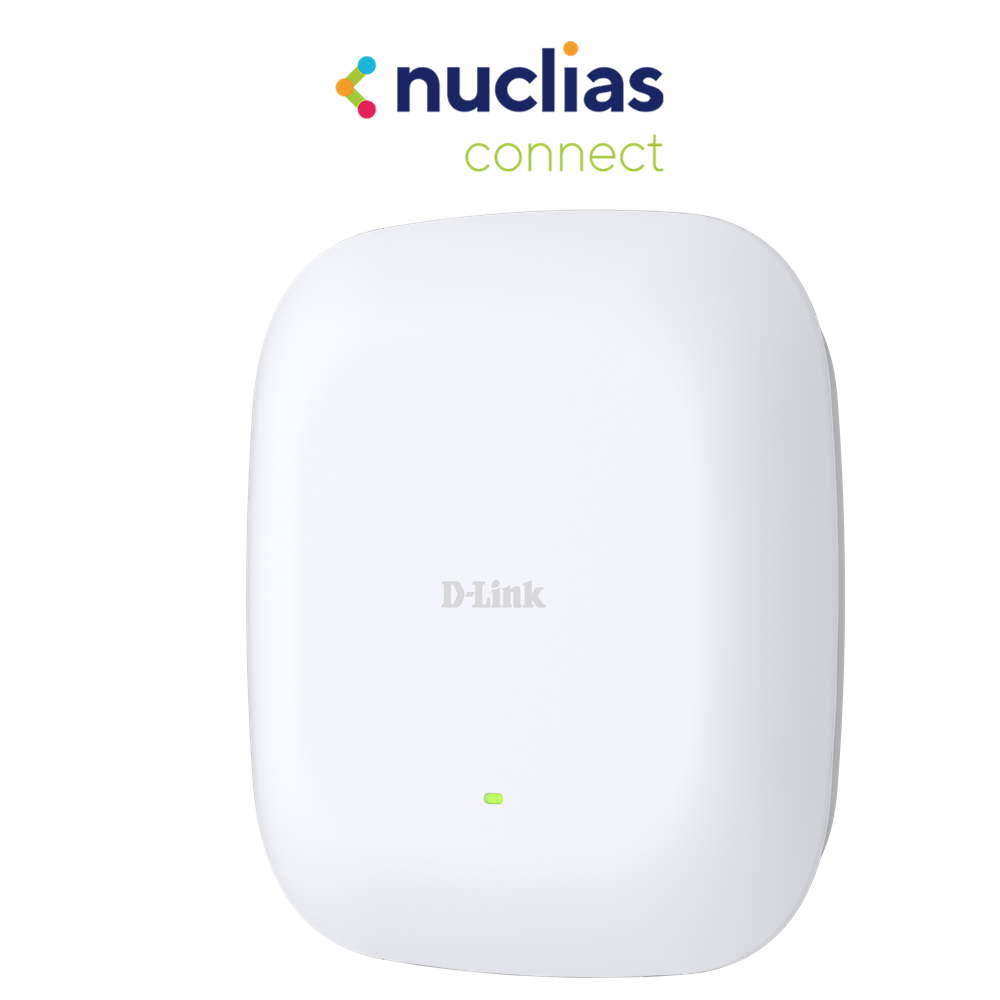

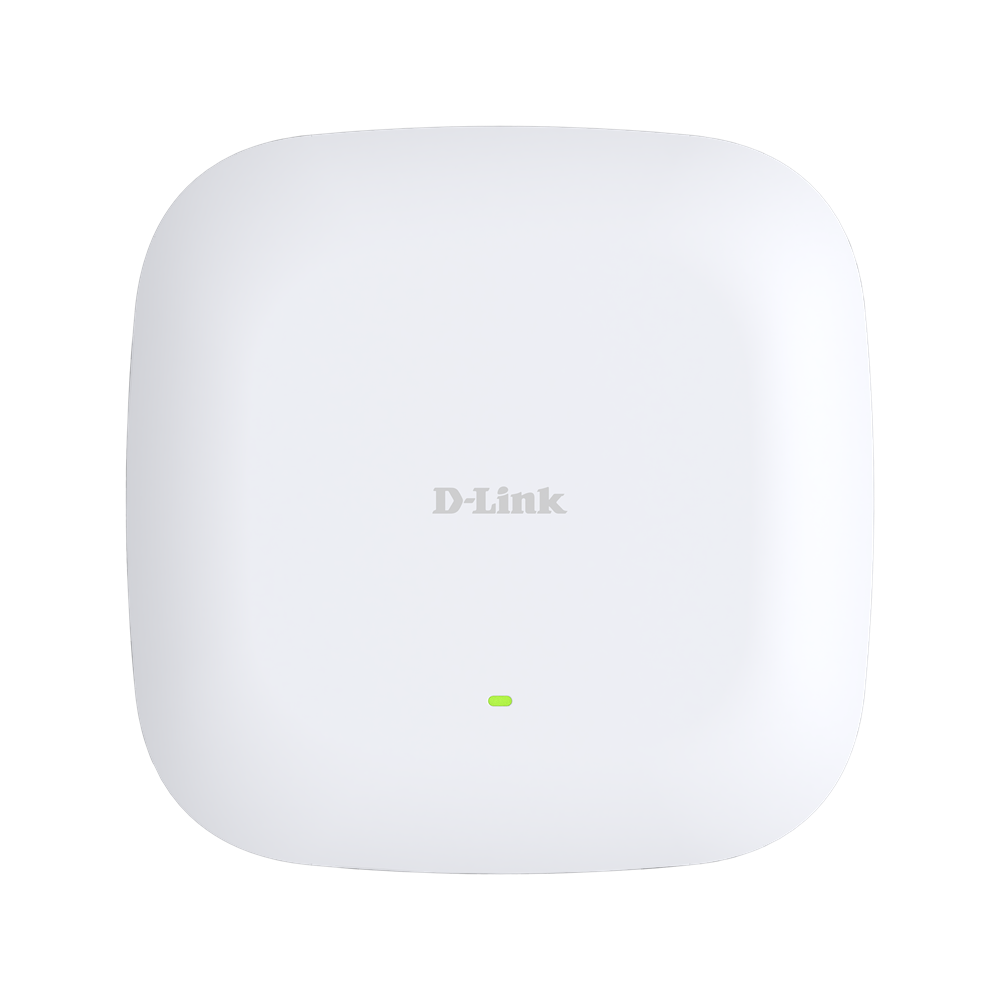

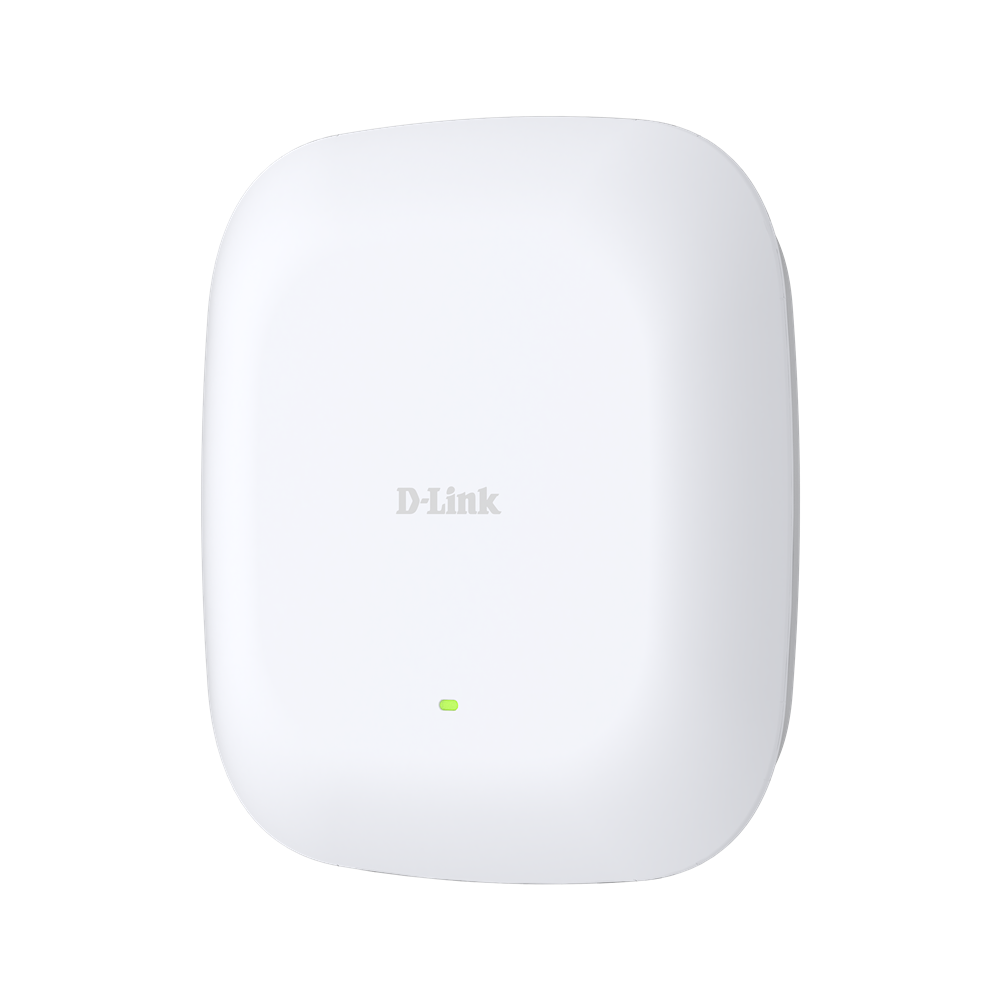

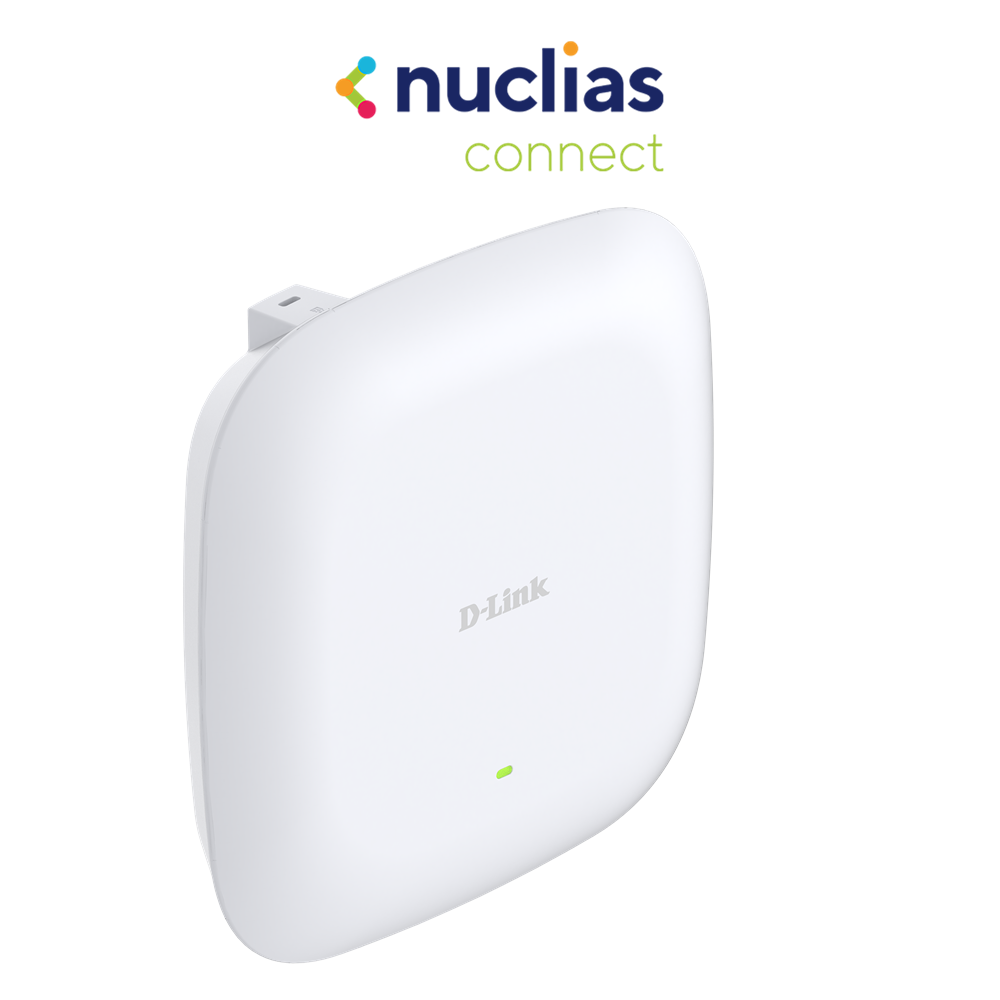

Wireless BE9500 Wi-Fi 7 Tri-Band PoE Access Point
DAP-E9560
- Easy to manage with Nuclias cloud-based or on-premises management solutions
- Wi-Fi 7 BE9500 Tri-band high-speed connectivity
- 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN
- Powered by 802.3bt PoE, USB-C adapter
- Max. channel bandwidth support (320MHz)
- 4096-QAM – Up to 20% faster than Wi-Fi 6
- Flexible use of multiple operating modes
- WPA3 encryption for enhanced Wi-Fi security
- Customizable Captive Portal for user access
- Multi-Link Operation boosts connection stability
User Benefits
Wi-Fi 7 Connectivity
Enables faster speeds, lower latency, and greater capacity for high-performance, future-ready networks
10G Ready for Wi-Fi 7
Equipped with 10G PoE and 2.5G ports, delivering wired backhaul and flexible uplink options to unleash the potential of Wi-Fi 7
Customizable Network Access
Supports Multi-SSID and Captive Portal for secure, customizable network access for different user groups

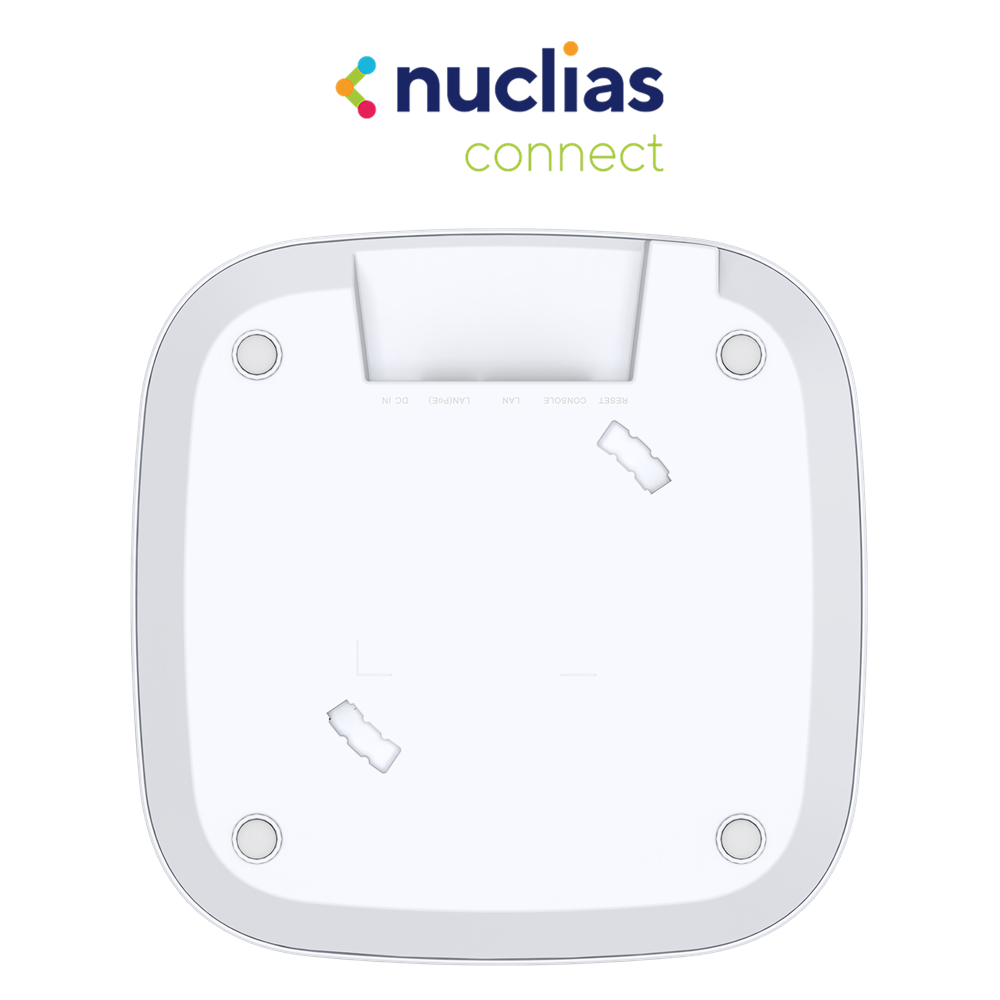

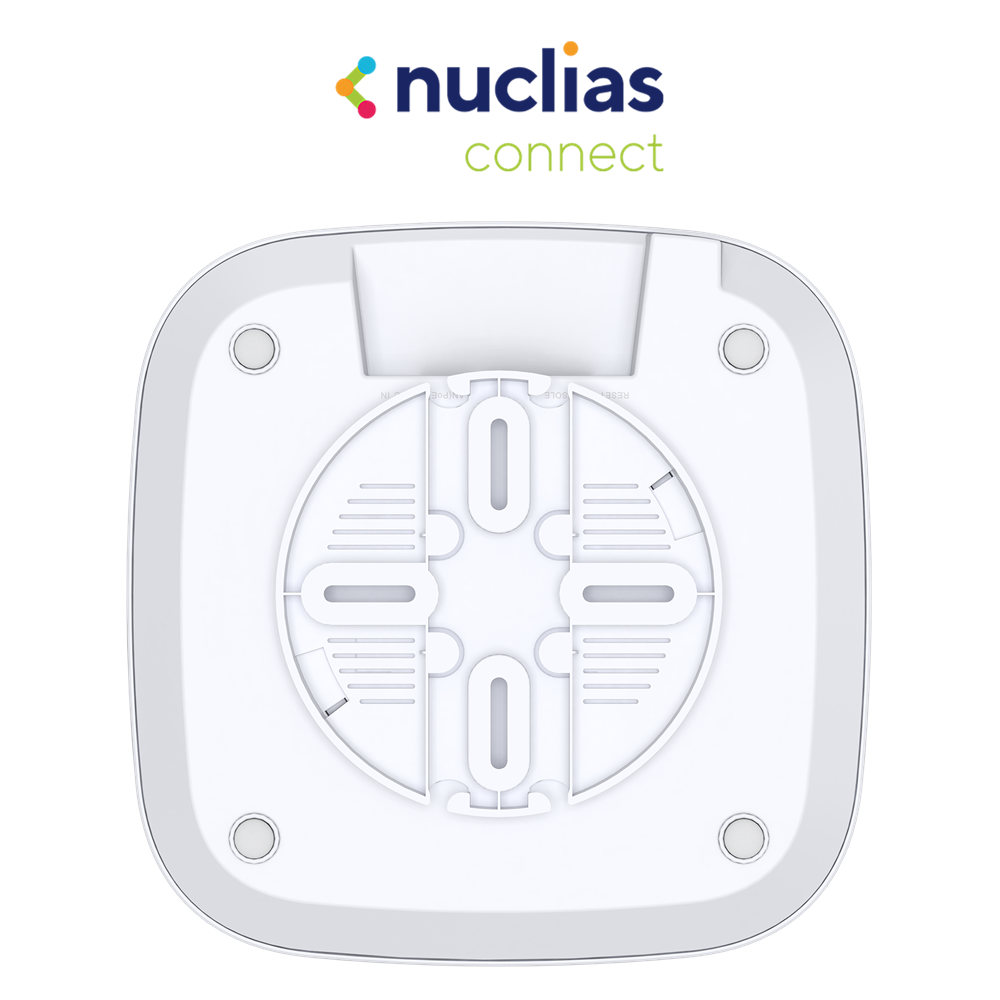

Flexible Installation Options

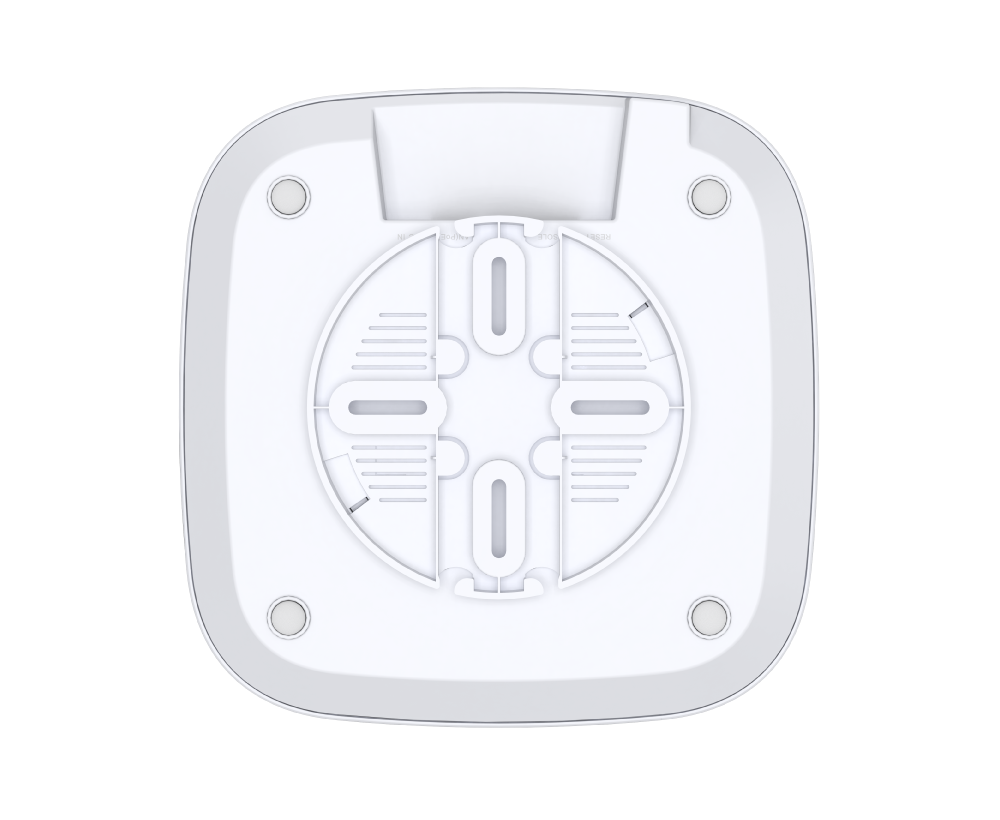

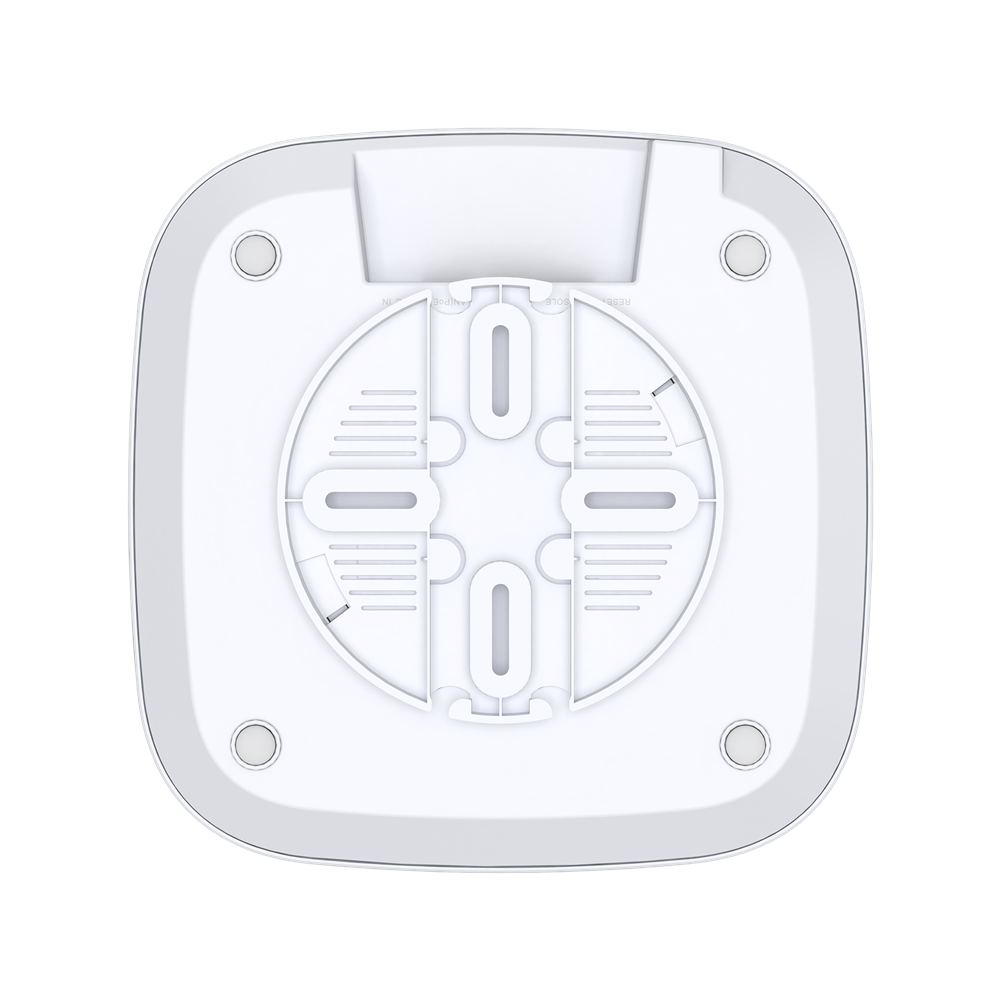

Supports PoE (802.3bt), USB-C, and comes with ceiling grid and wall/ceiling mounts for easy deployment in any environment
Smart Segmentation
Enhanced security with VLANs per SSID and MAC control for precise segmentation and restricted access
Centralized Management
Automate, monitor and manage your network with Nuclias Unity, Nuclias Hyper or Nuclias Connect.
Enhanced Performance for All Applications

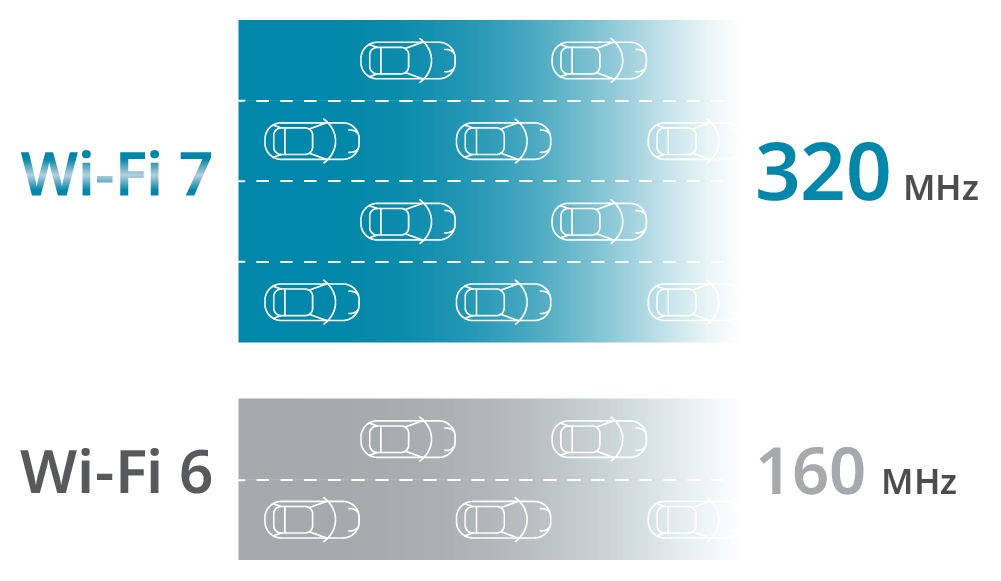

Double the bandwidth from 160 MHz to 320 MHz

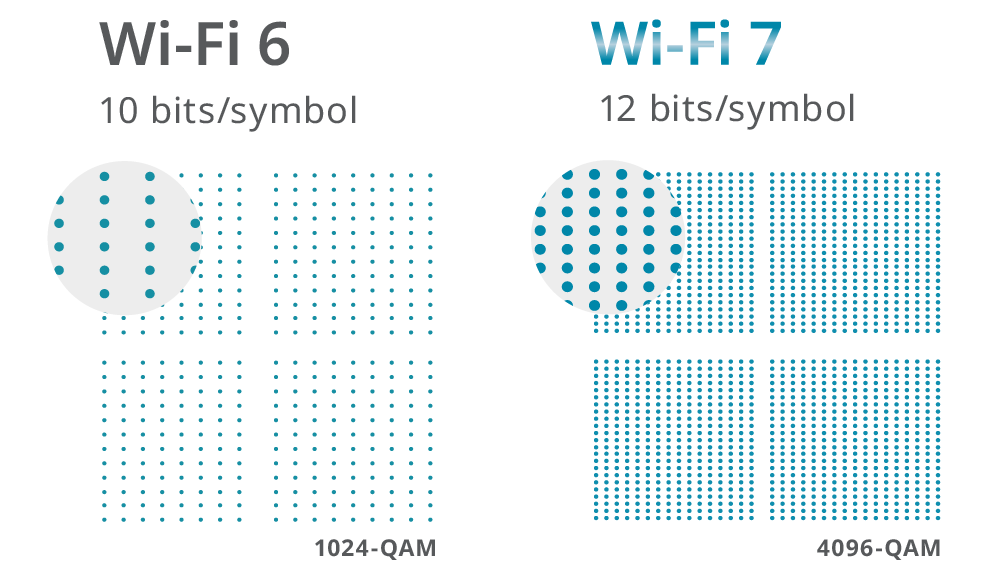

4096 QAM Modulation - 20 % data transmission increase than Wi-Fi 6

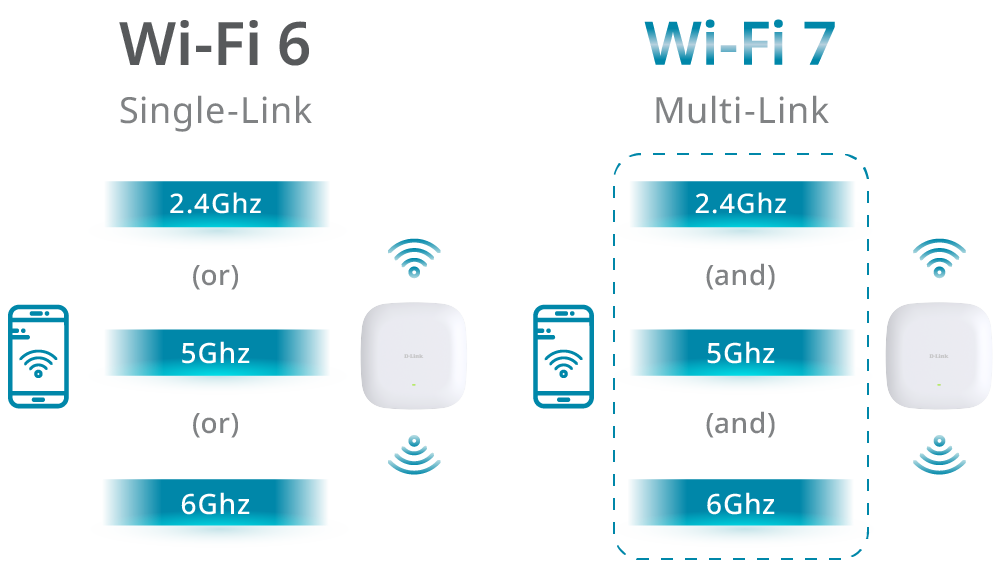

Multi-Link Operation (MLO) - Improves speed and stability

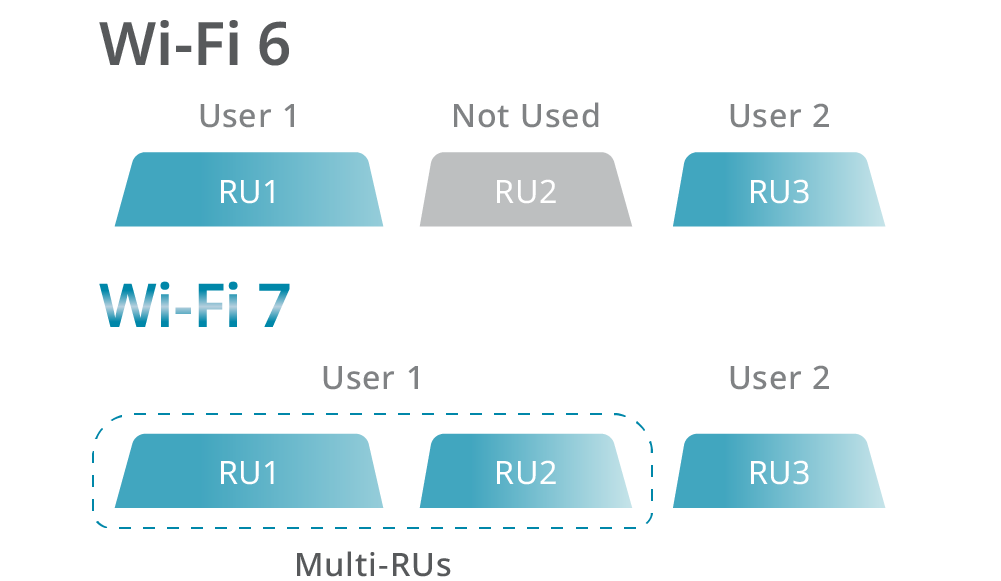

Multi-RUs and Puncturing – Channel bandwidth can be used more efficiently
Multiple Operation Modes
The DAP-E9560 can be configured to fit the needs of your network and optimize performance.
- Access Point
- Wireless Distribution System (WDS) with Access Point
- WDS/Bridge (no AP broadcasting)

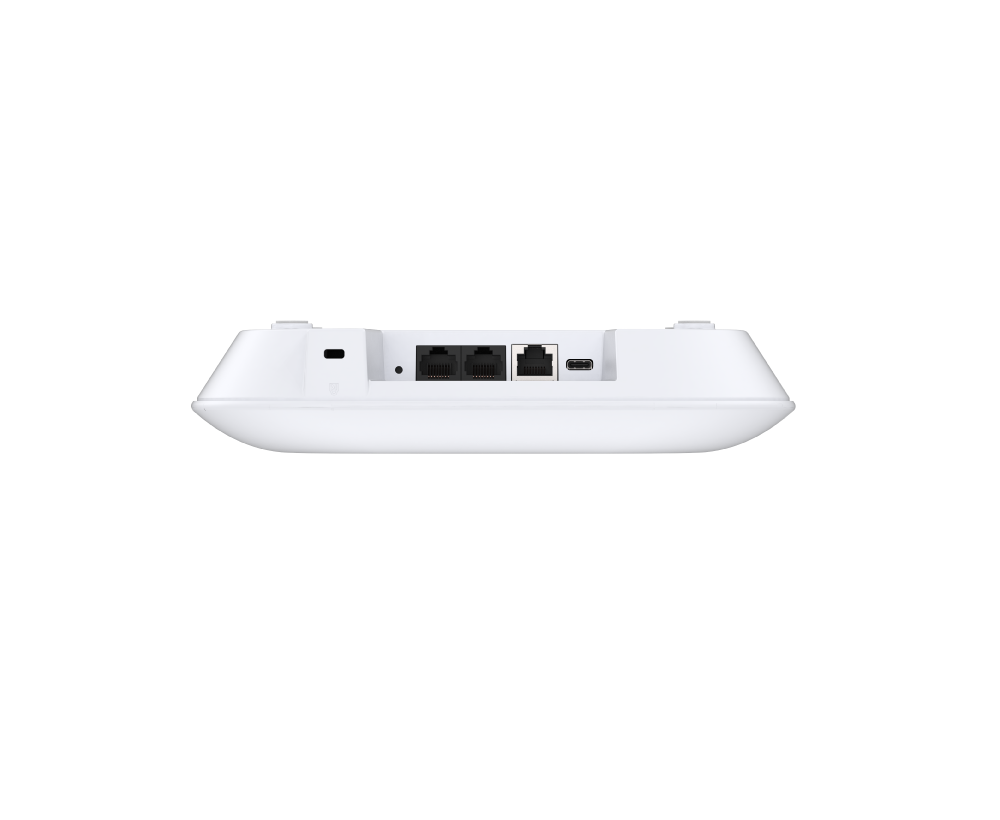

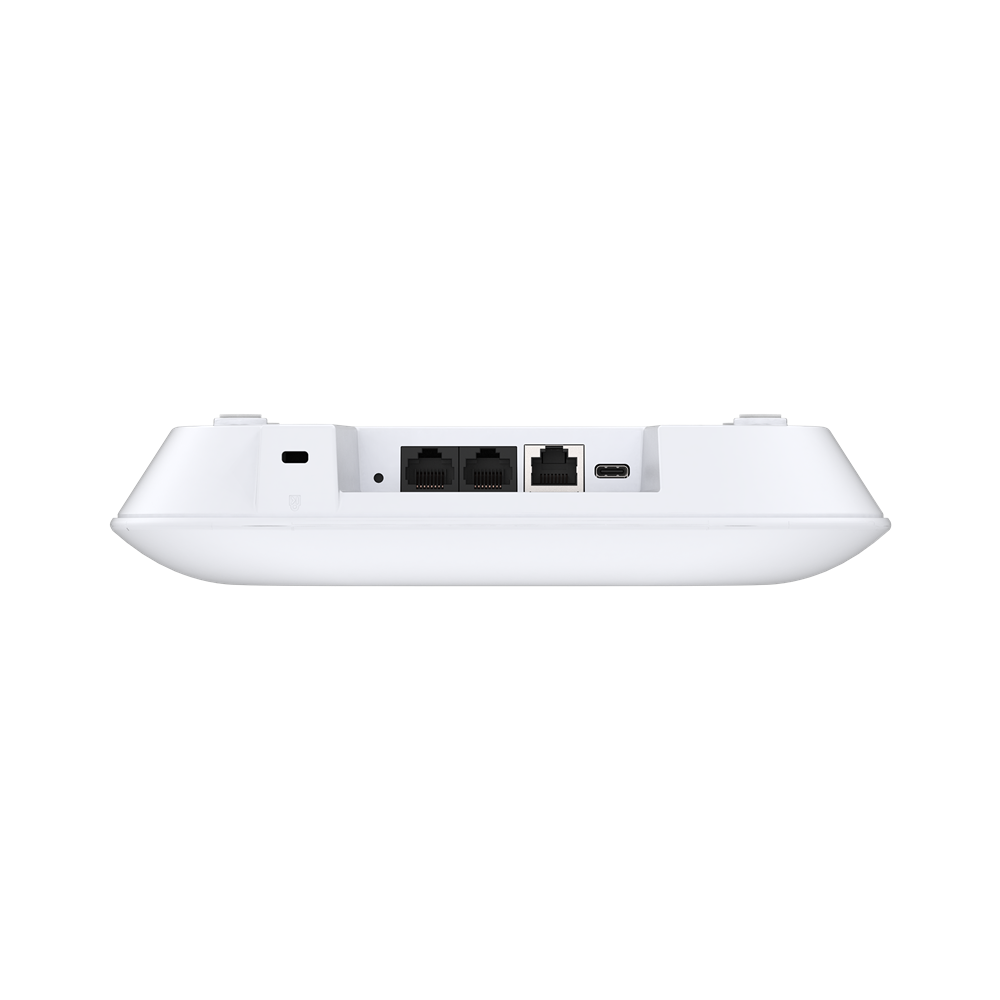

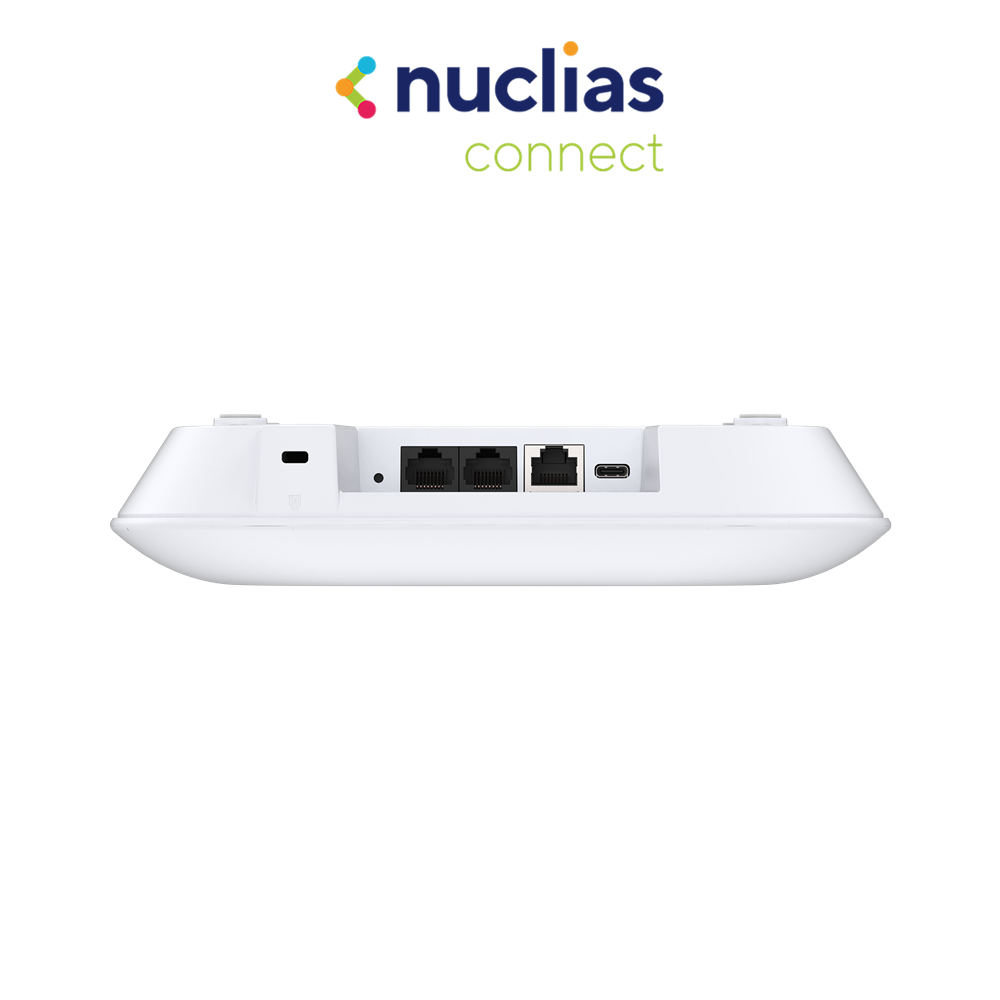

Optimized Wired Performance with 10G PoE and 2.5G Ports
Equipped with both a high-speed 10G PoE Ethernet port and an additional 2.5G Ethernet port, the DAP-E9560 ensures exceptional wired backhaul and flexible uplink options. This advanced design maximizes wired throughput for demanding enterprise environments, fully unleashing the ultra-fast potential of Wi-Fi 7 and supporting high-density, high-performance deployments.
Advanced, flexible network management
Nuclias provides flexible network management options to suit businesses of different sizes and deployment requirements.
Choose cloud-based management with Nuclias Unity,
enterprise-grade on-premises management with Nuclias Hyper,
or on-premises management with Nuclias Connect.
Connection Diagram
DAP-E9560 is designed for ultra-fast, secure, and efficient wireless connectivity to meet the demands of modern high-density environments. With Tri-band support, 320 MHz channels, 4096-QAM, and 10G Ethernet, it delivers exceptional performance for latency-sensitive applications like video conferencing, cloud access, and real-time collaboration.
Applications
SME
Department Store
University
SME
User benefits:
- High-speed data for better productivity
- Smooth video calls and collaboration
- Stable performance for many devices
- Fast roaming across floors
- Enhanced your productivity
- Secure access with WPA3 and VLANs
Learn more:
- Standard Smart Switch: DXS-1210-12SC
- Management Platform: Nuclias Unity, Nuclias Hyper or Nuclias Connect
- Standard Smart PoE Switch: DMS-1250-18P
- Standard Smart Switch: DMS-1250-28
Department Store
User benefits:
- Rapid fault recovery for reliable performance
- Comprehensive security to protect critical data
- Supports long-distance connectivity
- VLAN and QoS to optimize the learning experience
Learn more:
- Aggregation Switch: DXS-3130-32SY
- Management Platform: Nuclias Unity, Nuclias Hyper or Nuclias Connect
- Standard Smart PoE Switch: DMS-1250-28P
- Stackable Smart Switch: DGS-1530 Series
University
User benefits:
- Reliable performance in high-density areas
- Low latency for online learning and research
- Fast roaming between buildings
- Supports AR/VR and 4K applications
- Secure access for all user groups
Learn more:
- Core Switch: DXS-3610-54S
- Management Platform: Nuclias Unity or Nuclias Hyper
- Aggregation Switch: DXS-3130-32SY
- Standard Smart PoE Switch: DMS-1250-28P
- Unmanaged Switch: DMS-1024
| Management Solution : | Nuclias Unity|Nuclias Connect|Nuclias Hyper |
| Wi-Fi Configuration : | Wi-Fi 7|Wireless BE9500|2.4 GHz / 5 GHz / 6 GHz Tri-Band |
| Indoor or Outdoor : | Indoor Deployment |
| LAN Interface : | 1x 10Gbps PoE + 1x 2.5Gbps |
| Operation Modes : | AP|WDS (Site-to-Multisite)|WDS+AP |
| PoE Standard : | PoE++ 802.3bt |
| Security : | 802.1x|WPA/WPA2-EAP| WPA/WPA2-PSK|MAC filtering|WPA3 |
| Antenna Type : | Built-in |
| Number of SSIDs : | 8 |
| Auto Channel Selection : | Yes |
| Dimensions (Size) : | 223 x 223 x 47 mm |
| Warranty : | Limited Lifetime |
| Wi-Fi Bands : | Tri-Band 2.4, 5 and 6 GHz |
| Wi-Fi Type : | Wireless BE9500 |
| Central Management : | Nuclias Connect Controller |
| AP Design : | Indoor|Built-in Antennas|PoE++ |
| Management Options : | Standalone|Controller Managed |
