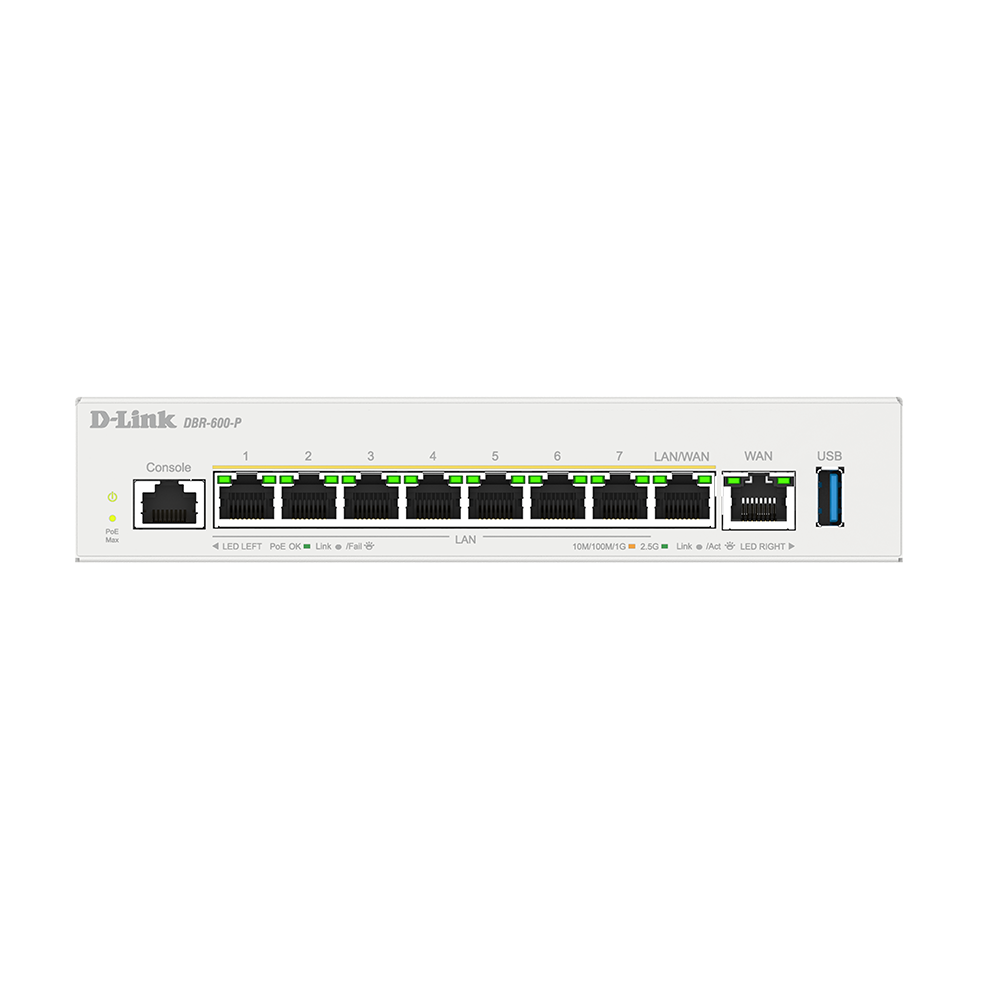

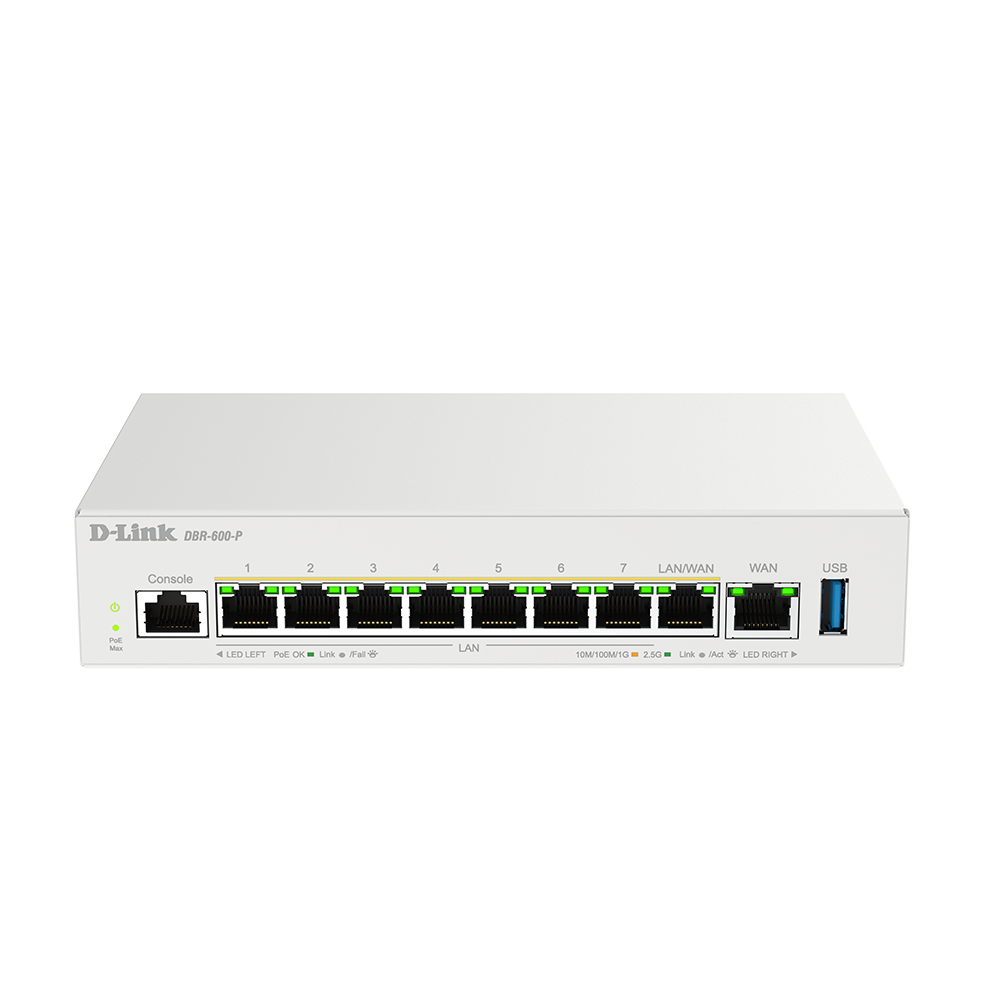

Multi-WAN 2.5G PoE Smart Office Series VPN Router
DBR-600-P
- Built-in management of up to 10 x DBR-X3000-AP Smart Office Series Access Points
- 1 x 2.5G WAN port delivers high-speed connectivity
- Up to 8 x 2.5G PoE LAN ports with a 123W power budget
- USB 3.0 supports integration with D-Link 4G / 5G dongles
- Multi-WAN ensures stable and balanced connectivity
- Advanced firewall protects the network from threats
- Comprehensive network features meet all operational needs
- Bandwidth management prioritises critical services
- User-friendly Web GUI for centralized monitoring and management
- Made in Taiwan
Multi-Gigabit Business VPN Router with Built-In AP Management
The DBR-600-P is equipped with all-port 2.5G interfaces and a powerful processor, delivering high-performance throughput and seamless connectivity across network devices. Its multi-WAN feature ensures continuous and reliable network service around the clock. With robust firewall and VPN capabilities, it secures both inbound and outbound network access, guaranteeing safe data transmission for all connected devices and remote sites. Built-in AP management and PoE technology simplify the maintenance and installation of wireless access points, making it an ideal solution for small businesses seeking efficient and comprehensive networking features.
Send Large Files in a Snap
Enjoy faster 2.5Gbps data transfers, saving time and reducing wait
Reliable Multi-WAN Connectivity
Up to 3 WAN ports for uninterrupted connectivity and optimised traffic
PoE Ports for Hassle-Free Deployment
PoE-enabled ports simplify installation and power up 8 devices
Comprehensive and Robust VPN
Powerful VPN ensures secure access for business offices and remote workers
Access Under Protection
Firewall protection keeps your network safe from unauthorised access and cyber threats
One-stop APs Management
Effortlessly monitor and control Smart Office Series Access Points with the built-in management platform
More Than Just a USB Port
Add a backup WAN connection with an optional D-Link 4G/5G dongle or add additional external storage
Smart Performance Optimisation
Prioritising critical applications and balancing traffic to avoid congestion
2.5G Connectivity
Drive Tomorrow's Success with Enhanced Performance

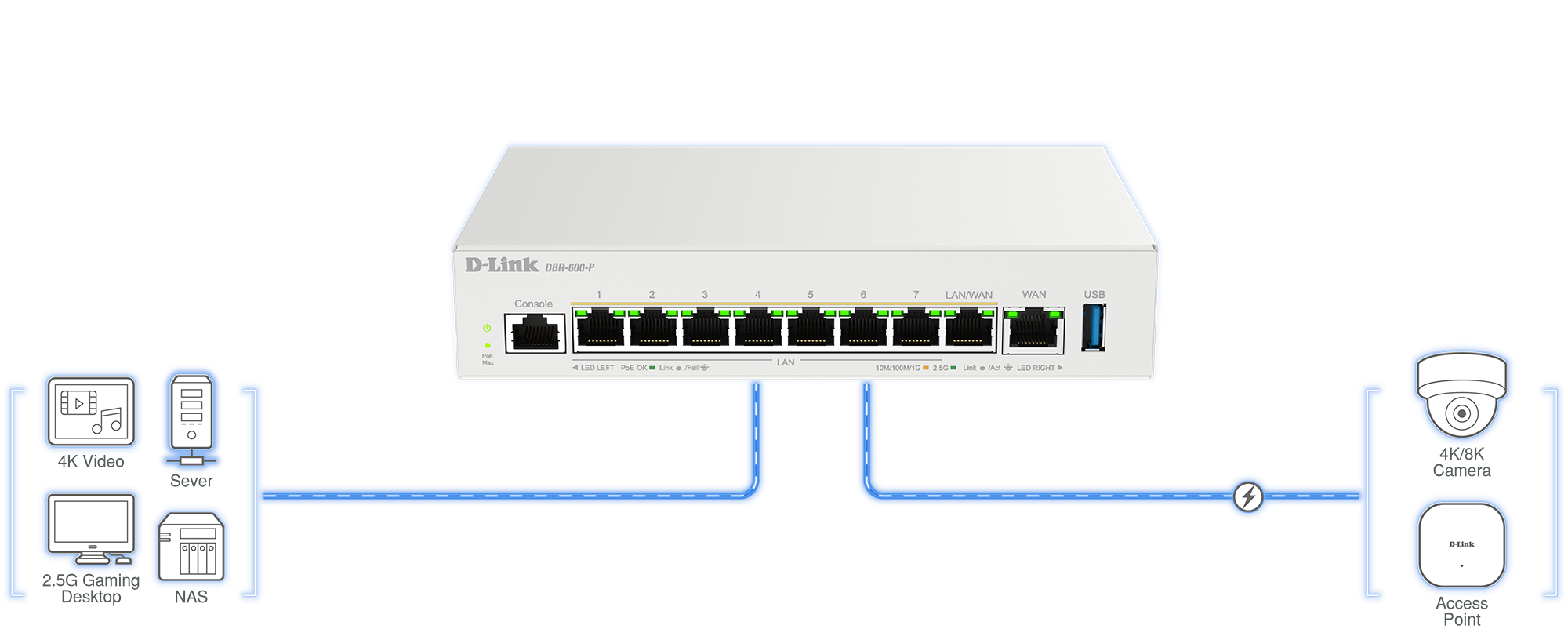

The DBR-600-P features 2.5G interfaces, delivering higher throughput to support faster file transfers and triple-play services without congestion or latency. This enhances real-time communication and ensures more stable, reliable connectivity for your business. Its eight PoE-enabled ports, with a total power budget of up to 123W, simplify and reduce installation costs by delivering both power and data through a single cable - ideal for devices such as IP Cameras and wireless Access Points.
Multi-WAN Experience
Unbeatable Network Stability
In addition to a WAN/LAN port that can be configured as a secondary WAN, the USB port extends functionality by integrating with an optional D-Link 4G/5G dongle for WAN failover or load balancing. It can also serve as external storage for file sharing or log saving.
With support for up to three WAN ports, the DBR-600-P maintains connectivity even if the primary connection fails — automatic failover seamlessly switches to a backup connection. Load balancing distributes network traffic across multiple WAN connections, ensuring reliable performance and optimised traffic flow to keep your business online and efficient, without service interruptions.

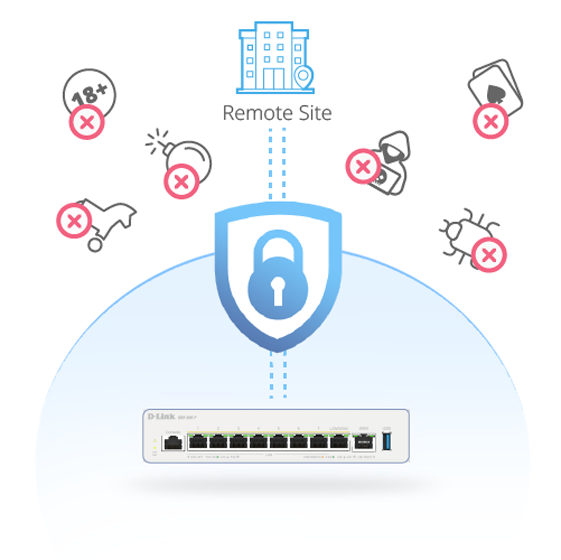

Robust Security Always Secure
Your Network and Access
Comprehensive built-in advanced security features, such as a firewall, with IPS and URL filtering, ensure that the internal network is securely protected. Enhanced VPN interoperability and strong encryption improves secure connection establishment with any device, deeply protecting data from unauthorised access and maintaining privacy across all network interactions.

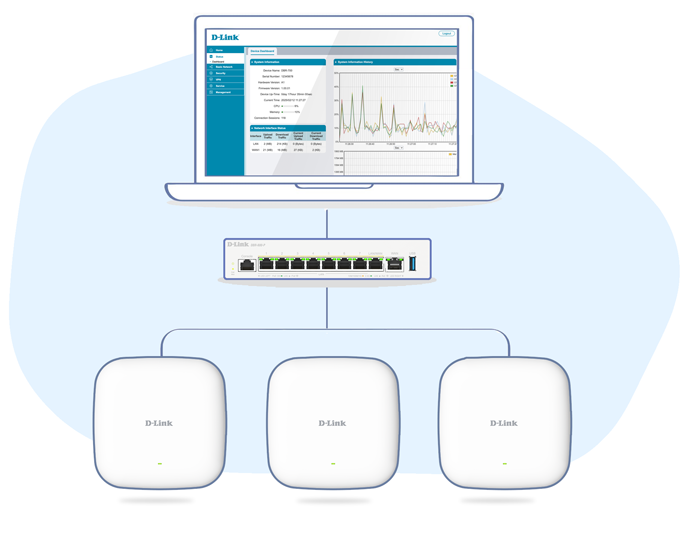

One-Stop Wi-Fi Access Point Management
Through an intuitive web UI, the DBR-600-P centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 10 Smart Office Series APs (DBR-X3000-AP), streamlining administrative tasks such as radio configuration, client monitoring, and access control. Hassle-free management and real-time insights into network activity empower business owners to enhance operational efficiency.

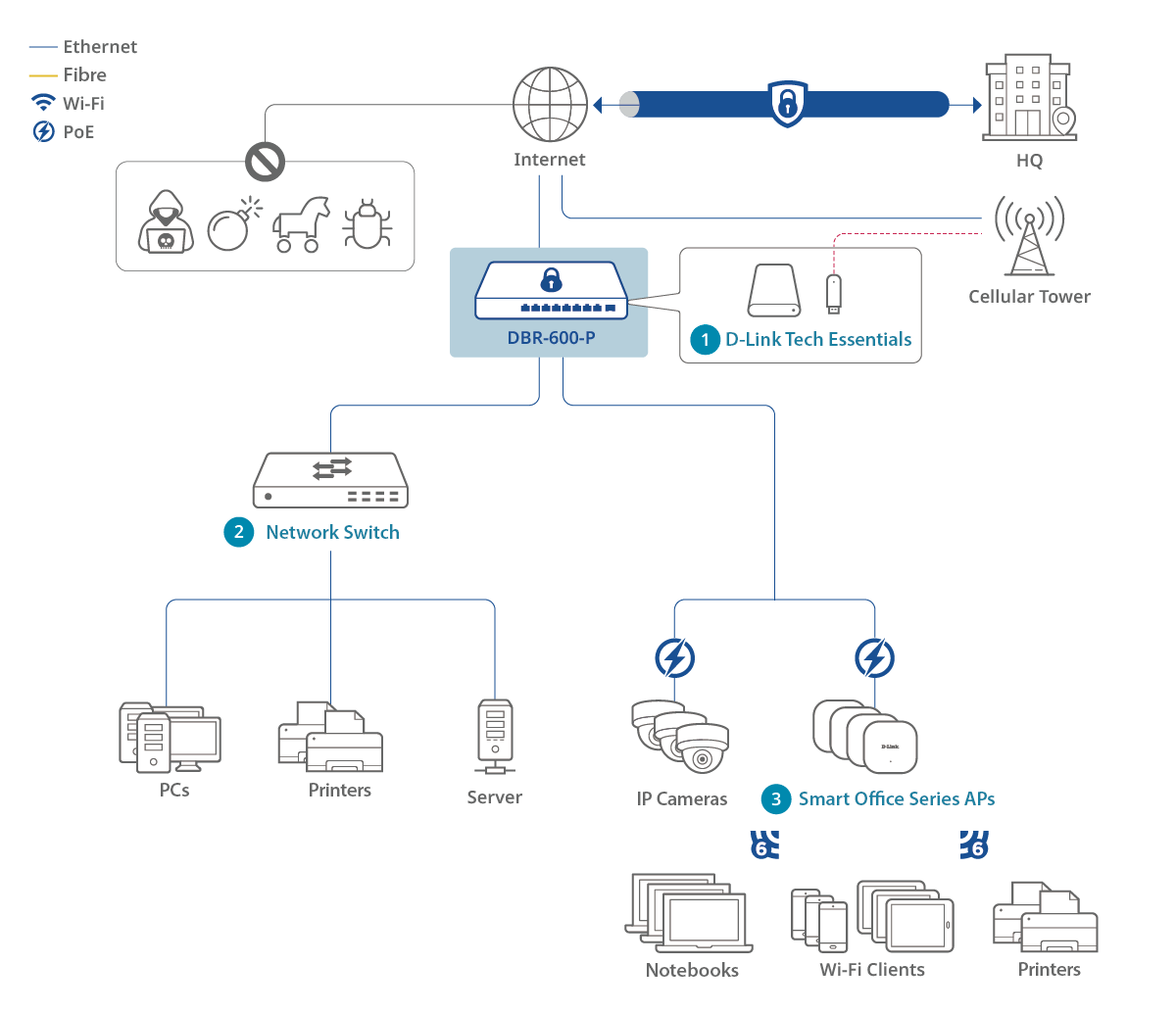

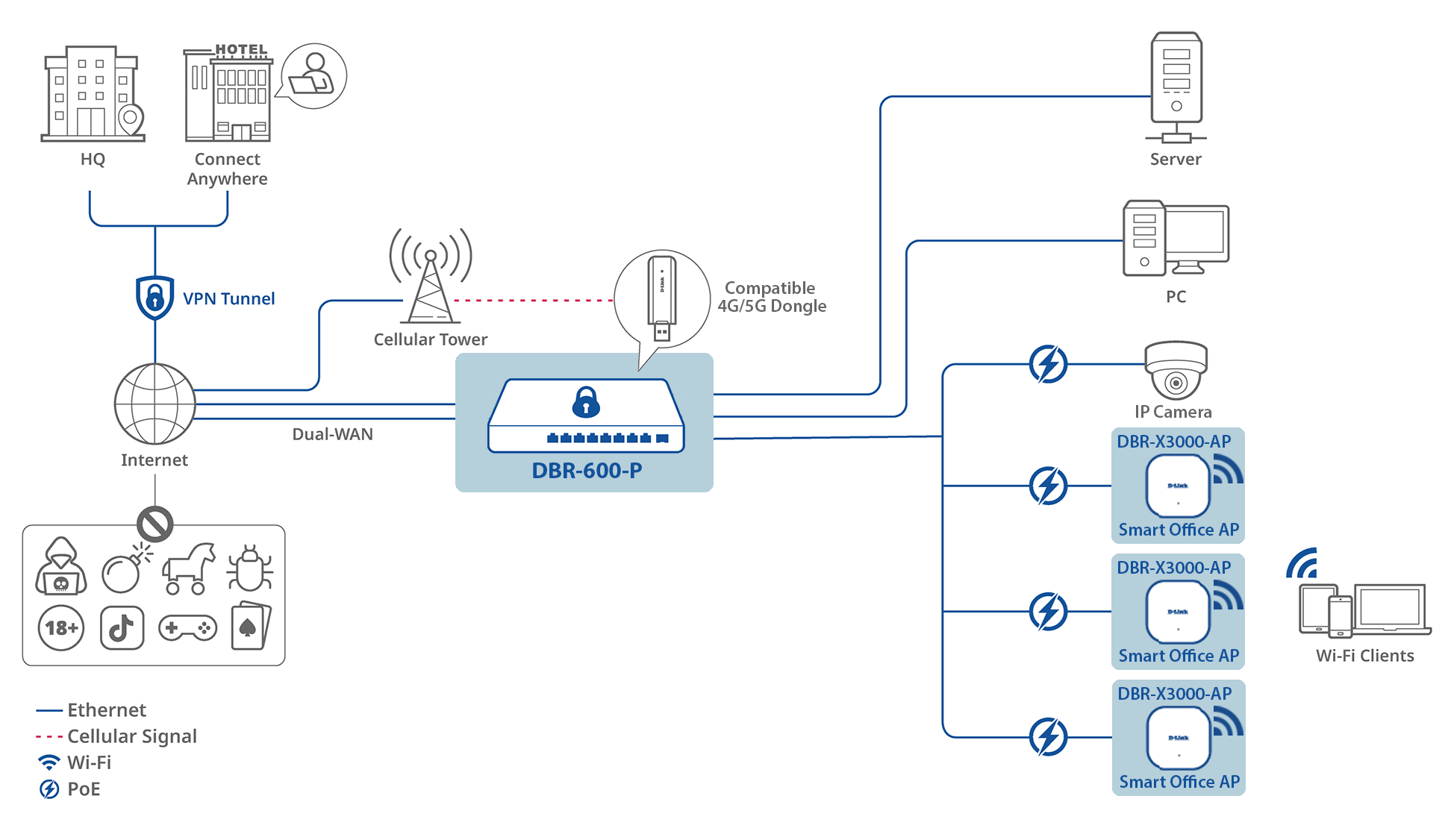

Typical Business Topology
Explore the capabilities of the DBR-600-P Business Router through our detailed topology diagram. It features high port density with 2.5G-speed connectivity and offers rapid, flexible network expansion through its versatile interfaces. For teleworkers, the DBR-600-P ensures seamless access to the office network anytime, anywhere. For small offices, it effectively blocks malicious traffic, safeguarding your network. Additionally, the built-in management platform simplifies AP administration, enhancing efficiency and overall performance.
Real-World Applications
Smart Office
Kindergarten
Smart Office
User benefits:
- Ensuring secure remote access with robust protection
- 2.5G high-speed connectivity for efficient productivity
- Multi-WAN offers non-stop network services
- Effortless and budget-friendly PoE deployment
- Centralised wireless monitoring and management
Learn more:
- 4G LTE USB Adapter: DWM-222W
- Network Switch: DMS-1250-12
- Smart Office Series Access Point: DBR-X3000-AP

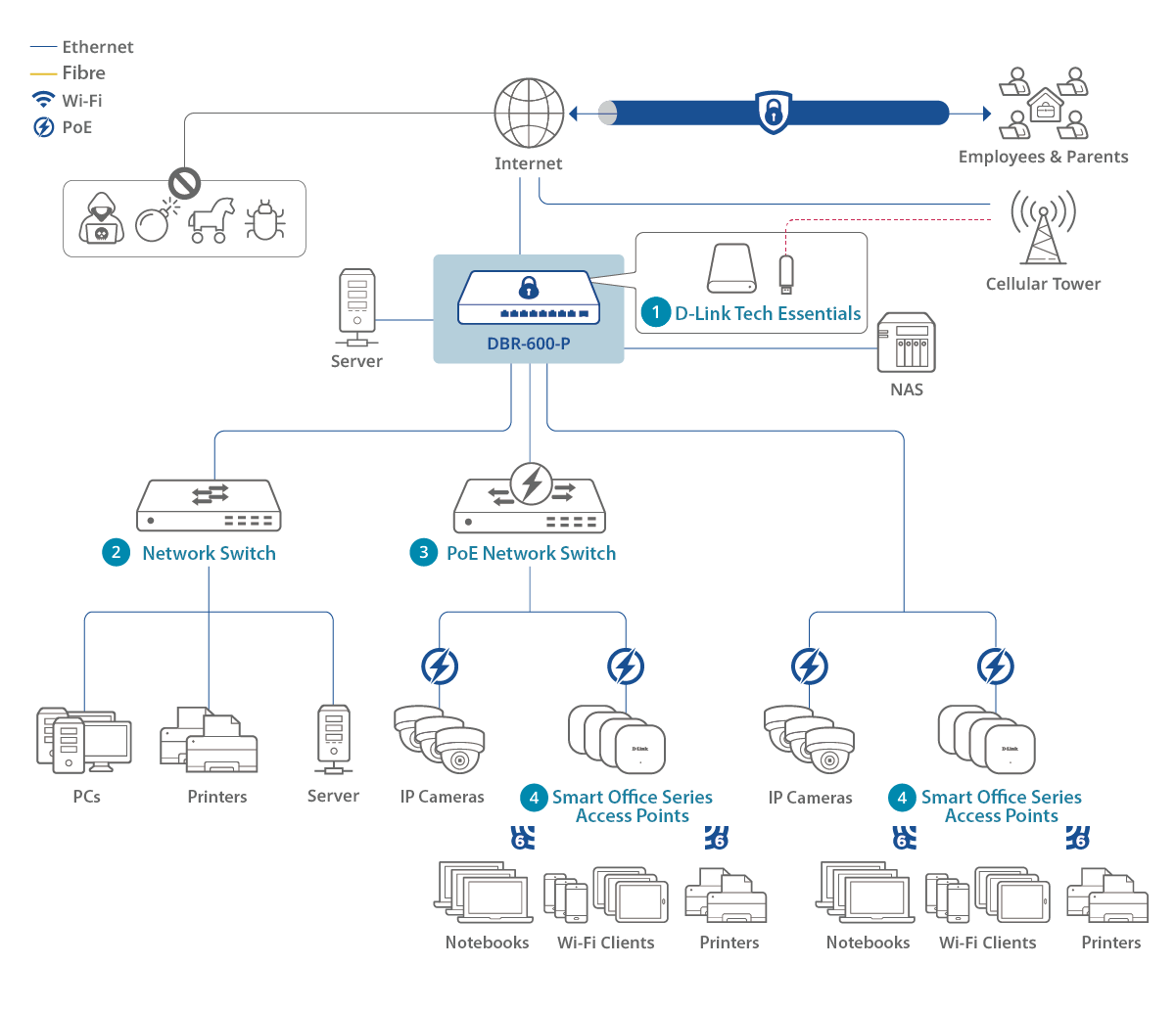

Kindergarten
User benefits:
- Multi-WAN with load balancing for uninterrupted service
- Secure parent access to the learning system and area footage
- Set browsing levels to safeguard children's online behaviour
- Unified configuration of wireless devices for easy management
Learn more:
- 4G LTE USB Adapter: DWM-222W
- Network Switch: DMS-1250-12
- PoE Network Switch: DMS-1250-18P
- Smart Office Series Access Point: DBR-X3000-AP
| WAN Type : | Multi WAN|4G LTE (via USB)|Ethernet|5G (via USB) |
| Design : | Desktop |
| WAN Ports : | up to 2 |
| WAN Port Type : | 2.5 Gbps |
| Ethernet Ports : | up to 8 |
| LAN Port Type : | 2.5 Gigabit |
| Wireless : | Controller for up to 10 Smart Access Points |
| WAN Failover : | Yes |
| VPN : | L2TP| PPTP|IPSec|OpenVPN|GRE|Wireguard |
| VPN Tunnels : | 50 |
| Firewall Throughput : | 2000 Mbps |
| Concurrent Sessions : | 65,000 |
| Firewall Policies : | 300 |
| Rack Mountable : | No |
| Dimensions (Size) : | 120 x 190 x 38 mm |
| Warranty : | Limited Lifetime |
| Central Management : | DBR-series Business Router |
