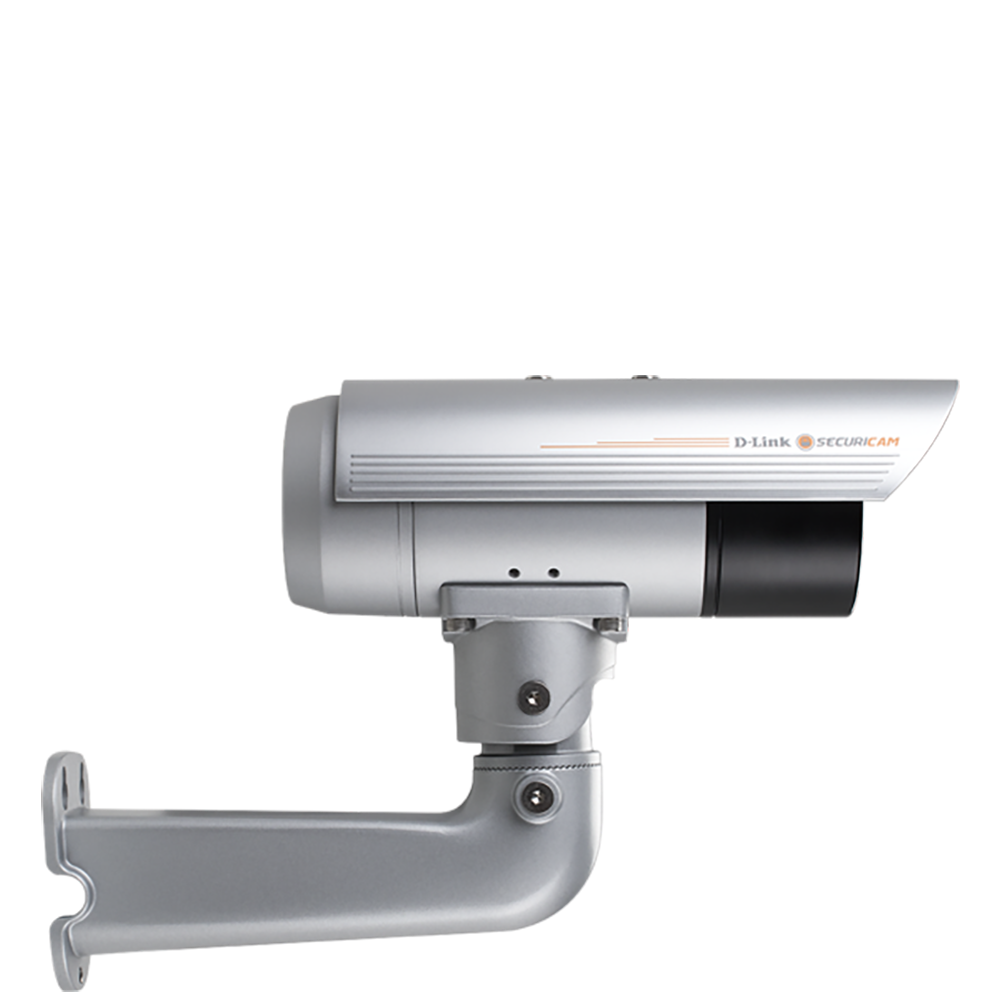

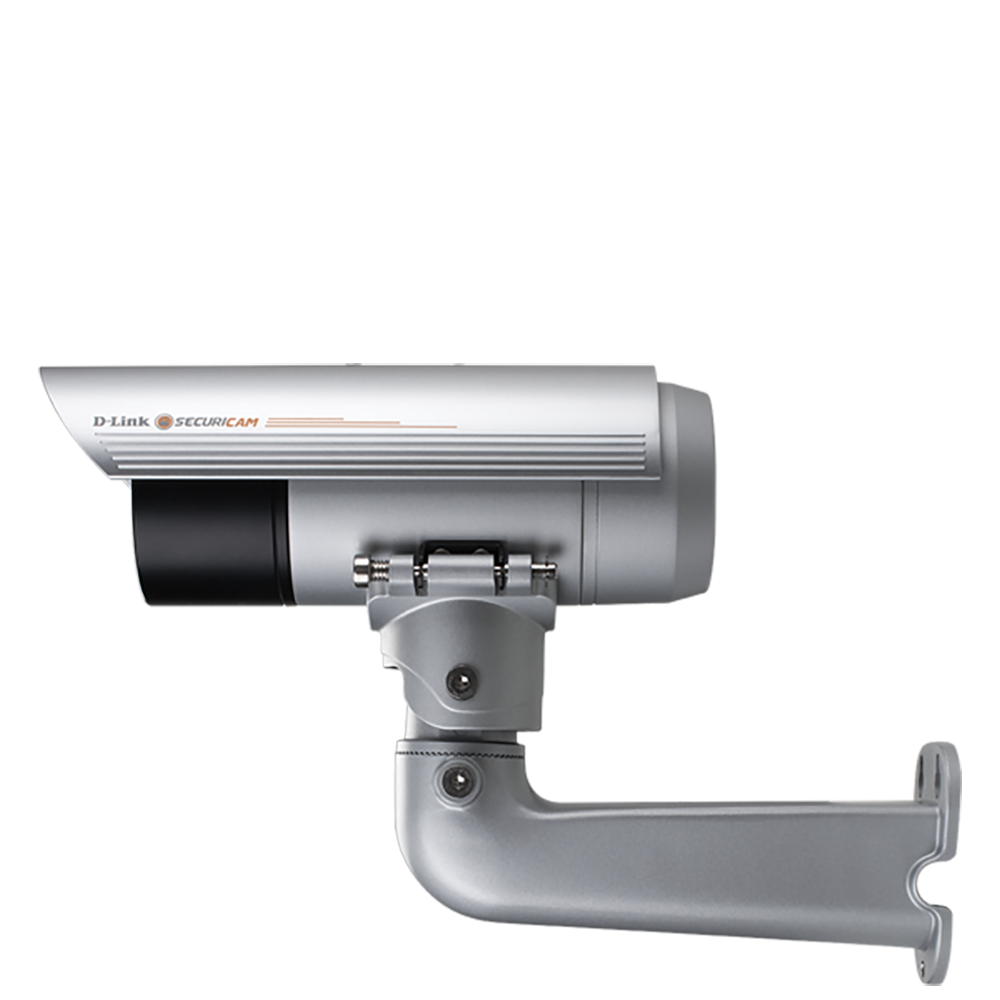

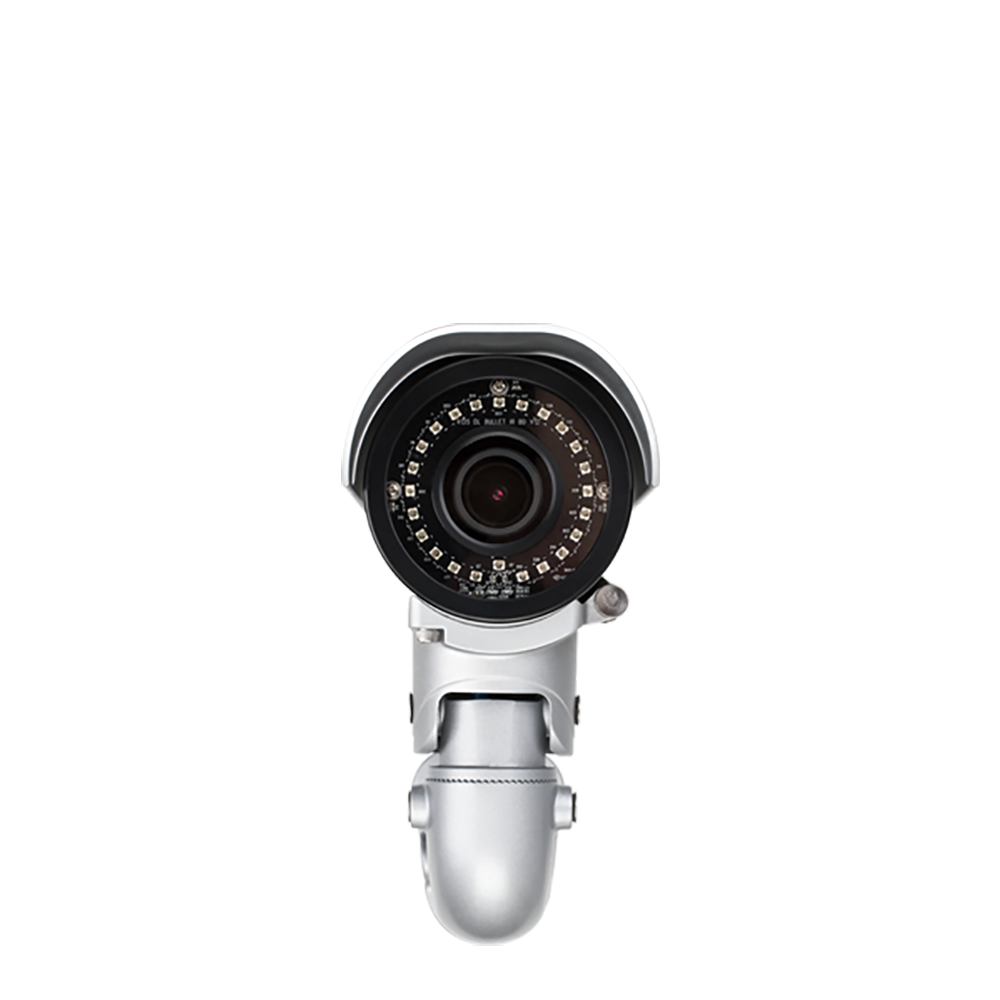

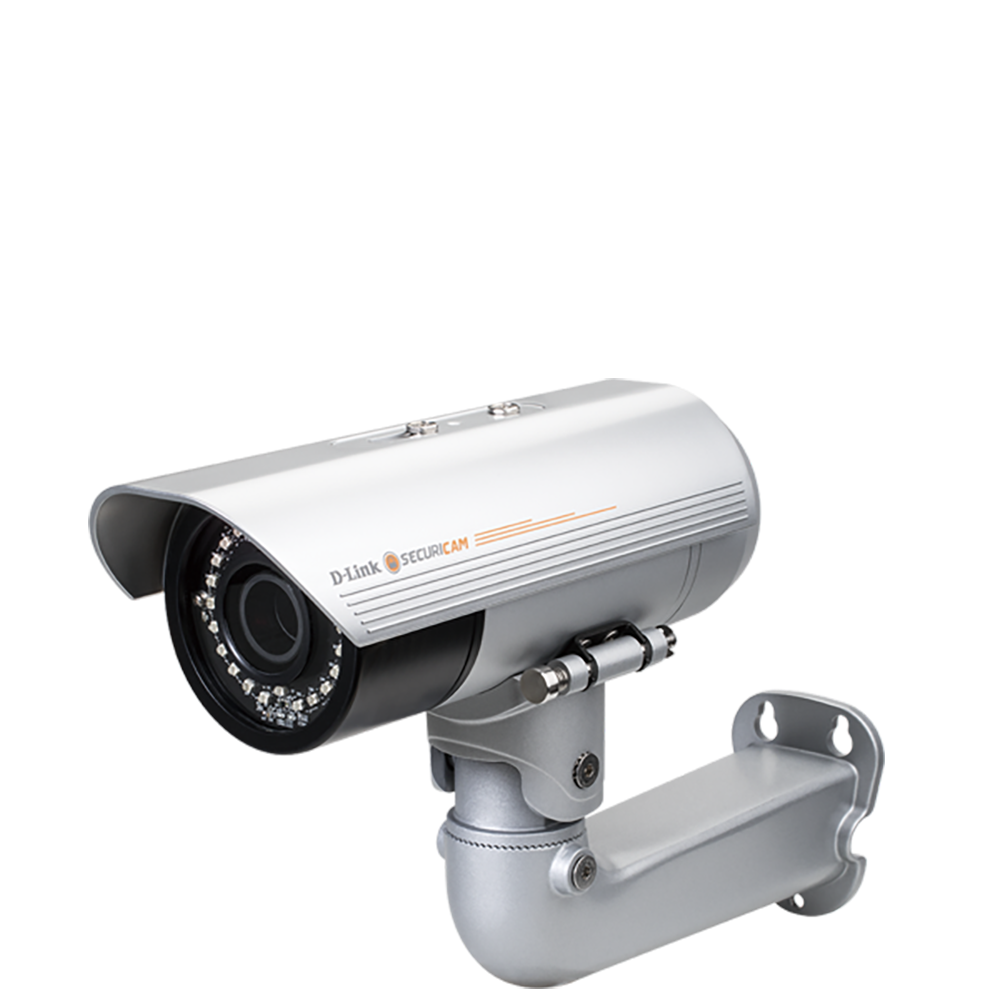

5MP Day & Night Outdoor Network Camera
DCS-7517
The D-Link DCS-7517 5 Megapixel Day & Night Outdoor Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high resolution 1/2.9” 5 megapixel sensor with digital WDR image enhancement to deliver balanced video in varying lighting conditions. With 2560x1920 resolution, the DCS-7517 captures more detail in areas such as license plates, faces and currency. The rugged design makes this camera ideal for deployment in a wide variety of surveillance applications.
.png)
Features
 |
Full HD 5MP Video
Crisp, clear recording and playback so you never have to wonder
|
 |
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancemen
|
 |
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
|
 |
Onboard SD Recording
Record snapshots and video to a microSD card without requiring a PC or network storage device
|
 |
Night Vision
IR LEDs guarantee bright & clear images, even in total darkness
|
 |
H.265 Video Compression
High Efficiency Video Coding support
|
 |
Varifocal Lens
Set the camera's field of view to your preference by adjusting the varifocal lens
|
 |
Motorised Lens
Adjust camera's focus and field of view remotely
|
 |
Weatherproof
Durable IP68 rated housing for surveillance in any weather
|
|
|
|

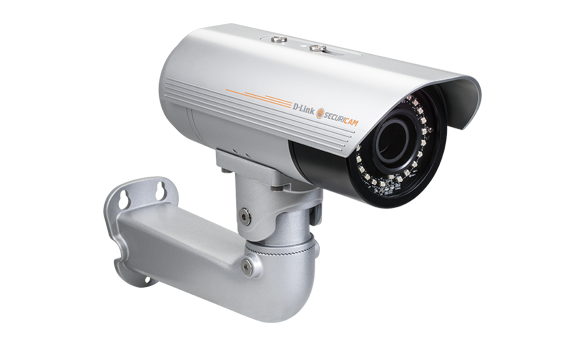

Built for the Outdoors
Specifcally designed for outdoor environments, the DCS-7517 is IP68 certifed – one of the toughest Ingress Protection (IP) ratings that is given to products tested to protect against dust and long-term water immersion. A sunshield provides added protection against the elements while blocking out glare, and various mounting options gives installers maximum flexibility for any location. Most importantly, support for Power over Ethernet (PoE) provides power and network connectivity via a single cable – making the DCS-7517 a truly versatile solution that can be used in a wide range of applications.
Continuous Monitoring

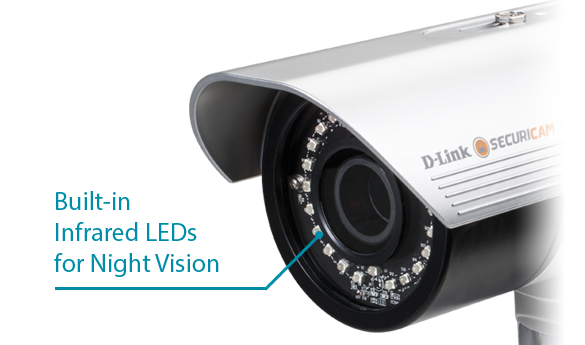

In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-7517 also has built-in IR LED illuminators with a 30 meter range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day. To maximize bandwidth efficiency and improve image quality, the DCS-7517 provides real-time video compression using the H.265, H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.
PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-7517 has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
Robust Management Software
The DCS-7517 5 Megapixel Day & Night Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 64 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
HIGHLIGHTS
- 5 Megapixel, up to 2560x1920 resolution
- IP68 weatherproof certified housing
- Built-in IR LED illumination up to 30m
- Motorised vari-focal lens with remote zoom and focus
- Wide Dynamic Range image enhancement
- Built-in 802.3af PoE
- Wall mount bracket included
- ONVIF compliant
| Housing Type : | Bullet |
| Image Sensor : | 1/2.9" Progressive CMOS |
| Max. Video Resolution : | 2560 x 1920 @ 30fps |
| Megapixels : | 5 MP |
| Memory Card Slot : | Micro SD |
| Night Vision : | Yes |
| Night Vision Range : | 30m |
| ONVIF Compliant : | Yes |
| Vandal-proof : | No |
| Video Compression : | MJPEG|H.264|H.265 |
| Design : | Outdoor|Night Vision|PoE |
| Max Resolution : | Full HD + |
| Camera Type : | Bullet |
| Email Notification : | Yes |
| Horizontal Field of View : | 24 - 75 degrees |
| Image Enhancement : | 3D Filter|WDR|BLC|AES|AGC|AWB |
| Indoor / Outdoor : | Outdoor |
| Lens Type : | Motorised Varifocal |
| Lens Focal Length : | 2.8 - 12mm |
| Power : | PoE, Power Supply |
| Optical Zoom : | 4x |
| Dimensions (Size) : | 249 x 100 x 317 mm |
| Motion Detection : | Yes |
| Motorised Pan / Tilt : | No |
| Warranty : | Limited Lifetime |
