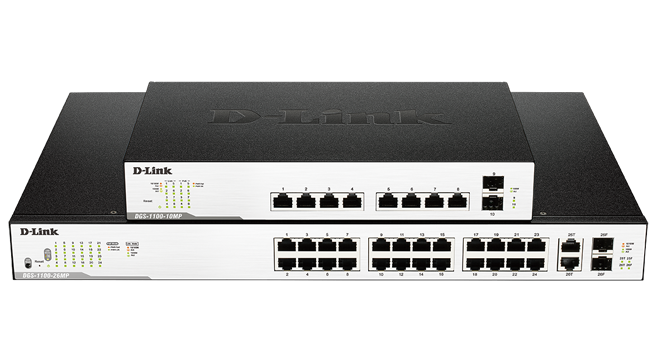

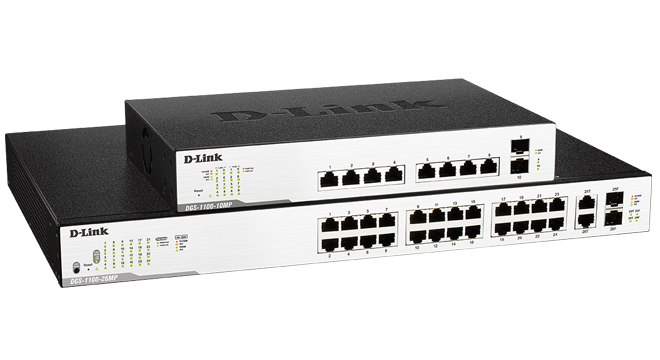

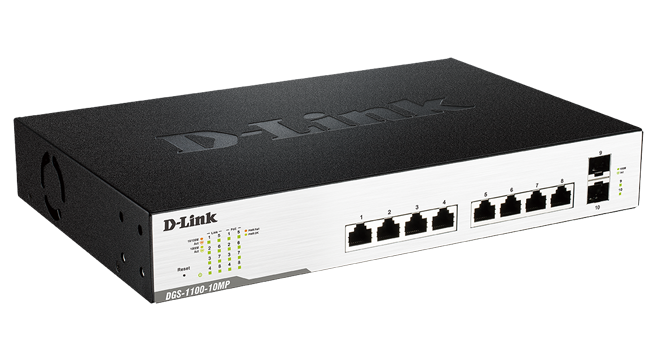

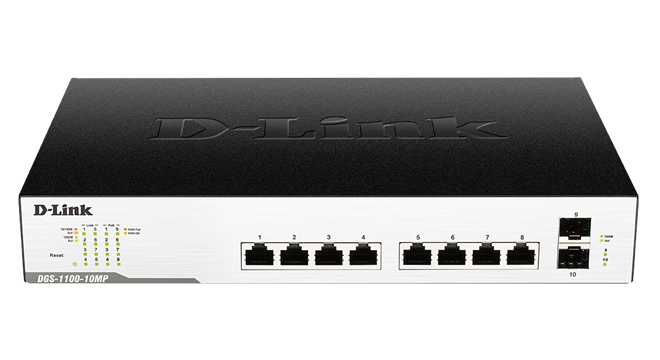

The DGS-1100 MP Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. The DGS-1100 MP Series provides support for Power over Ethernet (PoE), reducing deployment time for IP cameras, VoIP phones, and access points. The switches support IEEE 802.3af and 802.3at, providing up to 30 watts per port. Extended PoE budget, as a common requirement for outdoor and PTZ cameras, an automatic Surveillance VLAN, video traffic prioritisation and 6 kV surge protection make the DGS-1100 MP Series ideal for IP surveillance deployments.
The DGS-1100 MP Series provides support for Power over Ethernet (PoE), reducing deployment time for IP cameras, VoIP phones, and access points. The DGS-1100 MP Series support IEEE 802.3af and 802.3at PoE standards, providing up to 30 watts per port. This, combined with high power budget of 130 Watts, ensure all of your critical surveillance infrastructure can be powered from a single switch.
A redesigned Surveillance interface makes surveillance features more accessible than ever. The choice between Standard and Surveillance modes can be made during switch set up, allowing the user to choose the interface that best suits their requirements. A network overview shows which devices are connected to which ports, and ONVIF device support allows the switch to recognize both D-Link and 3rd party IP cameras and Network Video Recorders (NVRs). With monitoring, management, and troubleshooting tools built into a single interface, the DGS-1100 MP Series provides everything you need to manage your surveillance network.
The DGS-1100 MP Series supports the automatic Surveillance VLAN feature. This automatically detects surveillance devices and puts them into the Surveillance VLAN, segmenting their traffic from the rest of the network. The ensures security of the data, but also gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware and reducing maintenance costs.
The DGS-1100 MP Series features 6 kV surge protection on all PoE ports to help prevent damage to the network caused by power surges and lightning strikes. Faulty electrical cabling, faulty network cabling, and lightning strikes can cause damage to the switch and connected devices. In-built surge protection of up to 6 kV can limit the damage to the switch from both indoor and outdoor devices and network connections. This increases network reliability, reduces repair costs and removes the need for replacement hardware in the event of an electrical surge or lightning strike.
The DGS-1100 MP Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops in the network, where multiple devices have been connected to each other and there is a forwarding loop. The switch will identify the port causing the loop and shut the affected port down to avoid network instability. Cable Diagnostics can be used to remotely test the quality of copper cables, recognize the cable type, and detect cable errors.
|Static Routing :||No|
|Types of ports :||Gigabit Ports|

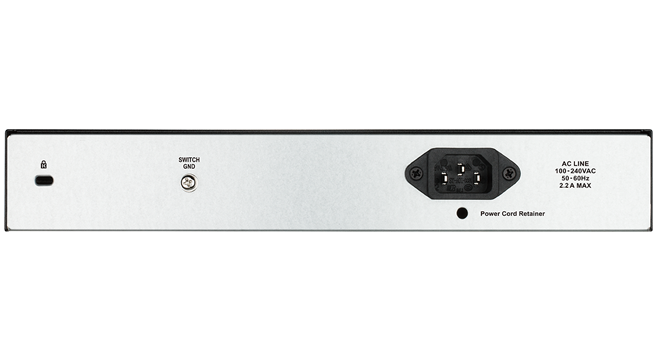

|Built-in PSU :||Yes|
|Switch Series :||DGS-1100 Series|
|Number of Ports :||5 - 16|
|PoE Type Required :||PoE|PoE+|Extended PoE Budget|
|Type of Port Required :||Gigabit Copper|
|High Speed Stacking :||No|
|Switch Type :||Layer 2|
|Cable Diagnostics :||Yes|
|Command Line Interface :||No|
|DHCP Server Screening :||Yes|
|Dimensions (Size) :||358 x 329 x 102 mm|
|Energy Saving Technology :||EEE Compliant|D-Link Green|
|IGMP Snooping :||Yes|
|Jumbo Frame :||9216 bytes|
|Link Aggregation :||Yes|
|PoE Budget :||130 Watts|
|PoE ports :||8 Ports|
|19" Rack Mountable :||Yes|
|SFP ports :||2 Ports|
|Spanning Tree Protocol :||Yes|
|Surveillance VLAN :||Yes|
|Switching Capacity :||20 Gbps|
|1000Base-T ports :||8 Ports|
|VLAN :||128 Groups|
|Voice VLAN :||Yes|
|Web-based GUI :||Yes|
