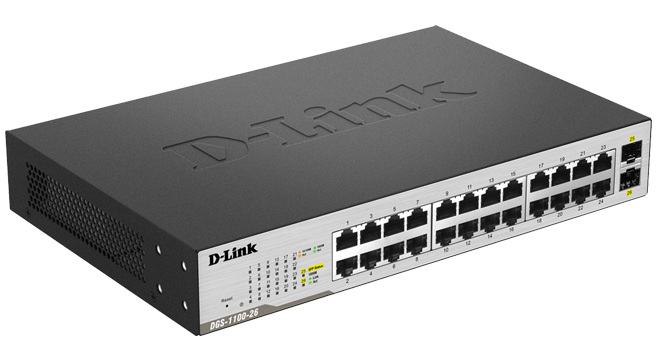

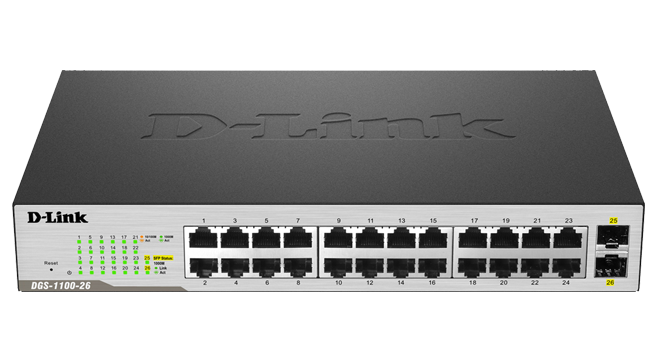

D-Link’s DGS-1100-26 is the newest addition to EasySmart Switches featuring D-Link Green Technology. The DGS-1100-26 offers 24 10/100/1000 Mbps ports and 2 SFP ports for fibre optic connectivity. It comes in a compact 11” desktop enclosure but can be mounted in a standard 19" rack with supplied brackets. Compliant with IEEE802.3az Energy Efficient Ethernet, this switch consumes less power during idle periods. This switch also implements the D-Link Green features that can detect link status and cable length and adjust power usage accordingly. Switch management can be performed through a web management interface or through the SmartConsole Utility. The DGS-1100-26 also supports Layer 2 features such as IGMP snooping to optimize performance for multicast applications. A fanless design allows for quieter operation and provides a longer product life. The DGS-1100-26 provides an affordable solution for Small and Medium Business, and for communities without IT staff. They are also suitable for enterprise deployment, such as in branch offices that require simple network management.
Surveillance VLAN and Bandwidth Control
The DGS-1100-26 supports Surveillance VLAN, which is best suited for video surveillance deployment. Surveillance VLAN is a new, industry leading technology that consolidates data and surveillance video transmission through a single DGS-1100 switch, thus sparing businesses the expense of dedicated hardware and facilities. Surveillance VLAN also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might have high priority.
D-Link Green/Power Saving Performance
Compliant with IEEE802.3az Energy Efficient Ethernet, this switch consumes less energy by cutting down on power consumption when the traffic volume is low. By deploying EEE devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps in automatically saving energy. This switch can automatically detect the length of the connected cables and can adjust power usage for shorter cable connections of up to 20 meters. In addition, this switch monitors link status of every port and drastically reduces power consumption when a port is without a link.
Easy to deploy
The DGS-1100 EasySmart Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole allows customers to discover multiple D-Link Smart and Easy Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.
Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and also determine the type of cable error. In addition, Static MAC can disable Auto Learning on selected ports and can set static MAC addresses for designated ports, helping administrators limit network access to authorized devices only.
|Switch Type :||Layer 2|
|Type of Port Required :||Gigabit Copper|
|Number of Ports :||24 - 28|
|PoE Type Required :||None|
|High Speed Stacking :||No|
|1000Base-T ports :||24 Ports|
|SFP ports :||2 Ports|
|Switching Capacity :||52 Gbps|
|Spanning Tree Protocol :||Yes|
|Link Aggregation :||Yes|
|VLAN :||128 Groups|
|Surveillance VLAN :||Yes|
|Jumbo Frame :||9216 bytes|
|Voice VLAN :||Yes|
|IGMP Snooping :||Yes|
|Cable Diagnostics :||Yes|
|Energy Saving Technology :||EEE Compliant|D-Link Green|
|19" Rack Mountable :||Yes|

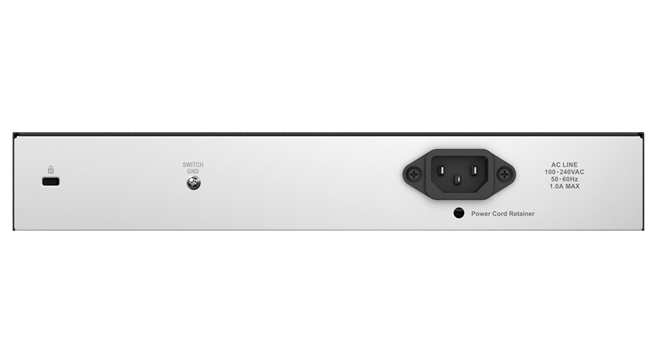

|Built-in PSU :||Yes|
|Dimensions (Size) :||35.6 x 25.6 x 9.7 cm|
|Web-based GUI :||Yes|
|Command Line Interface :||No|
|Types of ports :||Gigabit Ports|
|Static Routing :||No|
