The DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches are equipped with 8 PoE-capable 10/100/1000BASE-T ports (PoE models), 2 10/100/1000BASE-T ports, and 2 SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G Series furthermore integrate advanced management and security functions to provide a complete solution.
Easy to manage with user friendly Web-based management and industry-standard CLI.
Gigabit Connectivity with PoE and SFP
Designed with 10 x Gigabit ports (8 PoE), and 2 x SFPs slot to suit a range of network layouts.
With its 120 W PoE power budget, it’s been designed to supply data and PoE power.
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Rapid ring failover recovery time of < 20ms.
High-capacity 6 kV surge protection on all copper ports.
Certifications for vibration, shock, free-fall, and electromagnetic compatibility.
Withstands Extreme Temperatures
Operates in harsh environments with temperatures from -40°C to +75°C.
The tough housing has been created to keep your network protected and reliably rugged.
With no moving parts inside to reduce downtime and maintenance call outs.
Small but mighty. To make the most of cabinet space, it measures: 210 x 171 x 53 mm.
The DIS-200G Series switches are housed in a highly resistant metal casing to protect the switches from harsh environments. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-200G Series while also being able to operate in a wider temperature range of up to 75 °C.
For increased ﬂexibility, the DIS-200G Series can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack. Additionally, the DIS-200G Series features 6 kV surge protection to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes.

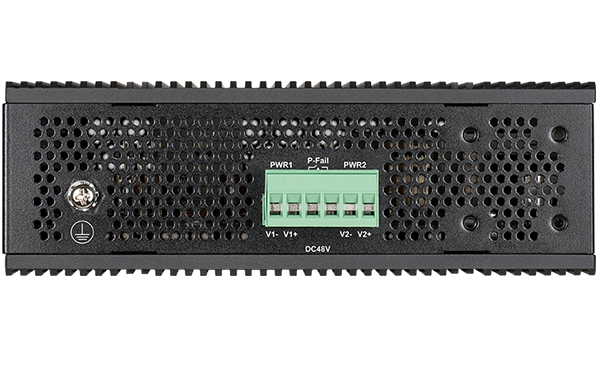

The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.
The DIS-200G Series supports the Auto Surveillance VLAN feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting their traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.
The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the aﬀected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
The DIS-200G-12PSW is a PoE-ready switch with a total PoE budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. This eﬀectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
|PoE Budget :
|Switching Capacity :
|DIN Rail Mountable :
|Metal Housing :
|MAC Address Table Size :
|Management Options :
|PoE Type Required :
|PoE Ports :
|PoE+ (802.3at) Supported :
|Power Input :
|48V DC terminal block dual; 54V DC 4-pin DIN single
|SFP Ports :
|Operating Temperature :
|From -40° to 75°C
|1000BASE-T Ports :
|Switch Series :
|DIS Industrial Series
|Surge Protection :
|6 kV Surge Protection
